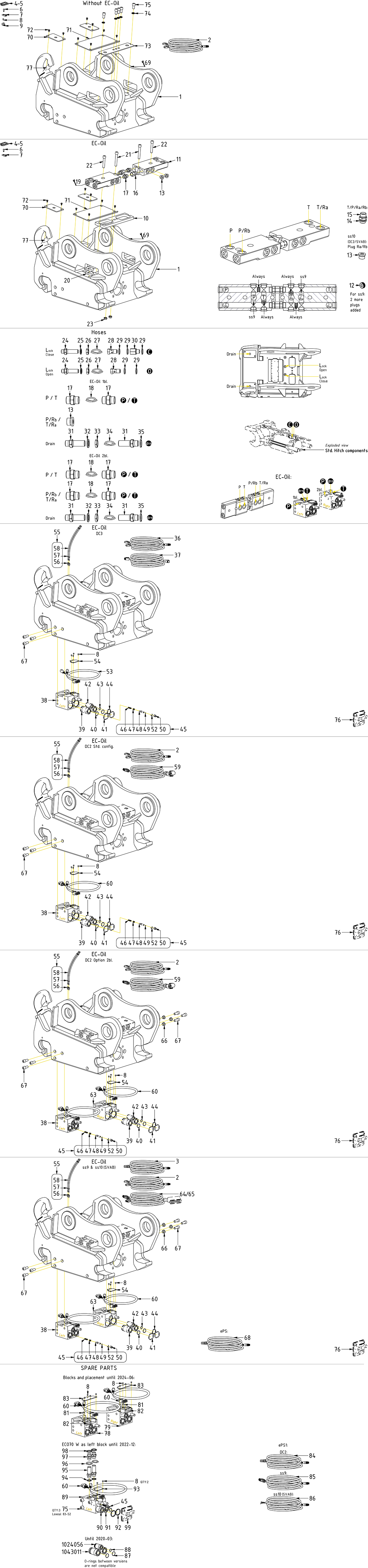

QS80

Interact to see more

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Hose

Article no: 7001373

Position34

Quantity in drawing1

JPY7,400

excl. VAT

Out of stock

Hose

Article no: 7001373

QTY: 2 for 2bl.

JPY7,400

Out of stock

Spacer QS80

Article no: 1051456

Position20

Quantity in drawing4

JPY1,700

excl. VAT

Out of stock

Spacer QS80

Article no: 1051456

Use if required

JPY1,700

Out of stock

Bushing 20/16-ECO right QS80

Article no: 1048746

Position66

Quantity in drawing3

JPY3,100

excl. VAT

Out of stock

Bushing 20/16-ECO right QS80

Article no: 1048746

JPY3,100

Out of stock

Block ECO70 W-quick hitch -with dowel pin

Article no: 1042478

Position89

Quantity in drawing1

JPY183,600

excl. VAT

Out of stock

Block ECO70 W-quick hitch -with dowel pin

Article no: 1042478

JPY183,600

Out of stock

Unit cable 3rd PTY ss9-2 ECO W QS45-QS80-3m

Article no: 1047113

Position85

Quantity in drawing1

JPY18,400

excl. VAT

Out of stock

Unit cable 3rd PTY ss9-2 ECO W QS45-QS80-3m

Article no: 1047113

Attach to Right 12P

JPY18,400

Out of stock

Adapter 7013725251

Article no: 7000946

Position16

Quantity in drawing2

JPY12,300

excl. VAT

Out of stock

Adapter 7013725251

Article no: 7000946

JPY12,300

Out of stock

Cover plate QS80

Article no: 1050955

Position70

Quantity in drawing2

JPY8,000

excl. VAT

Out of stock

Cover plate QS80

Article no: 1050955

JPY8,000

Out of stock

Unit cable 3rd PTY DC2/DC3 ECO W QS/S45-QS/S80-3m

Article no: 8002477

Position84

Quantity in drawing1

JPY27,500

excl. VAT

Few in stock (2)

Unit cable 3rd PTY DC2/DC3 ECO W QS/S45-QS/S80-3m

Article no: 8002477

Attach to 6P (DC2 ePS1) NB! Only compatible with 8002459

JPY27,500

Few in stock (2)

Cover plate QS80-without distribution block

Article no: 1051541

Position73

Quantity in drawing1

JPY7,400

excl. VAT

Out of stock

Cover plate QS80-without distribution block

Article no: 1051541

JPY7,400

Out of stock

Adapter 136-16-16

Article no: 710127

Position15

Quantity in drawing2

JPY3,100

excl. VAT

Few in stock (4)

Adapter 136-16-16

Article no: 710127

QTY: 4 for ss9

JPY3,100

Few in stock (4)

Adapter 135-12-16 - 3/4"x1"

Article no: 7000723

Position97

Quantity in drawing2

JPY4,800

excl. VAT

Out of stock

Adapter 135-12-16 - 3/4"x1"

Article no: 7000723

JPY4,800

Out of stock

Spacer Plate QS80 Quick Hitch

Article no: 1047086

Position10

Quantity in drawing1

JPY24,400

excl. VAT

Out of stock

Spacer Plate QS80 Quick Hitch

Article no: 1047086

JPY24,400

Out of stock

Adapter XGE 25-SR-ED

Article no: 7000947

Position17

Quantity in drawing6

JPY5,100

excl. VAT

Out of stock

Adapter XGE 25-SR-ED

Article no: 7000947

QTY: 10 for EC-Oil 2bl.

JPY5,100

Out of stock

Hose - 1" ECO80 Quick Hitch

Article no: 7000882

Position18

Quantity in drawing2

JPY32,700

excl. VAT

Out of stock

Hose - 1" ECO80 Quick Hitch

Article no: 7000882

QTY: 4 for 2bl.

JPY32,700

Out of stock

Cover QS80-V2

Article no: 1050471

Position71

Quantity in drawing1

JPY8,000

excl. VAT

Out of stock

Cover QS80-V2

Article no: 1050471

JPY8,000

Out of stock

Pipe Plug DIN 906 3/4"

Article no: 7000261

Position12

Quantity in drawing4

JPY600

excl. VAT

Out of stock

Pipe Plug DIN 906 3/4"

Article no: 7000261

Loxeal 58-12. QTY: 6 for ss9

JPY600

Out of stock

Hose

Article no: 7000943

Position27

Quantity in drawing2

JPY6,000

excl. VAT

Out of stock

Hose

Article no: 7000943

JPY6,000

Out of stock

Seal washer GBR16 1"

Article no: 710707

Position14

Quantity in drawing2

JPY700

excl. VAT

In stock

Seal washer GBR16 1"

Article no: 710707

QTY: 4 for ss9

JPY700

In stock

Block ECO80 W-quick hitch -3hy 1cl-V3

Article no: 1074034

Position38

Quantity in drawing1

JPY612,700

excl. VAT

Out of stock

Block ECO80 W-quick hitch -3hy 1cl-V3

Article no: 1074034

(POS.39, 41-42, 44-45 incl.)

JPY612,700

Out of stock

Coupling ECO 1" female V3

Article no: 1056060

Position39

Quantity in drawing2

JPY71,300

excl. VAT

Few in stock (4)

Coupling ECO 1" female V3

Article no: 1056060

Torque: 60Nm. (POS.40 incl.)

JPY71,300

Few in stock (4)

Cover plate Power plug-ECO80 W-quick hitch

Article no: 1045175

Position83

Quantity in drawing1

JPY4,300

excl. VAT

Out of stock

Cover plate Power plug-ECO80 W-quick hitch

Article no: 1045175

JPY4,300

Out of stock

Block ECO80 W-quick hitch -with dowel pins

Article no: 1050478

Position80

Quantity in drawing1

JPY245,400

excl. VAT

Out of stock

Block ECO80 W-quick hitch -with dowel pins

Article no: 1050478

JPY245,400

Out of stock

Grease piston for ECO block

Article no: 1024111

Position48

Quantity in drawing1

JPY21,900

excl. VAT

Out of stock

Grease piston for ECO block

Article no: 1024111

JPY21,900

Out of stock

Nut greasepiston V2

Article no: 1047688

Position50

Quantity in drawing1

JPY9,900

excl. VAT

Out of stock

Nut greasepiston V2

Article no: 1047688

Wrap with thread sealing tape

JPY9,900

Out of stock

Holder Deutsch DT/DTM connector

Article no: 810662

Position7

Quantity in drawing6

JPY800

excl. VAT

Few in stock (2)

Holder Deutsch DT/DTM connector

Article no: 810662

JPY800

Few in stock (2)

Protection Plug DTM06-6S

Article no: 8000620

Position61

Quantity in drawing1

JPY3,500

excl. VAT

Out of stock

Protection Plug DTM06-6S

Article no: 8000620

QTY depends on config.

JPY3,500

Out of stock

Power plug ECO W-male-housing

Article no: 1041814

Position82

Quantity in drawing1

JPY1,500

excl. VAT

Few in stock (2)

Power plug ECO W-male-housing

Article no: 1041814

JPY1,500

Few in stock (2)

Pipe Plug DIN 906 M16x1,5

Article no: 711529

Position81

Quantity in drawing1

JPY400

excl. VAT

In stock

Pipe Plug DIN 906 M16x1,5

Article no: 711529

JPY400

In stock

Hose kit - Machine hitch - Lubrication ECO W

Article no: 7000514

Position55

Quantity in drawing1

JPY29,600

excl. VAT

Out of stock

Hose kit - Machine hitch - Lubrication ECO W

Article no: 7000514

(POS.56-58 incl.)

JPY29,600

Out of stock

Protection Plug DTM06-12SA

Article no: 8002058

Position62

Quantity in drawing1

JPY3,500

excl. VAT

Out of stock

Protection Plug DTM06-12SA

Article no: 8002058

QTY depends on config.

JPY3,500

Out of stock

Strain relief plate ZL87 6x

Article no: 8000704

Position5

Quantity in drawing1

JPY4,500

excl. VAT

Few in stock (1)

Strain relief plate ZL87 6x

Article no: 8000704

JPY4,500

Few in stock (1)

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

Position6

Quantity in drawing10

JPY100

excl. VAT

Out of stock

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

JPY100

Out of stock

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Position51

Quantity in drawing1

JPY100

excl. VAT

In stock

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Located inside nut

JPY100

In stock

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

Position47

Quantity in drawing2

JPY1,600

excl. VAT

Few in stock (2)

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

(O-ring incl. with seal ring)

JPY1,600

Few in stock (2)

Unit cable ss10 ECO W QS60-QS80-3,5m

Article no: 1029500

Position65

Quantity in drawing1

JPY79,900

excl. VAT

Out of stock

Unit cable ss10 ECO W QS60-QS80-3,5m

Article no: 1029500

Attach to both 12P

JPY79,900

Out of stock

O-ring 14x2 70 shore

Article no: 7000767

Position52

Quantity in drawing1

JPY100

excl. VAT

In stock

O-ring 14x2 70 shore

Article no: 7000767

JPY100

In stock

Spring 6058

Article no: 1024113

Position46

Quantity in drawing1

JPY5,100

excl. VAT

Out of stock

Spring 6058

Article no: 1024113

JPY5,100

Out of stock

Unit cable ss9-2 ECO W (Q)S60-(Q)S80-3,5m

Article no: 1036846

Position64

Quantity in drawing1

JPY61,900

excl. VAT

Out of stock

Unit cable ss9-2 ECO W (Q)S60-(Q)S80-3,5m

Article no: 1036846

Attach to Left 12P

JPY61,900

Out of stock

Hose - 3m - For hose kit - lubricant ECO

Article no: 790176

Position58

Quantity in drawing1

JPY12,000

excl. VAT

Out of stock

Hose - 3m - For hose kit - lubricant ECO

Article no: 790176

JPY12,000

Out of stock

Cover plate Power plug-ECO60/70 W-quick hitch

Article no: 1041139

Position93

Quantity in drawing1

JPY2,000

excl. VAT

Few in stock (2)

Cover plate Power plug-ECO60/70 W-quick hitch

Article no: 1041139

JPY2,000

Few in stock (2)

Strain relief plate ZL60 4x

Article no: 8000703

Position4

Quantity in drawing1

JPY4,500

excl. VAT

Few in stock (1)

Strain relief plate ZL60 4x

Article no: 8000703

JPY4,500

Few in stock (1)

Plug VSTIR1ED 1"

Article no: 7000945

Position13

Quantity in drawing14

JPY2,600

excl. VAT

In stock

Plug VSTIR1ED 1"

Article no: 7000945

QTY depends on config. (12-16)

JPY2,600

In stock

Screw MC6S 16x35 12.9 ZFSHL ISO4762

Article no: 6000410

Position67

Quantity in drawing3

JPY500

excl. VAT

In stock

Screw MC6S 16x35 12.9 ZFSHL ISO4762

Article no: 6000410

Loxeal 83-52

JPY500

In stock

Power plug 12P ECO70/80 W S-QH - DC3

Article no: 8002100

Position53

Quantity in drawing1

JPY34,400

excl. VAT

Few in stock (3)

Power plug 12P ECO70/80 W S-QH - DC3

Article no: 8002100

Cable gland torque: 6Nm

JPY34,400

Few in stock (3)

Protection-ECO80 W-Quick hitch

Article no: 1050611

Position76

Quantity in drawing1

JPY23,600

excl. VAT

Few in stock (2)

Protection-ECO80 W-Quick hitch

Article no: 1050611

Part of make up

JPY23,600

Few in stock (2)

Connection block QS80 Quick Hitch ECO feed V2

Article no: 1051019

Position11

Quantity in drawing2

JPY163,600

excl. VAT

Out of stock

Connection block QS80 Quick Hitch ECO feed V2

Article no: 1051019

JPY163,600

Out of stock

Hose

Article no: 7000944

Position96

Quantity in drawing2

JPY32,400

excl. VAT

Out of stock

Hose

Article no: 7000944

JPY32,400

Out of stock

Unit cable 3rd PTY ss10 ECO W QS45-QS80-3m

Article no: 1047111

Position86

Quantity in drawing1

JPY13,300

excl. VAT

Out of stock

Unit cable 3rd PTY ss10 ECO W QS45-QS80-3m

Article no: 1047111

L.Bl: WH>11. R.Bl: BR>1, BL>2, GR>11

JPY13,300

Out of stock

Cover plate ECO60/70/80 W - QH

Article no: 1074691

Position54

Quantity in drawing1

JPY800

excl. VAT

Out of stock

Cover plate ECO60/70/80 W - QH

Article no: 1074691

JPY800

Out of stock

Screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Ribbed flange

Article no: 6000120

Position72

Quantity in drawing8

JPY100

excl. VAT

In stock

Screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Ribbed flange

Article no: 6000120

JPY100

In stock

Unit cable ePS ss0-ss10 ECO W QS45-QS80-3m

Article no: 1042246

Position68

Quantity in drawing1

JPY32,400

excl. VAT

Out of stock

Unit cable ePS ss0-ss10 ECO W QS45-QS80-3m

Article no: 1042246

Attach to Right 6P

JPY32,400

Out of stock

Adapter bulkhead extended 1260-04-40

Article no: 710261

Position24

Quantity in drawing2

JPY2,200

excl. VAT

Few in stock (5)

Adapter bulkhead extended 1260-04-40

Article no: 710261

JPY2,200

Few in stock (5)

Dirt protection block/coupling ECO 1"

Article no: 1045166

Position41

Quantity in drawing2

JPY4,300

excl. VAT

Few in stock (4)

Dirt protection block/coupling ECO 1"

Article no: 1045166

JPY4,300

Few in stock (4)

Screw MC6S 16x30 12.9 ZFSHL ISO4762

Article no: 6000201

Position75

Quantity in drawing5

JPY500

excl. VAT

In stock

Screw MC6S 16x30 12.9 ZFSHL ISO4762

Article no: 6000201

JPY500

In stock

Rubber Steel Clamp Ø6

Article no: 6000027

Position9

Quantity in drawing1

JPY700

excl. VAT

In stock

Rubber Steel Clamp Ø6

Article no: 6000027

JPY700

In stock

Seal washer GBR12 3/4"

Article no: 710706

Position94

Quantity in drawing2

JPY200

excl. VAT

In stock

Seal washer GBR12 3/4"

Article no: 710706

JPY200

In stock

Protection-ECO70 W-Quick hitch

Article no: 1047858

Position99

Quantity in drawing1

JPY13,100

excl. VAT

Few in stock (4)

Protection-ECO70 W-Quick hitch

Article no: 1047858

Part of make up

JPY13,100

Few in stock (4)

Banjo bolt 4451-04

Article no: 710271

Position28

Quantity in drawing2

JPY500

excl. VAT

In stock

Banjo bolt 4451-04

Article no: 710271

JPY500

In stock

O-ring 29,87x1,78 PU/90 - ECO80 1"

Article no: 1043083

Position87

Quantity in drawing2

JPY2,600

excl. VAT

Out of stock

O-ring 29,87x1,78 PU/90 - ECO80 1"

Article no: 1043083

Used until 2020-03

JPY2,600

Out of stock

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

Position49

Quantity in drawing1

JPY100

excl. VAT

In stock

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

JPY100

In stock

Locktab kit Pejo RC-208-10-15

Article no: 405177

Position77

Quantity in drawing1

JPY14,800

excl. VAT

Out of stock

Locktab kit Pejo RC-208-10-15

Article no: 405177

Lifting hook spare part

JPY14,800

Out of stock

Flat seal for ECO 1" V3

Article no: 1056072

Position40

Quantity in drawing2

JPY2,600

excl. VAT

In stock

Flat seal for ECO 1" V3

Article no: 1056072

JPY2,600

In stock

Adapter cable M12 8P-DTM 3S-QLM 3,4m

Article no: 8000863

Position36

Quantity in drawing1

JPY25,900

excl. VAT

Few in stock (3)

Adapter cable M12 8P-DTM 3S-QLM 3,4m

Article no: 8000863

Attach to QS sensors

JPY25,900

Few in stock (3)

Central lubrication kit ECO W V2

Article no: 1050794

Position45

Quantity in drawing1

JPY45,400

excl. VAT

Few in stock (2)

Central lubrication kit ECO W V2

Article no: 1050794

(POS.46-52 incl.)

JPY45,400

Few in stock (2)

Adapter bulkhead extended 1260-08-45

Article no: 710263

Position31

Quantity in drawing2

JPY3,100

excl. VAT

In stock

Adapter bulkhead extended 1260-08-45

Article no: 710263

QTY: 4 for 2bl.

JPY3,100

In stock

Adapter 236-04-04

Article no: 1013885

Position30

Quantity in drawing1

JPY700

excl. VAT

Few in stock (1)

Adapter 236-04-04

Article no: 1013885

JPY700

Few in stock (1)

Adapter bulkhead extended 1260-12-57

Article no: 712227

Position95

Quantity in drawing2

JPY3,700

excl. VAT

Few in stock (4)

Adapter bulkhead extended 1260-12-57

Article no: 712227

JPY3,700

Few in stock (4)

Push-In coupling straight Ø6mm M8x1

Article no: 790185

Position56

Quantity in drawing2

JPY2,800

excl. VAT

Out of stock

Push-In coupling straight Ø6mm M8x1

Article no: 790185

JPY2,800

Out of stock

O-ring 17,17x1,78 PU/90 - ECO60 1/2"

Article no: 710913

Position88

Quantity in drawing1

JPY1,000

excl. VAT

In stock

O-ring 17,17x1,78 PU/90 - ECO60 1/2"

Article no: 710913

Used until 2020-03 Separate seal kit: 7000046

JPY1,000

In stock

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position3

Quantity in drawing1

JPY41,700

excl. VAT

Out of stock

Adapter cable M12 8P-DTM 6S

Article no: 842148

Attach to Left 6P

JPY41,700

Out of stock

Coupling ECO 1/2" female V3

Article no: 1054580

Position42

Quantity in drawing1

JPY35,500

excl. VAT

In stock

Coupling ECO 1/2" female V3

Article no: 1054580

Torque: 60Nm. (POS.43 incl.)

JPY35,500

In stock

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

Position8

Quantity in drawing1

JPY100

excl. VAT

In stock

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

QTY: 4 for ECO coverplate

JPY100

In stock

Coupling ECO 3/4" female V3

Article no: 1050579

Position90

Quantity in drawing2

JPY52,300

excl. VAT

In stock

Coupling ECO 3/4" female V3

Article no: 1050579

Torque: 60Nm. (POS.91 included)

JPY52,300

In stock

Adapter cable M12 8P-2xDTM 3S-QLM 4,5m

Article no: 842149

Position2

Quantity in drawing1

JPY41,700

excl. VAT

Few in stock (2)

Adapter cable M12 8P-2xDTM 3S-QLM 4,5m

Article no: 842149

Attach to QS sensors

JPY41,700

Few in stock (2)

Dirt protection block/coupling ECO 3/4"

Article no: 1028275

Position92

Quantity in drawing2

JPY2,200

excl. VAT

In stock

Dirt protection block/coupling ECO 3/4"

Article no: 1028275

JPY2,200

In stock

Tube sleeve straight Push-In-30mm

Article no: 790175

Position57

Quantity in drawing2

JPY1,200

excl. VAT

Out of stock

Tube sleeve straight Push-In-30mm

Article no: 790175

JPY1,200

Out of stock

Seal washer GBR08 1/2"

Article no: 710704

Position35

Quantity in drawing1

JPY200

excl. VAT

In stock

Seal washer GBR08 1/2"

Article no: 710704

QTY: 2 for 2bl.

JPY200

In stock

Screw MC6S 16x110 12.9 ZFSHL ISO4762

Article no: 6000253

Position21

Quantity in drawing2

JPY900

excl. VAT

In stock

Screw MC6S 16x110 12.9 ZFSHL ISO4762

Article no: 6000253

JPY900

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

Position26

Quantity in drawing2

JPY400

excl. VAT

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

JPY400

In stock

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position25

Quantity in drawing2

JPY600

excl. VAT

In stock

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

JPY600

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position29

Quantity in drawing5

JPY100

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

JPY100

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position74

Quantity in drawing5

JPY800

excl. VAT

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

JPY800

In stock

Flat seal for ECO 3/4" V3

Article no: 1050580

Position91

Quantity in drawing2

JPY800

excl. VAT

In stock

Flat seal for ECO 3/4" V3

Article no: 1050580

Replaces o-ring 1024735. O-rings between versions not compatible

JPY800

In stock

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position32

Quantity in drawing1

JPY1,200

excl. VAT

In stock

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

QTY: 2 for 2bl.

JPY1,200

In stock

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position22

Quantity in drawing2

JPY1,400

excl. VAT

In stock

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

JPY1,400

In stock

Dirt protection block/coupling ECO 1/2"

Article no: 1028229

Position44

Quantity in drawing2

JPY2,200

excl. VAT

In stock

Dirt protection block/coupling ECO 1/2"

Article no: 1028229

JPY2,200

In stock

Nut M6M M16 NYLOC 8. FZB (A2K) DIN 985 NV24

Article no: 610926

Position23

Quantity in drawing2

JPY100

excl. VAT

In stock

Nut M6M M16 NYLOC 8. FZB (A2K) DIN 985 NV24

Article no: 610926

JPY100

In stock

Flat seal for ECO 1/2" V3

Article no: 1050018

Position43

Quantity in drawing1

JPY600

excl. VAT

In stock

Flat seal for ECO 1/2" V3

Article no: 1050018

JPY600

In stock

Unit cable DC2 ECO W (Q)S60-(Q)S80-3,5m

Article no: 1048528

Position59

Quantity in drawing1

JPY48,100

excl. VAT

Few in stock (2)

Unit cable DC2 ECO W (Q)S60-(Q)S80-3,5m

Article no: 1048528

Attach to Left 12P

JPY48,100

Few in stock (2)

Power plug ECO60-80 W-quick hitch -DTM

Article no: 1042243

Position60

Quantity in drawing1

JPY26,400

excl. VAT

Few in stock (2)

Power plug ECO60-80 W-quick hitch -DTM

Article no: 1042243

Cable gland torque: 6Nm

JPY26,400

Few in stock (2)
