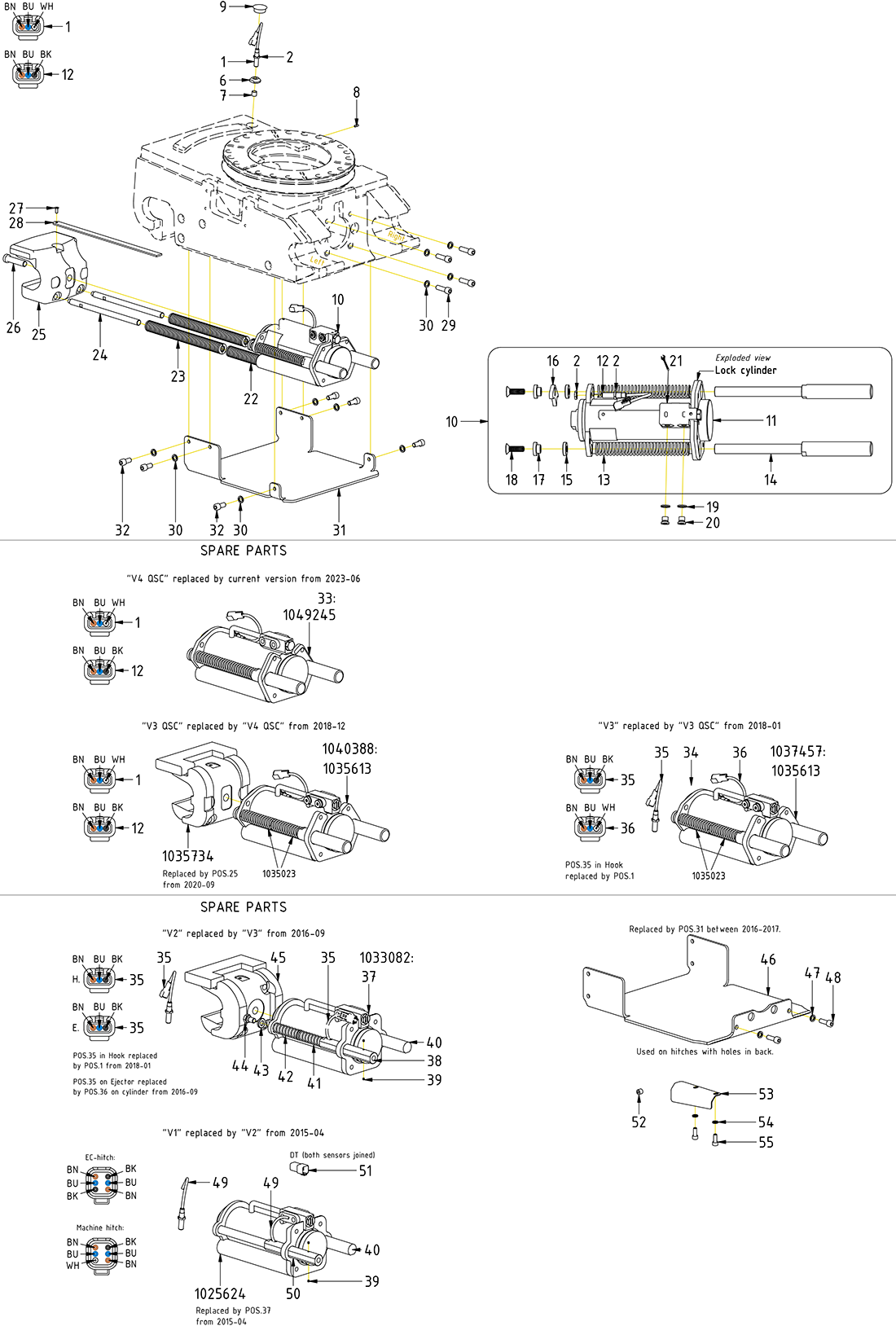

Std comp. QS70

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Washer TBRB 13x24x4 ISO4759

Article no: 611099

Position44

Quantity in drawing2

£0.80

excl. VAT

In stock

Washer TBRB 13x24x4 ISO4759

Article no: 611099

£0.80

In stock

Deutsch DT04-6P connector device

Article no: 820109

Position52

Quantity in drawing1

£26.30

excl. VAT

Out of stock

Deutsch DT04-6P connector device

Article no: 820109

Used until 2015-04

£26.30

Out of stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position49

Quantity in drawing2

£1.90

excl. VAT

In stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

£1.90

In stock

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position29

Quantity in drawing1

£0.80

excl. VAT

In stock

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

£0.80

In stock

Spring QS70 Ejectors - long (20x120)

Article no: 1025177

Position42

Quantity in drawing2

£16.80

excl. VAT

Few in stock (4)

Spring QS70 Ejectors - long (20x120)

Article no: 1025177

£16.80

Few in stock (4)

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Position12

Quantity in drawing1

£244.60

excl. VAT

In stock

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Mount 1mm from Sensor plate

£244.60

In stock

Ejector QS70 with sensor - DTM

Article no: 1029067

Position39

Quantity in drawing1

£427.10

excl. VAT

Out of stock

Ejector QS70 with sensor - DTM

Article no: 1029067

Replaced by POS.14 from 2016-09 (POS.36, 40 incl.)

£427.10

Out of stock

Protective sleeve Inductive sensor M12

Article no: 8000056

Position7

Quantity in drawing1

£0.80

excl. VAT

In stock

Protective sleeve Inductive sensor M12

Article no: 8000056

£0.80

In stock

Locking cylinder QS70 V4 Forged

Article no: 1058122

Position11

Quantity in drawing1

£1,853.00

excl. VAT

Out of stock

Locking cylinder QS70 V4 Forged

Article no: 1058122

£1,853.00

Out of stock

Spacer QS70

Article no: 1035752

Position15

Quantity in drawing2

£23.50

excl. VAT

In stock

Spacer QS70

Article no: 1035752

£23.50

In stock

Locking cylinder QS70 V4 Forged QSC pre-assembled

Article no: 1058123

Position10

Quantity in drawing1

£2,531.00

excl. VAT

Out of stock

Locking cylinder QS70 V4 Forged QSC pre-assembled

Article no: 1058123

(POS.11-18 incl.)

£2,531.00

Out of stock

Locking hook QSM70/QS70/S70 V2 cast

Article no: 1037431

Position25

Quantity in drawing1

£365.00

excl. VAT

Few in stock (2)

Locking hook QSM70/QS70/S70 V2 cast

Article no: 1037431

£365.00

Few in stock (2)

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Position30

Quantity in drawing4

£1.40

excl. VAT

Out of stock

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

£1.40

Out of stock

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

Position40

Quantity in drawing2

£0.80

excl. VAT

Out of stock

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

£0.80

Out of stock

Locking cylinder QS70 V4 pre-assembled-NOT QSC

Article no: 1050636

Position35

Quantity in drawing1

£2,549.00

excl. VAT

Out of stock

Locking cylinder QS70 V4 pre-assembled-NOT QSC

Article no: 1050636

Spare part use only

£2,549.00

Out of stock

Washer Starlock 6mm

Article no: 6000415

Position28

Quantity in drawing1

£0.80

excl. VAT

In stock

Washer Starlock 6mm

Article no: 6000415

£0.80

In stock

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Position1

Quantity in drawing1

£244.60

excl. VAT

In stock

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Mount just below surface edge

£244.60

In stock

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Position36

Quantity in drawing1

£244.60

excl. VAT

In stock

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Replaced 2018

£244.60

In stock

Screw MLC6S 16x70 10.9 DIN7984 untreated

Article no: 610720

Position26

Quantity in drawing1

£15.10

excl. VAT

In stock

Screw MLC6S 16x70 10.9 DIN7984 untreated

Article no: 610720

Loxeal 83-52. Torque 136Nm

£15.10

In stock

Locking hook QS70

Article no: 1024200

Position46

Quantity in drawing1

£1,402.00

excl. VAT

Out of stock

Locking hook QS70

Article no: 1024200

Replaced by 1035734 from 2016-09

£1,402.00

Out of stock

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position56

Quantity in drawing2

£1.30

excl. VAT

In stock

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Used until 2016-10

£1.30

In stock

Locking cylinder QS70 V2 pre-assembled 2017-05-22

Article no: 1028940

Position38

Quantity in drawing1

£1,929.00

excl. VAT

Out of stock

Locking cylinder QS70 V2 pre-assembled 2017-05-22

Article no: 1028940

Replaced by 1035613 from 2016-09

£1,929.00

Out of stock

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position9

Quantity in drawing1

£0.80

excl. VAT

In stock

Protection Plug ECO power plug & QS sensor

Article no: 8000068

£0.80

In stock

Sensor plate QS70

Article no: 1035751

Position16

Quantity in drawing1

£24.50

excl. VAT

In stock

Sensor plate QS70

Article no: 1035751

Assemble with slight play

£24.50

In stock

Screw M6S 12x20 8.8 FZB ISO4017

Article no: 610163

Position45

Quantity in drawing2

£0.80

excl. VAT

In stock

Screw M6S 12x20 8.8 FZB ISO4017

Article no: 610163

£0.80

In stock

Ejector QS70 NOT for sensor

Article no: 1024697

Position41

Quantity in drawing1

£629.40

excl. VAT

Few in stock (4)

Ejector QS70 NOT for sensor

Article no: 1024697

Replaced by POS.14 from 2016-09

£629.40

Few in stock (4)

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position6

Quantity in drawing1

£24.50

excl. VAT

In stock

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

£24.50

In stock

Ejector QS70 for sensor

Article no: 1024696

Position51

Quantity in drawing1

£298.20

excl. VAT

Out of stock

Ejector QS70 for sensor

Article no: 1024696

Replaced by POS.39 from 2015-04

£298.20

Out of stock

Spring QS70 Ejectors short - (20x85)

Article no: 1025857

Position43

Quantity in drawing2

£18.80

excl. VAT

Few in stock (4)

Spring QS70 Ejectors short - (20x85)

Article no: 1025857

£18.80

Few in stock (4)

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position31

Quantity in drawing10

£3.10

excl. VAT

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

QTY: 4 for EC-Oil

£3.10

In stock

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position8

Quantity in drawing1

£0.80

excl. VAT

In stock

Screw MS6SS 8x16 ISO4027

Article no: 610808

£0.80

In stock

Inductive sensor M12 IF6079

Article no: 810463

Position50

Quantity in drawing2

£161.80

excl. VAT

In stock

Inductive sensor M12 IF6079

Article no: 810463

Replaced by POS.36 from 2015-04

£161.80

In stock

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Position37

Quantity in drawing1

£244.60

excl. VAT

In stock

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Replaced by POS.12 from 2018-01

£244.60

In stock

Cover plate QS70/QSM70-without ECO-block V2

Article no: 1034902

Position32

Quantity in drawing1

£197.60

excl. VAT

Few in stock (5)

Cover plate QS70/QSM70-without ECO-block V2

Article no: 1034902

No cover plate for EC-Oil

£197.60

Few in stock (5)

Spring QS70/80 Ejectors - 21,8x210

Article no: 1049974

Position13

Quantity in drawing2

£8.70

excl. VAT

Few in stock (5)

Spring QS70/80 Ejectors - 21,8x210

Article no: 1049974

£8.70

Few in stock (5)

Spring QSM70/QS70/S70 locking hook - long (32x305)

Article no: 1025179

Position23

Quantity in drawing2

£96.00

excl. VAT

Few in stock (4)

Spring QSM70/QS70/S70 locking hook - long (32x305)

Article no: 1025179

£96.00

Few in stock (4)

Screw MF6S 12x40 10.9 FZB ISO10642

Article no: 610670

Position18

Quantity in drawing2

£2.40

excl. VAT

In stock

Screw MF6S 12x40 10.9 FZB ISO10642

Article no: 610670

Loxeal 83-52

£2.40

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position55

Quantity in drawing2

£1.80

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Used until 2016-10

£1.80

In stock

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position33

Quantity in drawing6

£1.30

excl. VAT

In stock

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

£1.30

In stock

Steering S70/QS70-80

Article no: 1024695

Position24

Quantity in drawing2

£131.70

excl. VAT

Few in stock (2)

Steering S70/QS70-80

Article no: 1024695

Loxeal 83-52

£131.70

Few in stock (2)

Spring QSM70/QS70/S70 locking hook - short (32x152)

Article no: 1025178

Position22

Quantity in drawing2

£45.20

excl. VAT

In stock

Spring QSM70/QS70/S70 locking hook - short (32x152)

Article no: 1025178

£45.20

In stock

Spacer M12 L15 countersunk

Article no: 1008243

Position17

Quantity in drawing2

£21.60

excl. VAT

In stock

Spacer M12 L15 countersunk

Article no: 1008243

£21.60

In stock

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position27

Quantity in drawing1

£16.90

excl. VAT

In stock

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit

£16.90

In stock

Ejector QS70-QS80

Article no: 1034935

Position14

Quantity in drawing2

£159.00

excl. VAT

Few in stock (5)

Ejector QS70-QS80

Article no: 1034935

£159.00

Few in stock (5)

Plug Din 908 1/4"

Article no: 711505

Position20

Quantity in drawing2

£2.40

excl. VAT

In stock

Plug Din 908 1/4"

Article no: 711505

£2.40

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position48

Quantity in drawing2

£1.90

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

£1.90

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position19

Quantity in drawing2

£0.80

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

£0.80

In stock
