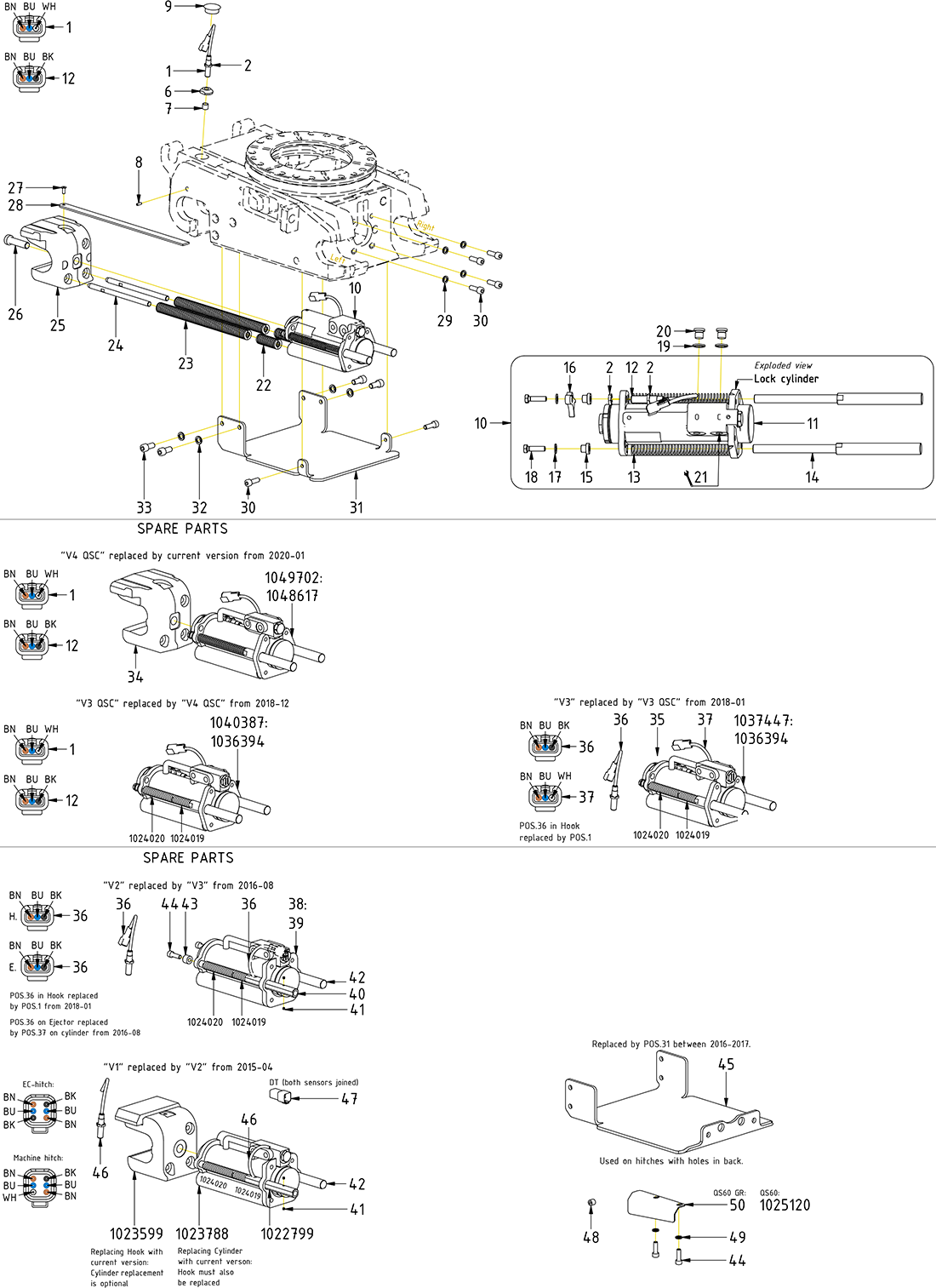

Std comp. QS60 / QSD60

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Cover plate QS60-without ECO-block

Article no: 1028105

Position46

Quantity in drawing1

£145.80

excl. VAT

Out of stock

Cover plate QS60-without ECO-block

Article no: 1028105

Replacd by POS.32. Note holes

£145.80

Out of stock

Spacer QS45-QS60

Article no: 1025462

Position44

Quantity in drawing2

£18.80

excl. VAT

In stock

Spacer QS45-QS60

Article no: 1025462

£18.80

In stock

Ejector QS60 for sensor

Article no: 1022799

Position41

Quantity in drawing1

£626.50

excl. VAT

Out of stock

Ejector QS60 for sensor

Article no: 1022799

Replaced by POS.14 from 2016-08 (POS.37, 42 incl.)

£626.50

Out of stock

Locking cylinder QS60 pre-assembled

Article no: 1033081

Position39

Quantity in drawing1

£2,596.00

excl. VAT

Out of stock

Locking cylinder QS60 pre-assembled

Article no: 1033081

Replaced by 1037447 from 2016-08 (POS.19-20, 40-41, 43-45 incl.)

£2,596.00

Out of stock

Ejector QS60 not for sensor

Article no: 1022930

Position43

Quantity in drawing1

£297.30

excl. VAT

In stock

Ejector QS60 not for sensor

Article no: 1022930

Replaced by POS.14 from 2016-08

£297.30

In stock

Locking cylinder QS60 V5 Forged pre-assembled-NOT QSC

Article no: 1083144

Position36

Quantity in drawing1

£1,543.00

excl. VAT

Out of stock

Locking cylinder QS60 V5 Forged pre-assembled-NOT QSC

Article no: 1083144

Spare part use only

£1,543.00

Out of stock

Locking hook QS60 cast

Article no: 1026154

Position35

Quantity in drawing1

£269.00

excl. VAT

Out of stock

Locking hook QS60 cast

Article no: 1026154

Replaced by POS.25 from 2020-01

£269.00

Out of stock

Cover plate QS60-without ECO-block V2

Article no: 1034517

Position32

Quantity in drawing1

£140.20

excl. VAT

In stock

Cover plate QS60-without ECO-block V2

Article no: 1034517

No cover plate for EC-Oil

£140.20

In stock

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

Position45

Quantity in drawing4

£0.80

excl. VAT

In stock

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

£0.80

In stock

Locking cylinder QSM60/S60 V5 Forged QSC pre-assembled

Article no: 1083143

Position10

Quantity in drawing1

£1,486.00

excl. VAT

Out of stock

Locking cylinder QSM60/S60 V5 Forged QSC pre-assembled

Article no: 1083143

(POS.11-18 incl.)

£1,486.00

Out of stock

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Position26

Quantity in drawing1

£7.60

excl. VAT

In stock

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Loxeal 83-52. Torque 136Nm

£7.60

In stock

Locking hook S60/QSM60/QS60 V2 cast

Article no: 1046654

Position25

Quantity in drawing1

£433.70

excl. VAT

In stock

Locking hook S60/QSM60/QS60 V2 cast

Article no: 1046654

£433.70

In stock

Sensor plate QS60

Article no: 1036413

Position16

Quantity in drawing1

£17.80

excl. VAT

In stock

Sensor plate QS60

Article no: 1036413

Assemble with slight play

£17.80

In stock

Deutsch DT04-6P connector device

Article no: 820109

Position48

Quantity in drawing1

£26.30

excl. VAT

Out of stock

Deutsch DT04-6P connector device

Article no: 820109

Used until 2015-04

£26.30

Out of stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position31

Quantity in drawing6

£1.90

excl. VAT

In stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

QTY: 4 for EC-Oil

£1.90

In stock

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position29

Quantity in drawing1

£0.80

excl. VAT

In stock

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

£0.80

In stock

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Position12

Quantity in drawing1

£244.60

excl. VAT

In stock

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Mount 1mm from Sensor plate

£244.60

In stock

Protective sleeve Inductive sensor M12

Article no: 8000056

Position7

Quantity in drawing1

£0.80

excl. VAT

In stock

Protective sleeve Inductive sensor M12

Article no: 8000056

£0.80

In stock

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

Position42

Quantity in drawing2

£0.80

excl. VAT

Out of stock

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

£0.80

Out of stock

Washer Starlock 6mm

Article no: 6000415

Position28

Quantity in drawing1

£0.80

excl. VAT

In stock

Washer Starlock 6mm

Article no: 6000415

£0.80

In stock

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Position1

Quantity in drawing1

£244.60

excl. VAT

In stock

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Mount just below surface edge

£244.60

In stock

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Position37

Quantity in drawing1

£244.60

excl. VAT

In stock

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Replaced 2018

£244.60

In stock

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position9

Quantity in drawing1

£0.80

excl. VAT

In stock

Protection Plug ECO power plug & QS sensor

Article no: 8000068

£0.80

In stock

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position6

Quantity in drawing1

£24.50

excl. VAT

In stock

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

£24.50

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position33

Quantity in drawing4

£3.10

excl. VAT

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

£3.10

In stock

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position8

Quantity in drawing1

£0.80

excl. VAT

In stock

Screw MS6SS 8x16 ISO4027

Article no: 610808

£0.80

In stock

Inductive sensor M12 IF6079

Article no: 810463

Position47

Quantity in drawing2

£161.80

excl. VAT

In stock

Inductive sensor M12 IF6079

Article no: 810463

Replaced by POS.37 from 2015-04

£161.80

In stock

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Position38

Quantity in drawing1

£244.60

excl. VAT

In stock

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Replaced by POS.12 from 2018-01

£244.60

In stock

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

Position13

Quantity in drawing2

£14.00

excl. VAT

In stock

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

£14.00

In stock

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

Position23

Quantity in drawing2

£83.70

excl. VAT

In stock

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

£83.70

In stock

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Position17

Quantity in drawing2

£0.80

excl. VAT

In stock

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

£0.80

In stock

Spring S60/QSM60/QS60 locking hook - short (25x64)

Article no: 1024022

Position22

Quantity in drawing2

£15.80

excl. VAT

In stock

Spring S60/QSM60/QS60 locking hook - short (25x64)

Article no: 1024022

£15.80

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position50

Quantity in drawing2

£1.80

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Used until 2016-01

£1.80

In stock

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position34

Quantity in drawing4

£1.30

excl. VAT

In stock

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

£1.30

In stock

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Position18

Quantity in drawing2

£0.80

excl. VAT

In stock

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Loxeal 83-52

£0.80

In stock

Spacer QS45-60 V3

Article no: 1036406

Position15

Quantity in drawing2

£11.10

excl. VAT

In stock

Spacer QS45-60 V3

Article no: 1036406

£11.10

In stock

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Position24

Quantity in drawing2

£43.30

excl. VAT

In stock

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Loxeal 83-52

£43.30

In stock

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position27

Quantity in drawing1

£16.90

excl. VAT

In stock

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit

£16.90

In stock

Ejector QS60

Article no: 1036405

Position14

Quantity in drawing2

£94.10

excl. VAT

In stock

Ejector QS60

Article no: 1036405

£94.10

In stock

Plug Din 908 1/4"

Article no: 711505

Position20

Quantity in drawing2

£2.40

excl. VAT

In stock

Plug Din 908 1/4"

Article no: 711505

£2.40

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position30

Quantity in drawing4

£1.90

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

£1.90

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position19

Quantity in drawing2

£0.80

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

£0.80

In stock
