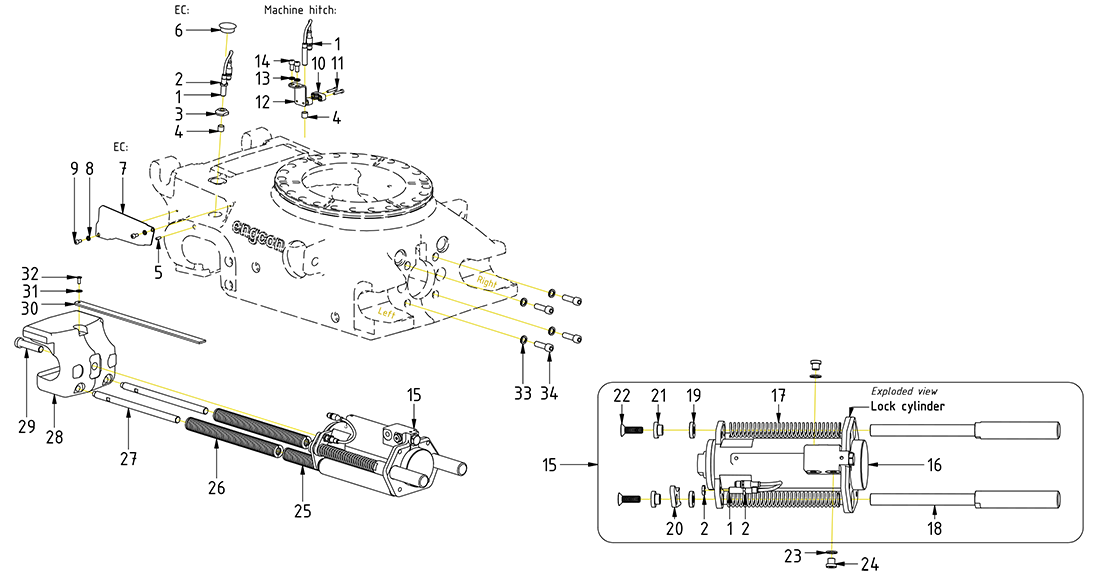

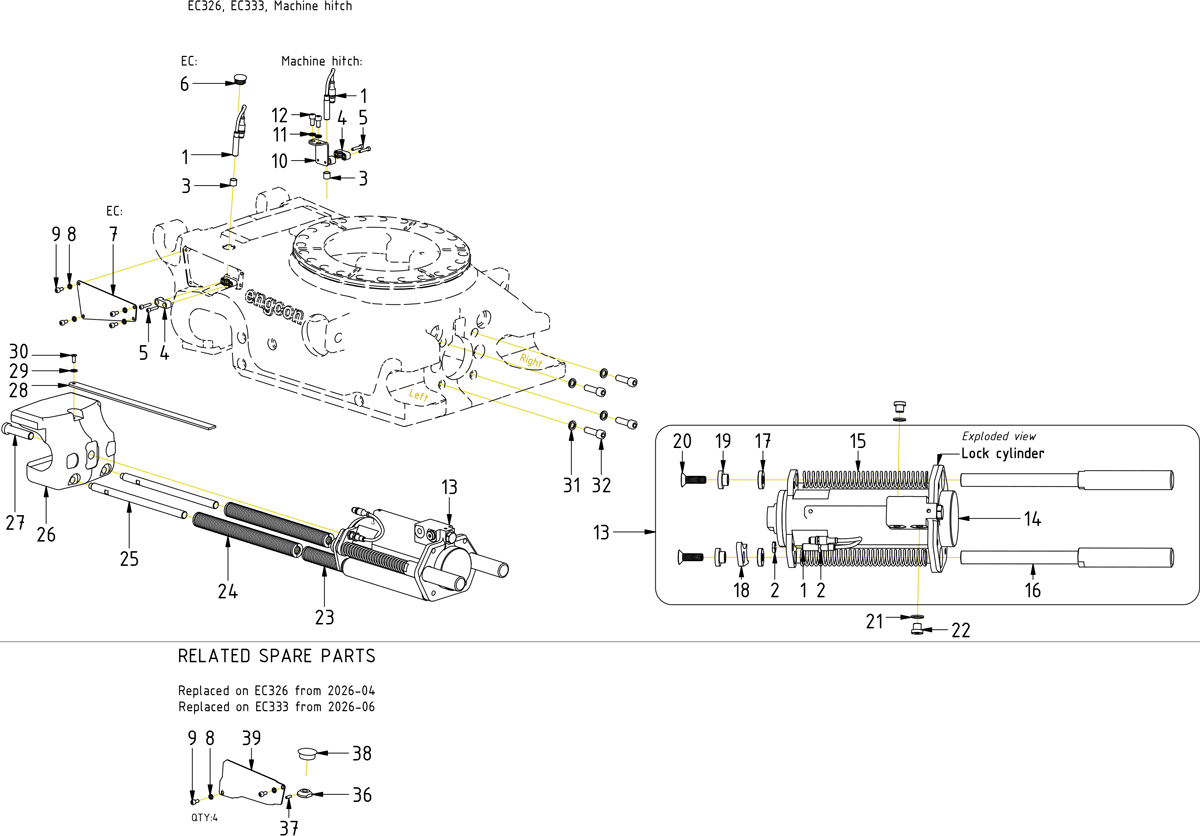

Std comp. S70 (from 2024)

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position8

Quantity in drawing4

£1.30

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

£1.30

In stock

Rubber Steel Clamp Ø12

Article no: 790155

Position35

Quantity in drawing1

£0.80

excl. VAT

Out of stock

Rubber Steel Clamp Ø12

Article no: 790155

£0.80

Out of stock

Locking cylinder QSM70/S70 V4 Forged QSC pre-assembled

Article no: 1058124

Position15

Quantity in drawing1

£2,455.00

excl. VAT

Few in stock (2)

Locking cylinder QSM70/S70 V4 Forged QSC pre-assembled

Article no: 1058124

(POS.1, 16-22 incl.)

£2,455.00

Few in stock (2)

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Position14

Quantity in drawing2

£0.90

excl. VAT

In stock

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

£0.90

In stock

Screw MC6S 6x12H 12.9 ZFSHL ISO4762

Article no: 6000352

Position9

Quantity in drawing4

£0.80

excl. VAT

In stock

Screw MC6S 6x12H 12.9 ZFSHL ISO4762

Article no: 6000352

£0.80

In stock

Screw MC6S 5x25 12.9 untreated ISO4762

Article no: 610402

Position11

Quantity in drawing2

£1.40

excl. VAT

In stock

Screw MC6S 5x25 12.9 untreated ISO4762

Article no: 610402

£1.40

In stock

Mounting plate-hook sensor S70/S80

Article no: 1073461

Position12

Quantity in drawing1

£9.60

excl. VAT

Out of stock

Mounting plate-hook sensor S70/S80

Article no: 1073461

£9.60

Out of stock

Clamping half sensor QSM40/60/S40/45/60/70/80 Injection mold

Article no: 1063793

Position10

Quantity in drawing2

£1.10

excl. VAT

In stock

Clamping half sensor QSM40/60/S40/45/60/70/80 Injection mold

Article no: 1063793

£1.10

In stock

Cover plate Side QSM70 V3 - sensor

Article no: 1061519

Position7

Quantity in drawing2

£14.10

excl. VAT

Few in stock (2)

Cover plate Side QSM70 V3 - sensor

Article no: 1061519

Replaced by POS.7

£14.10

Few in stock (2)

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position36

Quantity in drawing1

£0.80

excl. VAT

In stock

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Loxeal 55-02

£0.80

In stock

Inductive sensor M12-hook quick hitch&Locking cylinder QSM

Article no: 1048262

Position1

Quantity in drawing2

£158.00

excl. VAT

In stock

Inductive sensor M12-hook quick hitch&Locking cylinder QSM

Article no: 1048262

EC: to slip ring. Machine: to Y-split

£158.00

In stock

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position32

Quantity in drawing1

£0.80

excl. VAT

In stock

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

£0.80

In stock

Protective sleeve Inductive sensor M12

Article no: 8000056

Position4

Quantity in drawing1

£0.80

excl. VAT

In stock

Protective sleeve Inductive sensor M12

Article no: 8000056

£0.80

In stock

Locking cylinder QS70 V4 Forged

Article no: 1058122

Position16

Quantity in drawing1

£1,853.00

excl. VAT

Out of stock

Locking cylinder QS70 V4 Forged

Article no: 1058122

£1,853.00

Out of stock

Spacer QS70

Article no: 1035752

Position19

Quantity in drawing2

£23.50

excl. VAT

In stock

Spacer QS70

Article no: 1035752

£23.50

In stock

Locking hook QSM70/QS70/S70 V2 cast

Article no: 1037431

Position28

Quantity in drawing1

£365.00

excl. VAT

Few in stock (2)

Locking hook QSM70/QS70/S70 V2 cast

Article no: 1037431

£365.00

Few in stock (2)

Seal washer GBR04 1/4"

Article no: 710702

Position23

Quantity in drawing2

£0.80

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

£0.80

In stock

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Position34

Quantity in drawing4

£1.40

excl. VAT

Out of stock

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

£1.40

Out of stock

Washer Starlock 6mm

Article no: 6000415

Position31

Quantity in drawing1

£0.80

excl. VAT

In stock

Washer Starlock 6mm

Article no: 6000415

£0.80

In stock

Screw MLC6S 16x70 10.9 DIN7984 untreated

Article no: 610720

Position29

Quantity in drawing1

£15.10

excl. VAT

In stock

Screw MLC6S 16x70 10.9 DIN7984 untreated

Article no: 610720

Loxeal 83-52. Torque 136Nm

£15.10

In stock

Plug Din 908 1/4"

Article no: 711505

Position24

Quantity in drawing2

£2.40

excl. VAT

In stock

Plug Din 908 1/4"

Article no: 711505

£2.40

In stock

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position6

Quantity in drawing1

£0.80

excl. VAT

In stock

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Replaced by POS.6

£0.80

In stock

Sensor plate QS70

Article no: 1035751

Position20

Quantity in drawing1

£24.50

excl. VAT

In stock

Sensor plate QS70

Article no: 1035751

Assemble with sligth play

£24.50

In stock

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position3

Quantity in drawing1

£24.50

excl. VAT

In stock

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

£24.50

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position33

Quantity in drawing4

£3.10

excl. VAT

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

£3.10

In stock

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position5

Quantity in drawing1

£0.80

excl. VAT

In stock

Screw MS6SS 8x16 ISO4027

Article no: 610808

£0.80

In stock

Spring QS70/80 Ejectors - 21,8x210

Article no: 1049974

Position17

Quantity in drawing2

£8.70

excl. VAT

Few in stock (5)

Spring QS70/80 Ejectors - 21,8x210

Article no: 1049974

£8.70

Few in stock (5)

Spring QSM70/QS70/S70 locking hook - long (32x305)

Article no: 1025179

Position26

Quantity in drawing2

£96.00

excl. VAT

Few in stock (4)

Spring QSM70/QS70/S70 locking hook - long (32x305)

Article no: 1025179

£96.00

Few in stock (4)

Screw MF6S 12x40 10.9 FZB ISO10642

Article no: 610670

Position22

Quantity in drawing2

£2.40

excl. VAT

In stock

Screw MF6S 12x40 10.9 FZB ISO10642

Article no: 610670

Loxeal 83-52

£2.40

In stock

Steering S70/QS70-80

Article no: 1024695

Position27

Quantity in drawing2

£131.70

excl. VAT

Few in stock (2)

Steering S70/QS70-80

Article no: 1024695

Loxeal 83-52

£131.70

Few in stock (2)

Spring QSM70/QS70/S70 locking hook - short (32x152)

Article no: 1025178

Position25

Quantity in drawing2

£45.20

excl. VAT

In stock

Spring QSM70/QS70/S70 locking hook - short (32x152)

Article no: 1025178

£45.20

In stock

Spacer M12 L15 countersunk

Article no: 1008243

Position21

Quantity in drawing2

£21.60

excl. VAT

In stock

Spacer M12 L15 countersunk

Article no: 1008243

£21.60

In stock

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position30

Quantity in drawing1

£16.90

excl. VAT

In stock

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit

£16.90

In stock

Ejector QS70-QS80

Article no: 1034935

Position18

Quantity in drawing2

£159.00

excl. VAT

Few in stock (5)

Ejector QS70-QS80

Article no: 1034935

£159.00

Few in stock (5)

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position13

Quantity in drawing2

£1.80

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

£1.80

In stock
