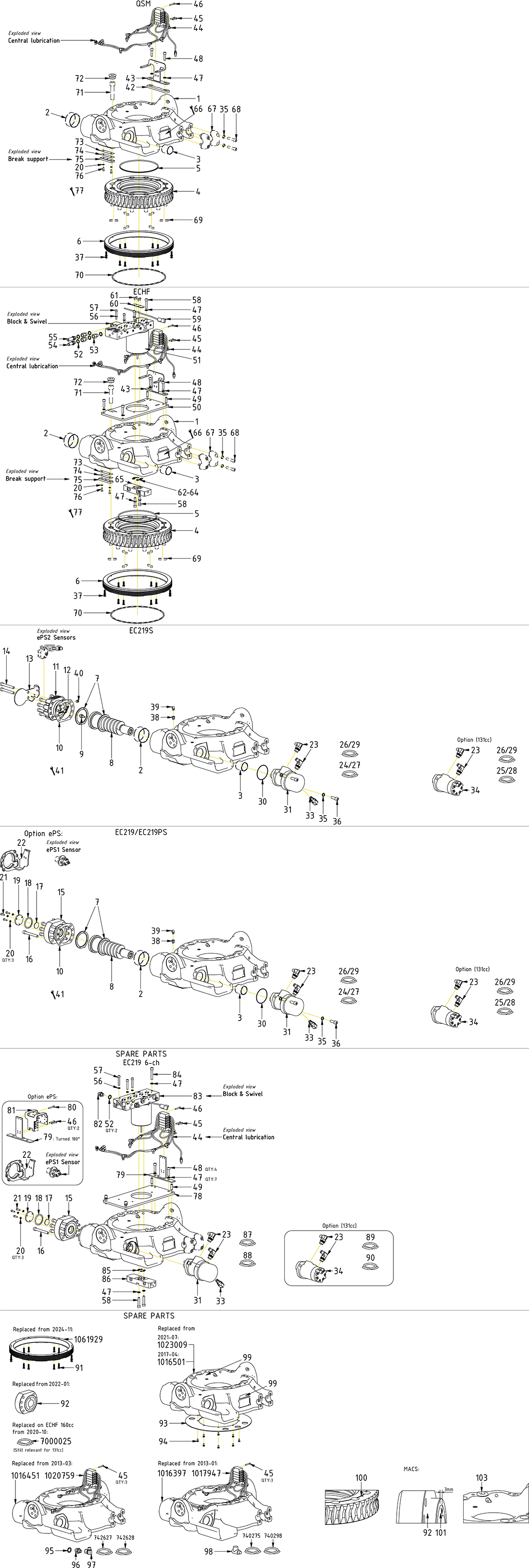

Main components

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Attachment angle sensor EC219,EC226-5V/6CH-swivel

Article no: 1029973

Position80

Quantity in drawing1

€140.70

excl. VAT

Out of stock

Attachment angle sensor EC219,EC226-5V/6CH-swivel

Article no: 1029973

€140.70

Out of stock

Valve plate -ECHF-EC219, EC226

Article no: 1024824

Position61

Quantity in drawing1

€175.80

excl. VAT

Out of stock

Valve plate -ECHF-EC219, EC226

Article no: 1024824

€175.80

Out of stock

Worm wheel EC219

Article no: 1016409

Position4

Quantity in drawing1

€6,813.00

excl. VAT

Out of stock

Worm wheel EC219

Article no: 1016409

€6,813.00

Out of stock

Attachment central lubrication EC219-EC226

Article no: 1018052

Position78

Quantity in drawing1

€112.10

excl. VAT

Out of stock

Attachment central lubrication EC219-EC226

Article no: 1018052

€112.10

Out of stock

Hose motor - EC219 - long - V3 Rotated motor

Article no: 742635

Position86

Quantity in drawing1

€69.20

excl. VAT

Out of stock

Hose motor - EC219 - long - V3 Rotated motor

Article no: 742635

€69.20

Out of stock

Hose motor - EC219/EC226 - ECHF short

Article no: 7000026

Position57

Quantity in drawing1

€73.60

excl. VAT

Out of stock

Hose motor - EC219/EC226 - ECHF short

Article no: 7000026

€73.60

Out of stock

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Position83

Quantity in drawing1

€2.70

excl. VAT

Out of stock

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

€2.70

Out of stock

Hose motor - EC219 - short - V3 Rotated motor

Article no: 742634

Position87

Quantity in drawing1

€63.70

excl. VAT

Out of stock

Hose motor - EC219 - short - V3 Rotated motor

Article no: 742634

€63.70

Out of stock

Wear washer EC219

Article no: 1016414

Position92

Quantity in drawing1

€449.50

excl. VAT

Out of stock

Wear washer EC219

Article no: 1016414

Used until 2017-04

€449.50

Out of stock

Hose

Article no: 7001404

Position58

Quantity in drawing1

€46.20

excl. VAT

Out of stock

Hose

Article no: 7001404

€46.20

Out of stock

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

Position36

Quantity in drawing2

€2.20

excl. VAT

In stock

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

Torque: 79Nm

€2.20

In stock

Valve block-swivel 5v & 6-ch Slip ring-DTM

Article no: 1030297

Position82

Quantity in drawing1

€4,231.00

excl. VAT

Out of stock

Valve block-swivel 5v & 6-ch Slip ring-DTM

Article no: 1030297

€4,231.00

Out of stock

Lubrication kit EC219 V3

Article no: 1021135

Position32

Quantity in drawing1

€1,593.00

excl. VAT

Out of stock

Lubrication kit EC219 V3

Article no: 1021135

€1,593.00

Out of stock

Adapter bulkhead extended 1260-06-43

Article no: 710262

Position66

Quantity in drawing1

€23.10

excl. VAT

Out of stock

Adapter bulkhead extended 1260-06-43

Article no: 710262

€23.10

Out of stock

Rotator frame 219 V5 EngconYellow complete

Article no: 1062295

Position1

Quantity in drawing1

€7,956.00

excl. VAT

Out of stock

Rotator frame 219 V5 EngconYellow complete

Article no: 1062295

(POS.2-3 incl.)

€7,956.00

Out of stock

Hose

Article no: 7000724

Position16

Quantity in drawing1

€67.00

excl. VAT

Out of stock

Hose

Article no: 7000724

Part of quick hitch assy.

€67.00

Out of stock

Adapter DSVW-15 LR HFX banjo

Article no: 710510

Position97

Quantity in drawing1

€89.00

excl. VAT

Out of stock

Adapter DSVW-15 LR HFX banjo

Article no: 710510

Used until 2013-01

€89.00

Out of stock

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Position14

Quantity in drawing8

€2.70

excl. VAT

Out of stock

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Torque: 136Nm

€2.70

Out of stock

hose motor

Article no: 7000025

Position59

Quantity in drawing1

€33.00

excl. VAT

Out of stock

hose motor

Article no: 7000025

€33.00

Out of stock

Valve plate -EC219/EC26/EC226

Article no: 1011515

Position77

Quantity in drawing1

€139.60

excl. VAT

Out of stock

Valve plate -EC219/EC26/EC226

Article no: 1011515

€139.60

Out of stock

Connection block under ECHF V3

Article no: 1028391

Position76

Quantity in drawing1

€559.30

excl. VAT

Out of stock

Connection block under ECHF V3

Article no: 1028391

Guide with spring pin from swivel

€559.30

Out of stock

Valve block-swivel 7-channel ECHF

Article no: 1027386

Position62

Quantity in drawing1

€4,231.00

excl. VAT

Out of stock

Valve block-swivel 7-channel ECHF

Article no: 1027386

€4,231.00

Out of stock

Spacer-end lock EC209/EC214/EC219

Article no: 1065370

Position52

Quantity in drawing1

€2.90

excl. VAT

Out of stock

Spacer-end lock EC209/EC214/EC219

Article no: 1065370

€2.90

Out of stock

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position68

Quantity in drawing3

€1.60

excl. VAT

In stock

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

€1.60

In stock

Slip ring-ECHF-DTM/ Plug

Article no: 1030298

Position70

Quantity in drawing1

€1,319.00

excl. VAT

In stock

Slip ring-ECHF-DTM/ Plug

Article no: 1030298

For QS. See "Slip rings"

€1,319.00

In stock

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Position99

Quantity in drawing1

€15.70

excl. VAT

Out of stock

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Loctite 415. Harden 1 minute

€15.70

Out of stock

End lock EC209/EC214/EC219

Article no: 1016415

Position91

Quantity in drawing1

€349.50

excl. VAT

Out of stock

End lock EC209/EC214/EC219

Article no: 1016415

Replaced by POS.50 from 2022-01 MACS: Replaces 1028628 from 16-10

€349.50

Out of stock

Spacer central lubrication QSM EC214,EC219,EC226

Article no: 1047832

Position30

Quantity in drawing1

€34.10

excl. VAT

Out of stock

Spacer central lubrication QSM EC214,EC219,EC226

Article no: 1047832

€34.10

Out of stock

Hose

Article no: 7000789

Position18

Quantity in drawing1

€39.60

excl. VAT

Out of stock

Hose

Article no: 7000789

Part of quick hitch assy.

€39.60

Out of stock

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

Position55

Quantity in drawing3

€1.00

excl. VAT

Out of stock

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

€1.00

Out of stock

Worm screw EC214 , EC219

Article no: 1016408

Position8

Quantity in drawing1

€2,308.00

excl. VAT

Out of stock

Worm screw EC214 , EC219

Article no: 1016408

€2,308.00

Out of stock

Cover plate Slip ring ECHF V2

Article no: 1026200

Position71

Quantity in drawing1

€17.00

excl. VAT

Out of stock

Cover plate Slip ring ECHF V2

Article no: 1026200

€17.00

Out of stock

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position48

Quantity in drawing2

€1.00

excl. VAT

In stock

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

€1.00

In stock

Plug VSTIR18ED 1/8"

Article no: 711503

Position28

Quantity in drawing1

€6.20

excl. VAT

Few in stock (3)

Plug VSTIR18ED 1/8"

Article no: 711503

QTY: 2 for EC219S

€6.20

Few in stock (3)

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position72

Quantity in drawing4

€1.00

excl. VAT

Out of stock

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

€1.00

Out of stock

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Position43

Quantity in drawing6

€17.80

excl. VAT

Out of stock

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

€17.80

Out of stock

Magnet Spacer Worm Screw

Article no: 1062693

Position9

Quantity in drawing1

€14.50

excl. VAT

Out of stock

Magnet Spacer Worm Screw

Article no: 1062693

Loxeal 83-52. Torque: 20Nm

€14.50

Out of stock

Bearing ring EC219 V2

Article no: 1077005

Position6

Quantity in drawing1

€1,154.00

excl. VAT

Few in stock (2)

Bearing ring EC219 V2

Article no: 1077005

(Only compatible with 8x25)

€1,154.00

Few in stock (2)

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Position93

Quantity in drawing8

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Used until 2017-04

Bushing WB802/EB1 80/85x40

Article no: 630103

Position2

Quantity in drawing1

€42.90

excl. VAT

Few in stock (4)

Bushing WB802/EB1 80/85x40

Article no: 630103

€42.90

Few in stock (4)

Cover End lock None ePS

Article no: 1041613

Position54

Quantity in drawing1

€20.70

excl. VAT

Out of stock

Cover End lock None ePS

Article no: 1041613

€20.70

Out of stock

Lubrication nipple 1/8" 90°

Article no: 711409

Position27

Quantity in drawing1

€6.20

excl. VAT

Out of stock

Lubrication nipple 1/8" 90°

Article no: 711409

€6.20

Out of stock

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position40

Quantity in drawing6

€2.90

excl. VAT

In stock

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Part of quick hitch

€2.90

In stock

Adapter 136-06-06

Article no: 710106

Position81

Quantity in drawing2

€2.90

excl. VAT

Out of stock

Adapter 136-06-06

Article no: 710106

€2.90

Out of stock

Screw MC6S 12x100 12.9 ZFSHL ISO4762

Article no: 611514

Position51

Quantity in drawing8

€6.00

excl. VAT

In stock

Screw MC6S 12x100 12.9 ZFSHL ISO4762

Article no: 611514

Torque: 136Nm

€6.00

In stock

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

Position11

Quantity in drawing1

€351.60

excl. VAT

Out of stock

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

(POS.12 incl.)

€351.60

Out of stock

Plate break support - EC209/214/219

Article no: 1055258

Position46

Quantity in drawing1

€74.70

excl. VAT

Out of stock

Plate break support - EC209/214/219

Article no: 1055258

€74.70

Out of stock

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

Position45

Quantity in drawing1

€6.90

excl. VAT

Out of stock

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

€6.90

Out of stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position47

Quantity in drawing2

€1.50

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

€1.50

In stock

Seal R09-F 20x27.5x3.2

Article no: 1063616

Position12

Quantity in drawing1

€20.90

excl. VAT

Out of stock

Seal R09-F 20x27.5x3.2

Article no: 1063616

€20.90

Out of stock

Extender 18mm R1/8" lubrication kit

Article no: 712216

Position26

Quantity in drawing1

€13.00

excl. VAT

Few in stock (5)

Extender 18mm R1/8" lubrication kit

Article no: 712216

€13.00

Few in stock (5)

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

Position44

Quantity in drawing1

€5.20

excl. VAT

Out of stock

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

€5.20

Out of stock

Cylindrical pin CPK Ø10x35 m6

Article no: 1015672

Position60

Quantity in drawing2

€2.50

excl. VAT

Out of stock

Cylindrical pin CPK Ø10x35 m6

Article no: 1015672

€2.50

Out of stock

End lock EC209/EC214/EC219 ePS

Article no: 1016557

Position50

Quantity in drawing1

€449.50

excl. VAT

Out of stock

End lock EC209/EC214/EC219 ePS

Article no: 1016557

€449.50

Out of stock

Bushing WB802/EB1 45/50x50

Article no: 630102

Position3

Quantity in drawing1

€27.50

excl. VAT

Few in stock (2)

Bushing WB802/EB1 45/50x50

Article no: 630102

€27.50

Few in stock (2)

Axial washer with ear EC209/214/219

Article no: 1079941

Position7

Quantity in drawing2

€79.10

excl. VAT

In stock

Axial washer with ear EC209/214/219

Article no: 1079941

Face grooves toward worm screw

€79.10

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position23

Quantity in drawing10

€3.60

excl. VAT

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

QTY: 8 part of top part

€3.60

In stock

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position24

Quantity in drawing2

€1.50

excl. VAT

In stock

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Torque: 136Nm

€1.50

In stock

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

Position10

Quantity in drawing1

€184.60

excl. VAT

Few in stock (3)

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

€184.60

Few in stock (3)

O-ring 225x5 NBR 90 shore EC219 worm wheel

Article no: 7001662

Position5

Quantity in drawing1

€9.10

excl. VAT

Few in stock (5)

O-ring 225x5 NBR 90 shore EC219 worm wheel

Article no: 7001662

€9.10

Few in stock (5)

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

Position102

Quantity in drawing1

€38.50

excl. VAT

Out of stock

102

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

€38.50

Out of stock

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Position22

Quantity in drawing1

€1,025.00

excl. VAT

Few in stock (4)

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Option

€1,025.00

Few in stock (4)

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

Position53

Quantity in drawing1

€4.00

excl. VAT

Out of stock

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

€4.00

Out of stock

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Position75

Quantity in drawing1

€1.60

excl. VAT

In stock

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

€1.60

In stock

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Position73

Quantity in drawing2

€1.00

excl. VAT

In stock

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

€1.00

In stock

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Position90

Quantity in drawing13

€1.50

excl. VAT

In stock

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Torque: 34Nm. Used with 1061929

€1.50

In stock

Relief valve HydraSpecma White 160/200cc fixed 200bar

Article no: 7001647

Position21

Quantity in drawing1

€149.50

excl. VAT

Out of stock

Relief valve HydraSpecma White 160/200cc fixed 200bar

Article no: 7001647

Torque: 77Nm. Assy. before motor

€149.50

Out of stock

Screw TX45 8x25 10.9 FZB

Article no: 1078840

Position25

Quantity in drawing12

€1.00

excl. VAT

In stock

Screw TX45 8x25 10.9 FZB

Article no: 1078840

Torque: 34Nm Tighten in cross pattern

€1.00

In stock

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position41

Quantity in drawing1

€52.80

excl. VAT

Few in stock (5)

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Part of quick hitch

€52.80

Few in stock (5)

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Position19

Quantity in drawing1

€2.70

excl. VAT

In stock

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

€2.70

In stock

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Position74

Quantity in drawing4

€1.00

excl. VAT

In stock

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

€1.00

In stock

Attachment central lubrication & TM DC2 -ECHF/QSM

Article no: 1031517

Position31

Quantity in drawing1

€113.20

excl. VAT

Few in stock (2)

Attachment central lubrication & TM DC2 -ECHF/QSM

Article no: 1031517

€113.20

Few in stock (2)

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Position100

Quantity in drawing1

€779.10

excl. VAT

Out of stock

100

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Distance 3mm. Nut torque: 3Nm

€779.10

Out of stock

Hose

Article no: 7000790

Position17

Quantity in drawing1

€39.60

excl. VAT

Out of stock

Hose

Article no: 7000790

Part of quick hitch assy.

€39.60

Out of stock

Hydraulic motor White 160cc

Article no: 7001806

Position20

Quantity in drawing1

€990.10

excl. VAT

Few in stock (3)

Hydraulic motor White 160cc

Article no: 7001806

€990.10

Few in stock (3)

Adapter bulkhead 1260-06-32

Article no: 710242

Position65

Quantity in drawing1

€12.20

excl. VAT

Out of stock

Adapter bulkhead 1260-06-32

Article no: 710242

€12.20

Out of stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position35

Quantity in drawing2

€2.20

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 7 for ECHF

€2.20

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position69

Quantity in drawing3

€4.00

excl. VAT

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

€4.00

In stock

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position13

Quantity in drawing1

€52.80

excl. VAT

Out of stock

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

€52.80

Out of stock

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Position39

Quantity in drawing8

€2.30

excl. VAT

In stock

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Part of top part. Torque: 136Nm

€2.30

In stock

Clamping half EC219/226/326 EngconYellow complete

Article no: 1016393

Position38

Quantity in drawing4

€159.30

excl. VAT

Few in stock (5)

Clamping half EC219/226/326 EngconYellow complete

Article no: 1016393

Part of top part

€159.30

Few in stock (5)

Adapter 236-06-06

Article no: 710131

Position64

Quantity in drawing3

€6.20

excl. VAT

Out of stock

Adapter 236-06-06

Article no: 710131

€6.20

Out of stock

Adapter 030090-06-06 90°

Article no: 710216

Position96

Quantity in drawing1

€20.20

excl. VAT

Out of stock

Adapter 030090-06-06 90°

Article no: 710216

Used until 2013-03

€20.20

Out of stock

Adapter 401-06-08 90°

Article no: 710157

Position15

Quantity in drawing2

€30.80

excl. VAT

Out of stock

Adapter 401-06-08 90°

Article no: 710157

€30.80

Out of stock

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position33

Quantity in drawing2

€1.00

excl. VAT

In stock

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

€1.00

In stock

Adapter 135-06-08

Article no: 710122

Position95

Quantity in drawing1

€6.20

excl. VAT

In stock

Adapter 135-06-08

Article no: 710122

Used until 2013-03

€6.20

In stock

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position34

Quantity in drawing1

€1.00

excl. VAT

In stock

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

€1.00

In stock

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position56

Quantity in drawing1

€307.70

excl. VAT

Out of stock

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

For ePS1

€307.70

Out of stock

Seal washer GBR08 1/2"

Article no: 710704

Position94

Quantity in drawing1

€1.10

excl. VAT

In stock

Seal washer GBR08 1/2"

Article no: 710704

Used until 2013-03

€1.10

In stock

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position79

Quantity in drawing1

€1.00

excl. VAT

In stock

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

€1.00

In stock

Seal washer GBR06 3/8"

Article no: 710703

Position63

Quantity in drawing5

€1.00

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

€1.00

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position67

Quantity in drawing3

€2.10

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

€2.10

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position84

Quantity in drawing6

€1.00

excl. VAT

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

€1.00

In stock
