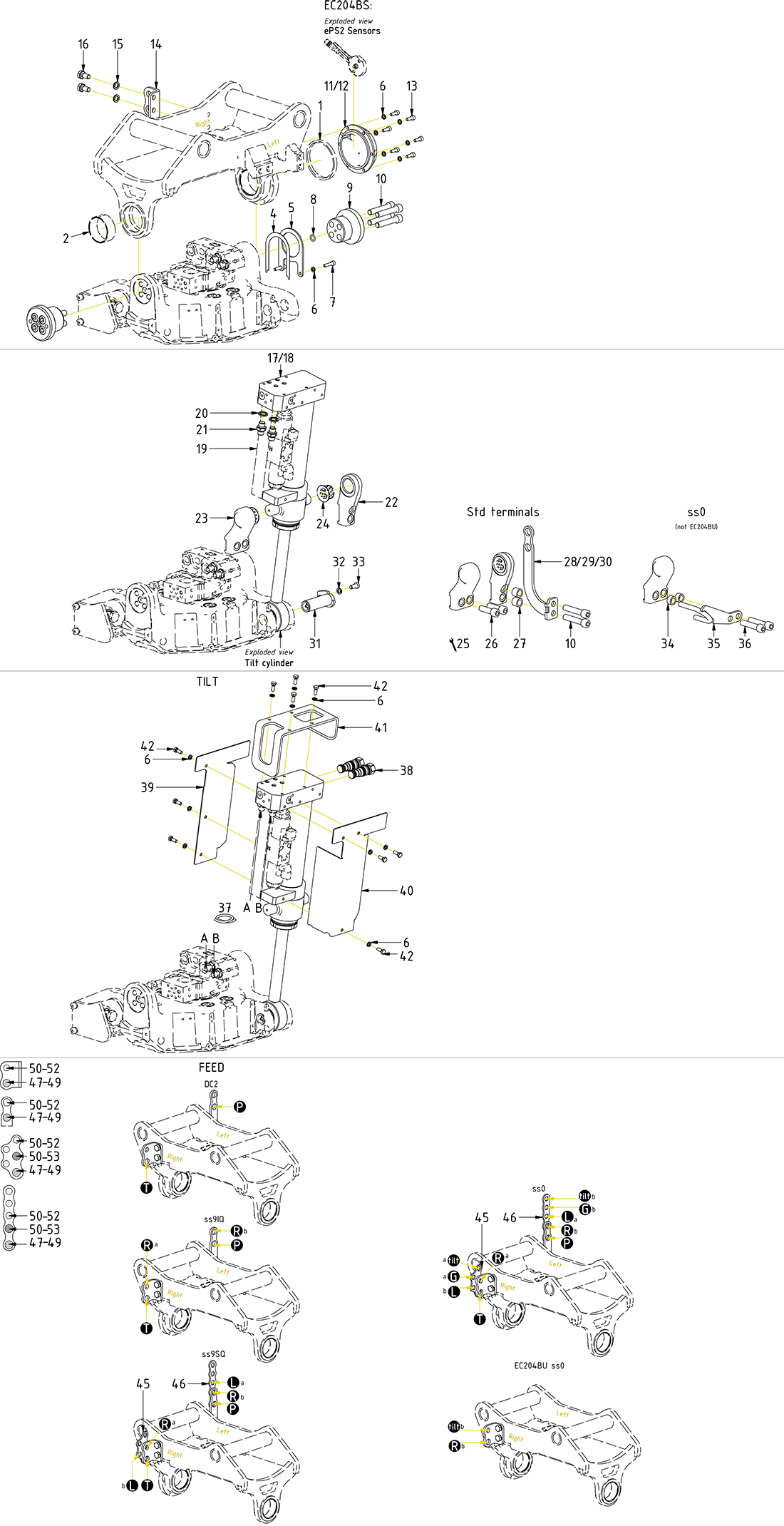

Std. Top components

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Hose bracket S40- top part EC204/EC204B left

Article no: 1053732

Position25

Quantity in drawing1

€79.10

excl. VAT

Out of stock

Hose bracket S40- top part EC204/EC204B left

Article no: 1053732

€79.10

Out of stock

Tilt axial washer EC204/EC204B

Article no: 1027785

Position4

Quantity in drawing1

€100.00

excl. VAT

Out of stock

Tilt axial washer EC204/EC204B

Article no: 1027785

€100.00

Out of stock

Hose

Article no: 7001990

Position34

Quantity in drawing2

€50.60

excl. VAT

Out of stock

Hose

Article no: 7001990

For DC3, DC2, ss10 (SVAB), ss9

€50.60

Out of stock

Protective cover tilt cylinder EC204B

Article no: 1075507

Position39

Quantity in drawing1

€26.40

excl. VAT

Out of stock

Protective cover tilt cylinder EC204B

Article no: 1075507

€26.40

Out of stock

Hose guide EC204B

Article no: 1078845

Position32

Quantity in drawing1

€29.70

excl. VAT

Out of stock

Hose guide EC204B

Article no: 1078845

€29.70

Out of stock

Hose bracket CW05- top part EC204B left

Article no: 1079664

Position27

Quantity in drawing1

€27.50

excl. VAT

Out of stock

Hose bracket CW05- top part EC204B left

Article no: 1079664

€27.50

Out of stock

Seal PAK 80x90x7-L

Article no: 1076113

Position1

Quantity in drawing1

€21.70

excl. VAT

Out of stock

Seal PAK 80x90x7-L

Article no: 1076113

Face groove toward top part (Incl. in Top part)

€21.70

Out of stock

Spacer 15mm Hose Bracket left EC204/EC204B

Article no: 1009999

Position24

Quantity in drawing2

€16.40

excl. VAT

Out of stock

Spacer 15mm Hose Bracket left EC204/EC204B

Article no: 1009999

€16.40

Out of stock

Hose bracket EC204B-straight Plate for 3x hose

Article no: 1079464

Position44

Quantity in drawing1

€10.00

excl. VAT

Out of stock

Hose bracket EC204B-straight Plate for 3x hose

Article no: 1079464

€10.00

Out of stock

Tilt cylinder EC204B

Article no: 1077744

Position15

Quantity in drawing1

€1,692.00

excl. VAT

Out of stock

Tilt cylinder EC204B

Article no: 1077744

€1,692.00

Out of stock

Hose bracket UNI top part EC204B left

Article no: 1079699

Position26

Quantity in drawing1

€35.20

excl. VAT

Out of stock

Hose bracket UNI top part EC204B left

Article no: 1079699

€35.20

Out of stock

Cover Tilt Axle EC204BS

Article no: 1074349

Position10

Quantity in drawing1

€228.60

excl. VAT

Out of stock

Cover Tilt Axle EC204BS

Article no: 1074349

€228.60

Out of stock

Hose bracket Top part EC204/EC204B right

Article no: 1045070

Position12

Quantity in drawing1

€42.90

excl. VAT

Out of stock

Hose bracket Top part EC204/EC204B right

Article no: 1045070

Without EC-Oil

€42.90

Out of stock

Valve block EC204B tilt cylinder

Article no: 1075504

Position16

Quantity in drawing1

€408.80

excl. VAT

Out of stock

Valve block EC204B tilt cylinder

Article no: 1075504

Part of control system

€408.80

Out of stock

Cover plate Tilt cylinder-right-EC204B

Article no: 1076686

Position36

Quantity in drawing1

€20.60

excl. VAT

Out of stock

Cover plate Tilt cylinder-right-EC204B

Article no: 1076686

€20.60

Out of stock

Spacer 10mm Hose Bracket left EC206

Article no: 1071704

Position31

Quantity in drawing2

Spacer 10mm Hose Bracket left EC206

Article no: 1071704

Hose bracket EC204B-sheet metal for 3x hose-fixed

Article no: 1079468

Position43

Quantity in drawing1

€20.00

excl. VAT

Out of stock

Hose bracket EC204B-sheet metal for 3x hose-fixed

Article no: 1079468

€20.00

Out of stock

Shim tilt axle - EC204/EC204B 0,5mm

Article no: 1027820

Position3

Quantity in drawing1

€17.10

excl. VAT

Out of stock

Shim tilt axle - EC204/EC204B 0,5mm

Article no: 1027820

Use as required

€17.10

Out of stock

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Position6

Quantity in drawing2

€1.00

excl. VAT

In stock

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

€1.00

In stock

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

Position35

Quantity in drawing2

€283.50

excl. VAT

Out of stock

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

Torque: 45Nm

€283.50

Out of stock

Yoke Bracket EC204/EC204B rear cast complete

Article no: 1036606

Position19

Quantity in drawing1

€237.40

excl. VAT

Out of stock

Yoke Bracket EC204/EC204B rear cast complete

Article no: 1036606

(POS.21 incl.)

€237.40

Out of stock

Yoke Bracket EC204/EC204B forward complete

Article no: 1029052

Position20

Quantity in drawing1

€260.40

excl. VAT

Out of stock

Yoke Bracket EC204/EC204B forward complete

Article no: 1029052

(POS.21 incl.)

€260.40

Out of stock

Adapter bulkhead extended 1260-04-40

Article no: 710261

Position48

Quantity in drawing2

€15.80

excl. VAT

In stock

Adapter bulkhead extended 1260-04-40

Article no: 710261

QTY depends on config.

€15.80

In stock

Cover plate Tilt cylinder-leftEC204B

Article no: 1076687

Position37

Quantity in drawing1

€24.20

excl. VAT

Out of stock

Cover plate Tilt cylinder-leftEC204B

Article no: 1076687

€24.20

Out of stock

Screw M6S 6x16 10.9 FZB

Article no: 610109

Position40

Quantity in drawing4

€0.80

excl. VAT

Few in stock (4)

Screw M6S 6x16 10.9 FZB

Article no: 610109

Loxeal 55-02

€0.80

Few in stock (4)

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Position33

Quantity in drawing2

€2.30

excl. VAT

In stock

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Torque: 136Nm

€2.30

In stock

Adapter bulkhead extended 1260-06-43

Article no: 710262

Position46

Quantity in drawing2

€23.10

excl. VAT

Out of stock

Adapter bulkhead extended 1260-06-43

Article no: 710262

€23.10

Out of stock

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

Position38

Quantity in drawing6

€1.00

excl. VAT

Out of stock

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

Loxeal 55-02

€1.00

Out of stock

Nut bulkhead adapter 1270-04

Article no: 710250

Position49

Quantity in drawing2

€2.70

excl. VAT

Few in stock (2)

Nut bulkhead adapter 1270-04

Article no: 710250

QTY depends on config.

€2.70

Few in stock (2)

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position50

Quantity in drawing2

€4.00

excl. VAT

Out of stock

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

QTY depends on config.

€4.00

Out of stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position45

Quantity in drawing2

€5.70

excl. VAT

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

€5.70

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

Position47

Quantity in drawing2

€2.70

excl. VAT

Few in stock (4)

Nut bulkhead adapter 1270-06

Article no: 710252

€2.70

Few in stock (4)

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Position23

Quantity in drawing2

€1.60

excl. VAT

Out of stock

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Torque: 136Nm

€1.60

Out of stock

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position11

Quantity in drawing8

€1.00

excl. VAT

In stock

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

€1.00

In stock

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Position51

Quantity in drawing2

€1.00

excl. VAT

In stock

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

€1.00

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position5

Quantity in drawing18

€1.50

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

QTY: 8 for EC204BU

€1.50

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position17

Quantity in drawing2

€1.00

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

€1.00

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position7

Quantity in drawing2

€1.00

excl. VAT

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

€1.00

In stock

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position14

Quantity in drawing2

€1.00

excl. VAT

In stock

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Without EC-Oil

€1.00

In stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position18

Quantity in drawing2

€2.90

excl. VAT

Out of stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

€2.90

Out of stock

Cylinder axle EC204B

Article no: 1075902

Position28

Quantity in drawing1

€61.50

excl. VAT

Out of stock

Cylinder axle EC204B

Article no: 1075902

€61.50

Out of stock

Bushing tilt EC204 WB802/EB1 55/60x25

Article no: 6000004

Position2

Quantity in drawing2

€55.00

excl. VAT

In stock

Bushing tilt EC204 WB802/EB1 55/60x25

Article no: 6000004

(Incl. in Top part)

€55.00

In stock

Screw MLC6S 8x16 10.9 FZB DIN7984

Article no: 6000220

Position30

Quantity in drawing1

€1.00

excl. VAT

In stock

Screw MLC6S 8x16 10.9 FZB DIN7984

Article no: 6000220

€1.00

In stock

Tilt axle EC204B

Article no: 1074348

Position8

Quantity in drawing2

€80.20

excl. VAT

Out of stock

Tilt axle EC204B

Article no: 1074348

€80.20

Out of stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position13

Quantity in drawing2

€2.20

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Without EC-Oil

€2.20

In stock

Bushing BWG-F 25/31/38/1,5x20

Article no: 6000001

Position21

Quantity in drawing2

€61.50

excl. VAT

In stock

Bushing BWG-F 25/31/38/1,5x20

Article no: 6000001

€61.50

In stock

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Position9

Quantity in drawing10

€2.50

excl. VAT

In stock

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Torque: 136Nm QTY: 8 when EC-Oil

€2.50

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position29

Quantity in drawing1

€2.10

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

€2.10

In stock
