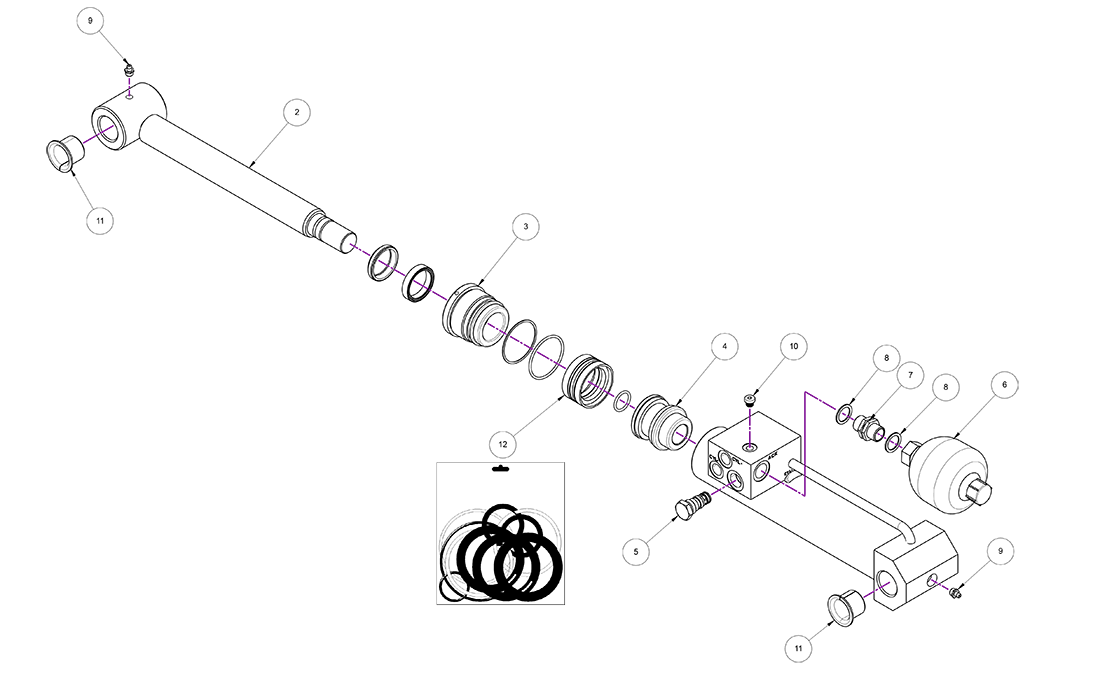

Cylinder TG25HD V2

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Piston rod-grab cylinder-TG25HD

Article no: 1046967

Position2

Quantity in drawing1

Piston rod-grab cylinder-TG25HD

Article no: 1046967

Grab cylinder TG25HD V2 piston rod Ø40 with accumulator

Article no: 1074863

Position1

Quantity in drawing1

Grab cylinder TG25HD V2 piston rod Ø40 with accumulator

Article no: 1074863

(POS. 2-12 included)

Non-return valve SC5H-Q3/1 SK10&15 (1028607)

Article no: 7000001

Position5

Quantity in drawing1

Non-return valve SC5H-Q3/1 SK10&15 (1028607)

Article no: 7000001

Lubrication nipple M10x1 straight

Article no: 711410

Position9

Quantity in drawing2

Lubrication nipple M10x1 straight

Article no: 711410

Accumulator SK/SG 0,32l-145bar

Article no: 790102

Position6

Quantity in drawing1

Accumulator SK/SG 0,32l-145bar

Article no: 790102

Adapter 136-08-08

Article no: 710108

Position7

Quantity in drawing1

Adapter 136-08-08

Article no: 710108

Seal washer GBR08 1/2"

Article no: 710704

Position8

Quantity in drawing2

Seal washer GBR08 1/2"

Article no: 710704

Plug VSTIR18ED 1/8"

Article no: 711503

Position10

Quantity in drawing1

Plug VSTIR18ED 1/8"

Article no: 711503

Bushing WB802 30/34/45x30WF

Article no: 630401

Position11

Quantity in drawing4

Bushing WB802 30/34/45x30WF

Article no: 630401

Piston - Tilt cylinder EC05-15 63/32, Grab cylinder SK05

Article no: 750407

Position4

Quantity in drawing1

Piston - Tilt cylinder EC05-15 63/32, Grab cylinder SK05

Article no: 750407

Loctite 648

Top nut 63/40

Article no: 750305

Position3

Quantity in drawing1

Top nut 63/40

Article no: 750305

Loctite 648

Seal kit-63/40-grab cylinder 20

Article no: 750238

Position12

Quantity in drawing1

Seal kit-63/40-grab cylinder 20

Article no: 750238
