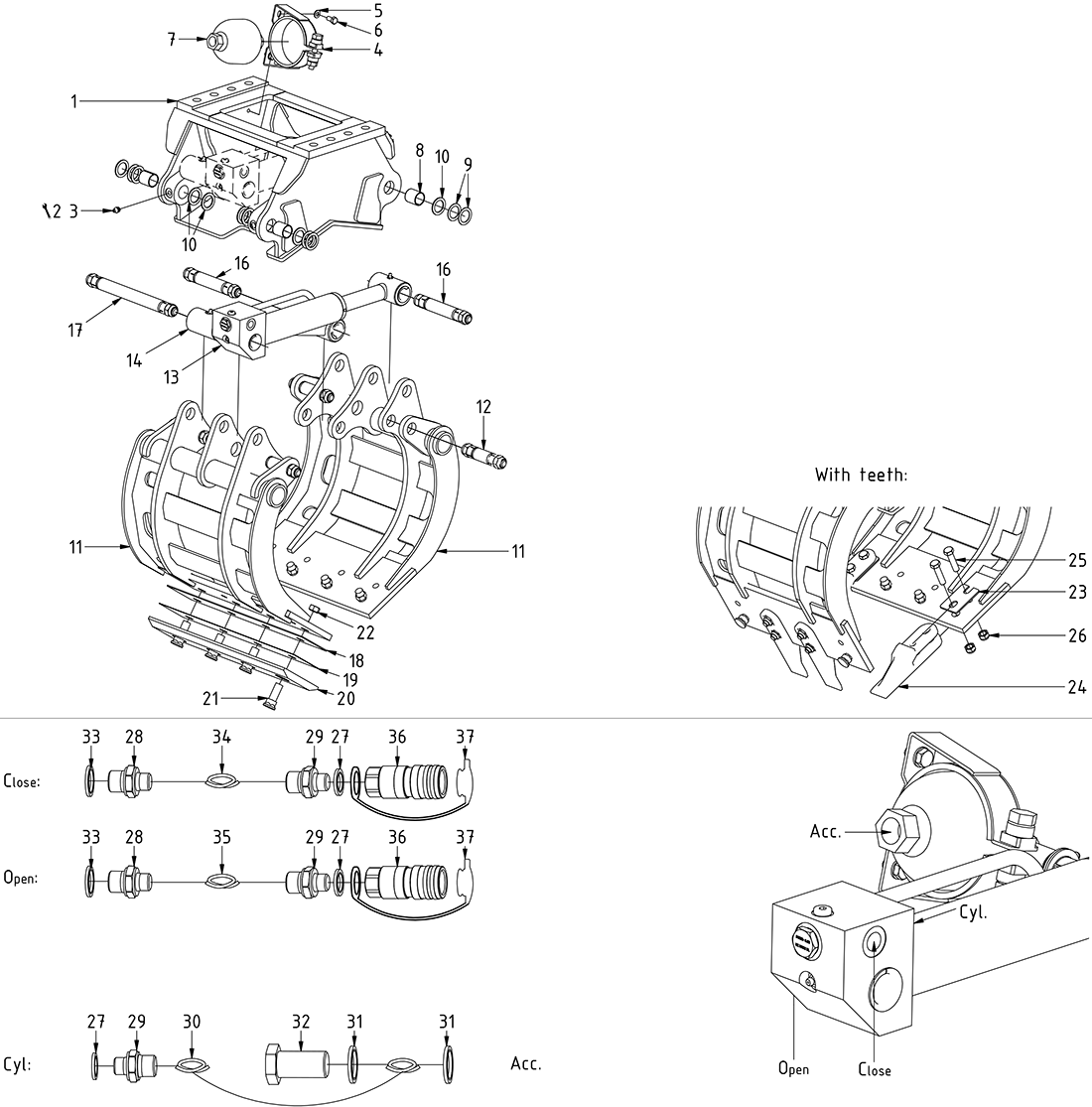

SK02

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Link SK02/SG03

Article no: 1045771

Position14

Quantity in drawing1

Link SK02/SG03

Article no: 1045771

(POS.15 included)

Shim SK02/SG03 Cutting edge 1 mm

Article no: 1047669

Position19

Quantity in drawing1

Shim SK02/SG03 Cutting edge 1 mm

Article no: 1047669

Used if required

Shim SK02/SG03 Cutting edge 2 mm

Article no: 1047670

Position18

Quantity in drawing1

Shim SK02/SG03 Cutting edge 2 mm

Article no: 1047670

Used if required

Cylinder SK02/SG03

Article no: 1047677

Position13

Quantity in drawing1

Cylinder SK02/SG03

Article no: 1047677

See "Grab cylinders"

Cutting edge SK02/SG03 painted

Article no: 1047520

Position20

Quantity in drawing2

Cutting edge SK02/SG03 painted

Article no: 1047520

Expander pin Ø25 L73 SK02/SG03

Article no: 1046824

Position12

Quantity in drawing4

Expander pin Ø25 L73 SK02/SG03

Article no: 1046824

Torque: 175Nm

Screw M6S 12x50 10.9 untreated

Article no: 610168

Position25

Quantity in drawing8

Screw M6S 12x50 10.9 untreated

Article no: 610168

Hose SK02/SG03 open

Article no: 7000780

Position35

Quantity in drawing1

Hose SK02/SG03 open

Article no: 7000780

Hose SK02/SG03 close

Article no: 7000781

Position34

Quantity in drawing1

Hose SK02/SG03 close

Article no: 7000781

Nut UNC 5/8"

Article no: 660407

Position22

Quantity in drawing8

Nut UNC 5/8"

Article no: 660407

QTY: 4 for SG with teeth

Cutting steel bolt UNC 5/8"x52 12.9 untreated

Article no: 660406

Position21

Quantity in drawing8

Cutting steel bolt UNC 5/8"x52 12.9 untreated

Article no: 660406

QTY: 4 for SG with teeth

Tooth SK05/SG06ST

Article no: 660102

Position24

Quantity in drawing4

Tooth SK05/SG06ST

Article no: 660102

Accumulator SK/SG 0,32l-145bar

Article no: 790102

Position7

Quantity in drawing1

Accumulator SK/SG 0,32l-145bar

Article no: 790102

Clamp bracket - Accumulator

Article no: 790103

Position4

Quantity in drawing1

Clamp bracket - Accumulator

Article no: 790103

Dust protection 1/4" Coupling-female 2516

Article no: 790116

Position37

Quantity in drawing2

Dust protection 1/4" Coupling-female 2516

Article no: 790116

Hose

Article no: 740702

Position30

Quantity in drawing1

Hose

Article no: 740702

Shim SK05ST - tooth

Article no: 403226

Position23

Quantity in drawing4

Shim SK05ST - tooth

Article no: 403226

Nut M6M M16 NYLOC 8. FZB (A2K) DIN 985 NV24

Article no: 610926

Position52

Quantity in drawing14

Nut M6M M16 NYLOC 8. FZB (A2K) DIN 985 NV24

Article no: 610926

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position6

Quantity in drawing2

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Seal washer GBR08 1/2"

Article no: 710704

Position31

Quantity in drawing2

Seal washer GBR08 1/2"

Article no: 710704

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position28

Quantity in drawing4

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Quick coupling 1/4" female 2510

Article no: 790110

Position36

Quantity in drawing2

Quick coupling 1/4" female 2510

Article no: 790110

Adapter 135-04-06

Article no: 710118

Position29

Quantity in drawing1

Adapter 135-04-06

Article no: 710118

Lubrication nipple M10x1 straight Lubrication kit

Article no: 790166

Position3

Quantity in drawing6

Lubrication nipple M10x1 straight Lubrication kit

Article no: 790166

Seal washer GBR04 1/4"

Article no: 710702

Position27

Quantity in drawing5

Seal washer GBR04 1/4"

Article no: 710702

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Position5

Quantity in drawing2

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Seal washer GBR06 3/8"

Article no: 710703

Position33

Quantity in drawing2

Seal washer GBR06 3/8"

Article no: 710703

Nut M6LM 6. FZB M12

Article no: 610924

Position26

Quantity in drawing8

Nut M6LM 6. FZB M12

Article no: 610924

Banjo bolt 4451-08

Article no: 710274

Position32

Quantity in drawing1

Banjo bolt 4451-08

Article no: 710274
