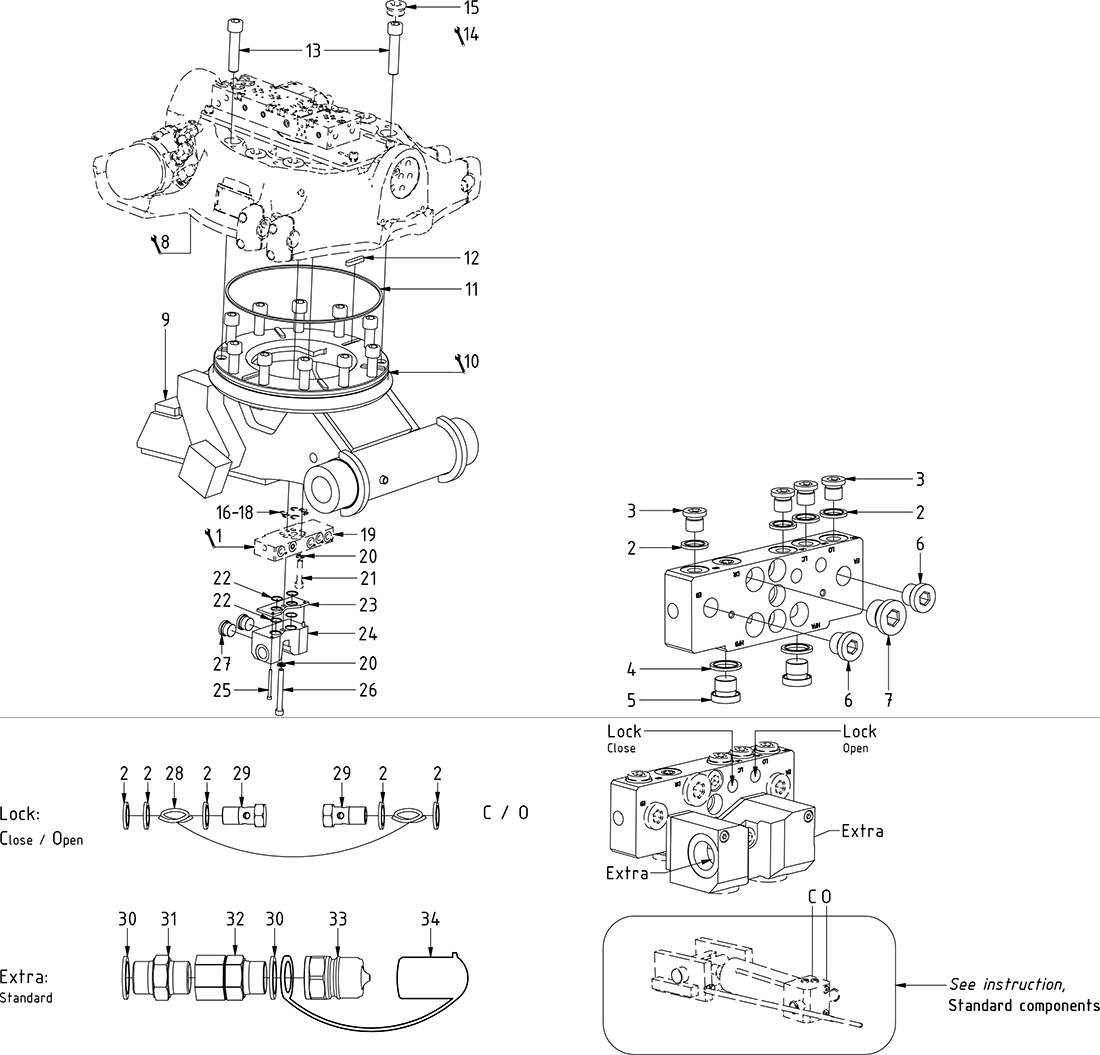

T620V 'ECHF'

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Position16

Quantity in drawing2

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Part of rotator frame assembly

Adapter 136-12-12

Article no: 710126

Position31

Quantity in drawing2

Adapter 136-12-12

Article no: 710126

Plug VSTIR34ED 3/4"

Article no: 711532

Position27

Quantity in drawing2

Plug VSTIR34ED 3/4"

Article no: 711532

Plug VSTIR38ED 3/8"

Article no: 711504

Position6

Quantity in drawing2

Plug VSTIR38ED 3/8"

Article no: 711504

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position12

Quantity in drawing6

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Position17

Quantity in drawing4

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Part of rotator frame assembly

Seal washer GBR04 1/4"

Article no: 710702

Position2

Quantity in drawing14

Seal washer GBR04 1/4"

Article no: 710702

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Position18

Quantity in drawing1

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Part of rotator frame assembly

Plug Din 908 1/4"

Article no: 711505

Position3

Quantity in drawing4

Plug Din 908 1/4"

Article no: 711505

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position20

Quantity in drawing2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Part of rotator frame assembly

Seal washer GBR06 3/8"

Article no: 710703

Position4

Quantity in drawing2

Seal washer GBR06 3/8"

Article no: 710703

Plug VSTIR12ED 1/2"

Article no: 711500

Position7

Quantity in drawing1

Plug VSTIR12ED 1/2"

Article no: 711500

Seal washer GBR12 3/4"

Article no: 710706

Position30

Quantity in drawing4

Seal washer GBR12 3/4"

Article no: 710706

Banjo bolt 4451-04

Article no: 710271

Position29

Quantity in drawing4

Banjo bolt 4451-04

Article no: 710271

Adapter 703-12-12

Article no: 710218

Position32

Quantity in drawing2

Adapter 703-12-12

Article no: 710218

Plug Din 908 3/8"

Article no: 7001657

Position5

Quantity in drawing2

Plug Din 908 3/8"

Article no: 7001657

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Position13

Quantity in drawing12

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Torque: 649Nm

Connection block under ECHF V3

Article no: 1028391

Position19

Quantity in drawing1

Connection block under ECHF V3

Article no: 1028391

Part of rotator frame assembly

Connection block extra HF 3/4" under ECHF V2

Article no: 1031934

Position24

Quantity in drawing1

Connection block extra HF 3/4" under ECHF V2

Article no: 1031934

O-ring 20,35x1,78 NBR 70 shore

Article no: 710974

Position22

Quantity in drawing4

O-ring 20,35x1,78 NBR 70 shore

Article no: 710974

Screw MC6S 5x60 12.9 untreated ISO4762

Article no: 610409

Position25

Quantity in drawing2

Screw MC6S 5x60 12.9 untreated ISO4762

Article no: 610409

Torque: 9,7Nm

Dust protection 3/4" Coupling-male 7526

Article no: 790195

Position34

Quantity in drawing2

Dust protection 3/4" Coupling-male 7526

Article no: 790195

Quick coupling 3/4" male 7520

Article no: 790193

Position33

Quantity in drawing2

Quick coupling 3/4" male 7520

Article no: 790193

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Position15

Quantity in drawing6

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Part of rotator frame assembly

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position11

Quantity in drawing1

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Shim-extra HF under ECHF-5mm

Article no: 1035711

Position23

Quantity in drawing1

Shim-extra HF under ECHF-5mm

Article no: 1035711

Hose lock - S1 ECHF

Article no: 7000056

Position28

Quantity in drawing2

Hose lock - S1 ECHF

Article no: 7000056
