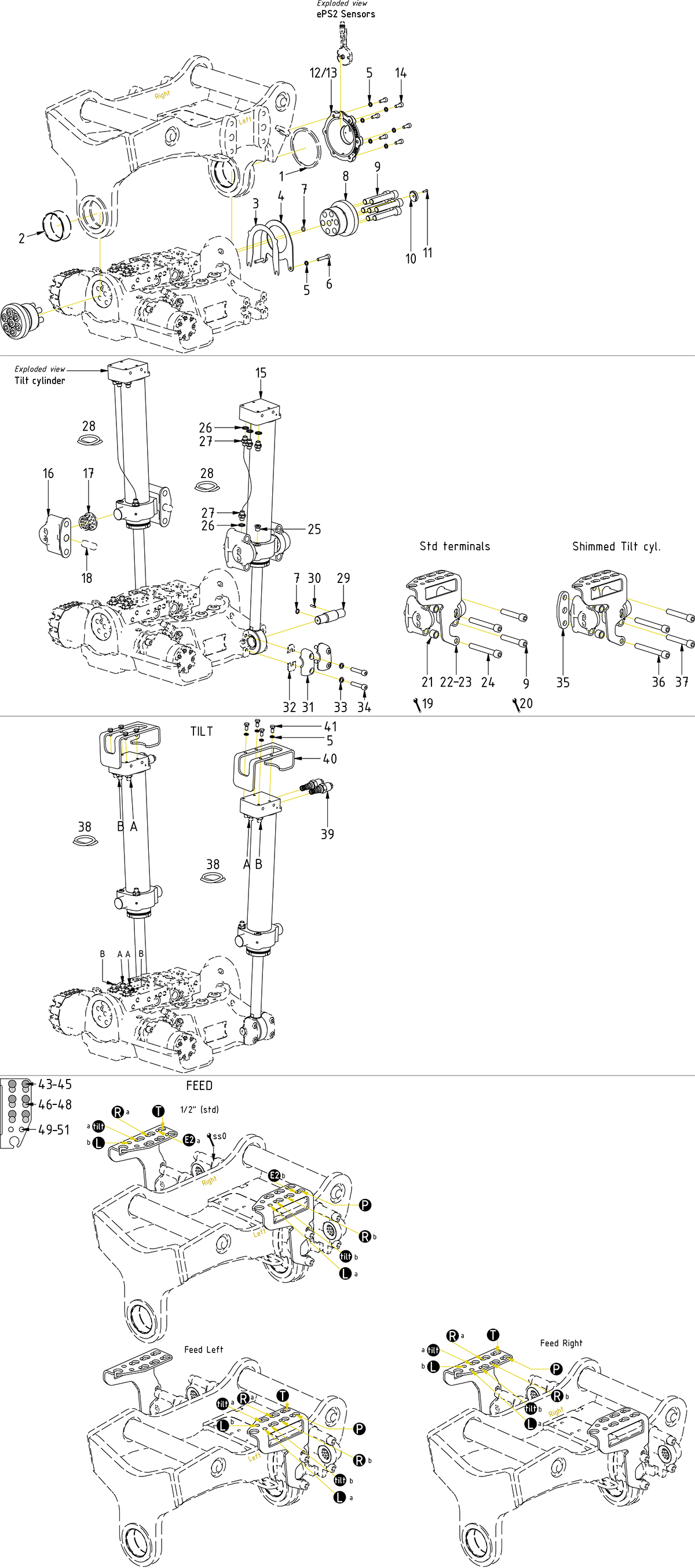

Standard components 'QSM'

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position9

Quantity in drawing18

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Torque: 333Nm

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position43

Quantity in drawing2

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position41

Quantity in drawing8

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position46

Quantity in drawing2

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Adapter bulkhead 1260-04-04

Article no: 710240

Position50

Quantity in drawing2

Adapter bulkhead 1260-04-04

Article no: 710240

Adapter bulkhead 1260-06-32

Article no: 710242

Position47

Quantity in drawing2

Adapter bulkhead 1260-06-32

Article no: 710242

Nut bulkhead adapter 1270-06

Article no: 710252

Position48

Quantity in drawing2

Nut bulkhead adapter 1270-06

Article no: 710252

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position27

Quantity in drawing8

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position7

Quantity in drawing4

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Position17

Quantity in drawing4

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Slotted pin RPE5x20

Article no: 640413

Position30

Quantity in drawing2

Slotted pin RPE5x20

Article no: 640413

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Position29

Quantity in drawing2

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position31

Quantity in drawing4

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

(POS.32 incl.)

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Position32

Quantity in drawing4

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position40

Quantity in drawing2

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position39

Quantity in drawing4

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 45Nm

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Position6

Quantity in drawing2

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Seal washer GBR04 1/4"

Article no: 710702

Position26

Quantity in drawing8

Seal washer GBR04 1/4"

Article no: 710702

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position5

Quantity in drawing16

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position14

Quantity in drawing6

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Plug Din 908 1/4"

Article no: 711505

Position25

Quantity in drawing2

Plug Din 908 1/4"

Article no: 711505

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position33

Quantity in drawing8

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Adapter bulkhead 1260-08-08

Article no: 710244

Position44

Quantity in drawing2

Adapter bulkhead 1260-08-08

Article no: 710244

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position34

Quantity in drawing8

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position49

Quantity in drawing2

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Nut bulkhead adapter 1270-04

Article no: 710250

Position51

Quantity in drawing2

Nut bulkhead adapter 1270-04

Article no: 710250

Nut bulkhead adapter 1270-08

Article no: 710254

Position45

Quantity in drawing2

Nut bulkhead adapter 1270-08

Article no: 710254

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

Position35

Quantity in drawing4

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

For option Shimmed Tilt cyl.

Yoke Bracket tilt cylinder EC209, EC214 cast grease-free

Article no: 1023212

Position16

Quantity in drawing4

Yoke Bracket tilt cylinder EC209, EC214 cast grease-free

Article no: 1023212

(POS.17-18 incl.)

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Position18

Quantity in drawing4

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Position37

Quantity in drawing4

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Torque: 333Nm

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Position36

Quantity in drawing4

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Torque: 333Nm

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Position56

Quantity in drawing4

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

For QS. Torque: 333Nm

Hose bracket 8 Hoses right V2

Article no: 1047138

Position23

Quantity in drawing1

Hose bracket 8 Hoses right V2

Article no: 1047138

Hose bracket 8 Hoses left V2

Article no: 1047137

Position22

Quantity in drawing1

Hose bracket 8 Hoses left V2

Article no: 1047137

Spacer Hose Bracket 20mm

Article no: 1023777

Position21

Quantity in drawing4

Spacer Hose Bracket 20mm

Article no: 1023777

Magnet spacer tilt axle EC214S/EC219S

Article no: 1064202

Position10

Quantity in drawing1

Magnet spacer tilt axle EC214S/EC219S

Article no: 1064202

For EC214S

Screw MC6S 4x14 8.8 FZB ISO4762

Article no: 610420

Position11

Quantity in drawing1

Screw MC6S 4x14 8.8 FZB ISO4762

Article no: 610420

For EC214S

Cover Tilt Axle EC214S/EC219S Cast

Article no: 1065799

Position12

Quantity in drawing1

Cover Tilt Axle EC214S/EC219S Cast

Article no: 1065799

For EC214S

Protection Plate tilt axle EC214/EC219

Article no: 1064717

Position13

Quantity in drawing1

Protection Plate tilt axle EC214/EC219

Article no: 1064717

For EC214/EC214PS Face the groove downwards

Tilt cylinder EC214 for overcenter 730269

Article no: 1041414

Position15

Quantity in drawing2

Tilt cylinder EC214 for overcenter 730269

Article no: 1041414

O-ring 18,64x3,53 HNBR 75 shore

Article no: 712415

Position52

Quantity in drawing2

O-ring 18,64x3,53 HNBR 75 shore

Article no: 712415

Spacer Hose Bracket 39mm

Article no: 1005911

Position54

Quantity in drawing4

Spacer Hose Bracket 39mm

Article no: 1005911

For QS

Hose bracket feed ECHF

Article no: 1027200

Position55

Quantity in drawing2

Hose bracket feed ECHF

Article no: 1027200

For QS

Bushing tilt EC214/EC219 WB802 85/90x35

Article no: 630321

Position2

Quantity in drawing2

Bushing tilt EC214/EC219 WB802 85/90x35

Article no: 630321

(Incl. in Top part)

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Position3

Quantity in drawing1

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Use as required

Tilt axial washer EC214, EC219

Article no: 1016417

Position4

Quantity in drawing1

Tilt axial washer EC214, EC219

Article no: 1016417

Tilt axle EC214S/EC219S

Article no: 1064196

Position8

Quantity in drawing2

Tilt axle EC214S/EC219S

Article no: 1064196

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Position24

Quantity in drawing4

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Torque: 333Nm

Hose Tilt Long - EC214

Article no: 743001

Position38

Quantity in drawing4

Hose Tilt Long - EC214

Article no: 743001

Seal PAK-110x125x7-L

Article no: 1064201

Position1

Quantity in drawing1

Seal PAK-110x125x7-L

Article no: 1064201

NB! Face groove toward top part

Hose Tilt Short - EC214

Article no: 743002

Position28

Quantity in drawing2

Hose Tilt Short - EC214

Article no: 743002
