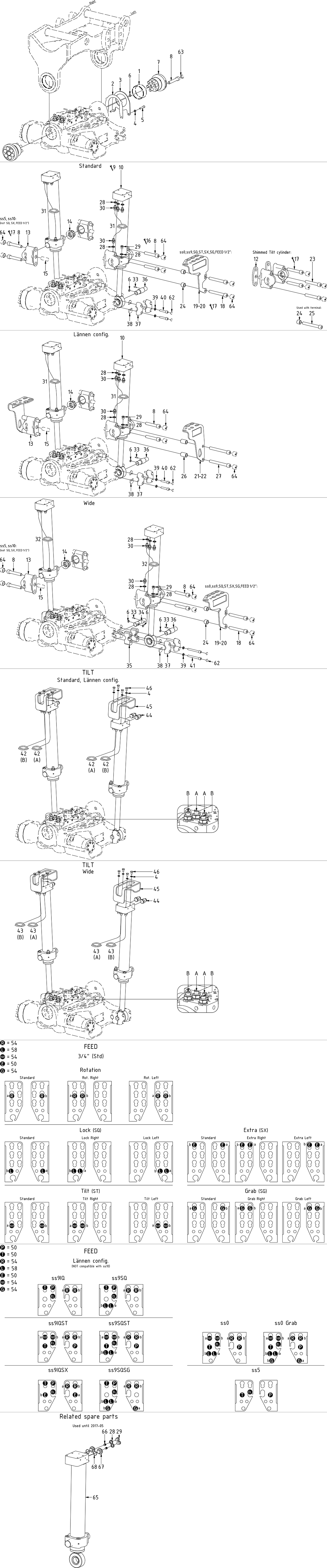

Standard components 'ECHF'

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position8

Quantity in drawing18

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Torque: 333Nm. QTY: 24-26 for Wide

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position51

Quantity in drawing2

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position46

Quantity in drawing8

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position55

Quantity in drawing2

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Adapter bulkhead 1260-04-04

Article no: 710240

Position60

Quantity in drawing2

Adapter bulkhead 1260-04-04

Article no: 710240

Adapter bulkhead 1260-06-32

Article no: 710242

Position56

Quantity in drawing2

Adapter bulkhead 1260-06-32

Article no: 710242

Nut bulkhead adapter 1270-06

Article no: 710252

Position57

Quantity in drawing2

Nut bulkhead adapter 1270-06

Article no: 710252

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position30

Quantity in drawing8

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position6

Quantity in drawing4

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

QTY: 8 for option Wide

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Position14

Quantity in drawing4

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Slotted pin RPE5x20

Article no: 640413

Position33

Quantity in drawing2

Slotted pin RPE5x20

Article no: 640413

QTY: 4 for option Wide

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Position36

Quantity in drawing2

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position37

Quantity in drawing4

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

(POS.38 included)

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Position38

Quantity in drawing4

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position45

Quantity in drawing2

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position44

Quantity in drawing4

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 45Nm

Screw cover M16 - cast yoke & tilt axle

Article no: 1004801

Position63

Quantity in drawing14

Screw cover M16 - cast yoke & tilt axle

Article no: 1004801

Part of make up

Screw cover M10 - clamping half EC206,209,214

Article no: 1021468

Position62

Quantity in drawing8

Screw cover M10 - clamping half EC206,209,214

Article no: 1021468

Part of make up

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Position5

Quantity in drawing2

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Seal washer GBR04 1/4"

Article no: 710702

Position28

Quantity in drawing10

Seal washer GBR04 1/4"

Article no: 710702

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position4

Quantity in drawing10

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Plug Din 908 1/4"

Article no: 711505

Position29

Quantity in drawing6

Plug Din 908 1/4"

Article no: 711505

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position39

Quantity in drawing8

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Adapter bulkhead 1260-08-08

Article no: 710244

Position52

Quantity in drawing2

Adapter bulkhead 1260-08-08

Article no: 710244

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position40

Quantity in drawing8

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position59

Quantity in drawing2

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Nut bulkhead adapter 1270-04

Article no: 710250

Position61

Quantity in drawing2

Nut bulkhead adapter 1270-04

Article no: 710250

Nut bulkhead adapter 1270-08

Article no: 710254

Position53

Quantity in drawing2

Nut bulkhead adapter 1270-08

Article no: 710254

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

Position12

Quantity in drawing4

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

For option Shimmed Tilt cylinder

Yoke Bracket tilt cylinder EC209, EC214 cast grease-free

Article no: 1023212

Position13

Quantity in drawing4

Yoke Bracket tilt cylinder EC209, EC214 cast grease-free

Article no: 1023212

(POS.14-15 included)

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Position15

Quantity in drawing4

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Screw cover M16

Article no: 611302

Position64

Quantity in drawing8

Screw cover M16

Article no: 611302

Part of make up

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Position23

Quantity in drawing4

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Torque: 333Nm

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Position25

Quantity in drawing4

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Torque: 333Nm

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Position27

Quantity in drawing8

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Torque: 333Nm

Plug 1/8" BSPT

Article no: 711523

Position66

Quantity in drawing4

Plug 1/8" BSPT

Article no: 711523

Only for ss0, ss3 R-X, ss5, ss10

Plug M20x1,5 tilt cylinder EC206, EC209 (overcenter 730269)

Article no: 1022297

Position67

Quantity in drawing4

Plug M20x1,5 tilt cylinder EC206, EC209 (overcenter 730269)

Article no: 1022297

Only for ss0, ss3 R-X, ss5, ss10 (POS.68 included)

Hose bracket 8 Hoses right V2

Article no: 1047138

Position20

Quantity in drawing1

Hose bracket 8 Hoses right V2

Article no: 1047138

Hose bracket 8 Hoses left V2

Article no: 1047137

Position19

Quantity in drawing1

Hose bracket 8 Hoses left V2

Article no: 1047137

Spacer Hose Bracket 20mm

Article no: 1023777

Position24

Quantity in drawing4

Spacer Hose Bracket 20mm

Article no: 1023777

Tilt cylinder EC214 for overcenter 730269

Article no: 1041414

Position10

Quantity in drawing2

Tilt cylinder EC214 for overcenter 730269

Article no: 1041414

See "Tilt cylinders"

Spacer Hose Bracket 39mm

Article no: 1005911

Position26

Quantity in drawing8

Spacer Hose Bracket 39mm

Article no: 1005911

Bushing tilt EC214/EC219 WB802 85/90x35

Article no: 630321

Position1

Quantity in drawing2

Bushing tilt EC214/EC219 WB802 85/90x35

Article no: 630321

(Included in Top part)

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Position2

Quantity in drawing4

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Use if required

Tilt axial washer EC214, EC219

Article no: 1016417

Position3

Quantity in drawing1

Tilt axial washer EC214, EC219

Article no: 1016417

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Position18

Quantity in drawing4

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Torque: 333Nm

Hose Tilt Long - EC214

Article no: 743001

Position42

Quantity in drawing4

Hose Tilt Long - EC214

Article no: 743001

Axle for spacer EC209W, EC214W

Article no: 1030070

Position34

Quantity in drawing2

Axle for spacer EC209W, EC214W

Article no: 1030070

Spacer tilt cylinder EC209W, EC214W

Article no: 1030069

Position35

Quantity in drawing4

Spacer tilt cylinder EC209W, EC214W

Article no: 1030069

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Position41

Quantity in drawing8

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Torque: 79Nm

Hose tilt - EC214 - long wide

Article no: 7000167

Position43

Quantity in drawing4

Hose tilt - EC214 - long wide

Article no: 7000167

Tilt axle EC214, EC219

Article no: 1016416

Position7

Quantity in drawing2

Tilt axle EC214, EC219

Article no: 1016416

Tilt cylinder EC214W

Article no: 1030380

Position11

Quantity in drawing2

Tilt cylinder EC214W

Article no: 1030380

See "Tilt cylinders"

Hose bracket Lännen left

Article no: 1045618

Position21

Quantity in drawing1

Hose bracket Lännen left

Article no: 1045618

Hose bracket Lännen right

Article no: 1045619

Position22

Quantity in drawing1

Hose bracket Lännen right

Article no: 1045619

Tilt cylinder EC214

Article no: 1024186

Position65

Quantity in drawing2

Tilt cylinder EC214

Article no: 1024186

Replaced by POS.10 from 2017-05

Hose Tilt Short - EC214

Article no: 743002

Position31

Quantity in drawing2

Hose Tilt Short - EC214

Article no: 743002

Hose tilt - EC214 - short wide

Article no: 7000166

Position32

Quantity in drawing2

Hose tilt - EC214 - short wide

Article no: 7000166

O-ring 18x2 NBR 70 shore EC05 motor

Article no: 710955

Position68

Quantity in drawing4

O-ring 18x2 NBR 70 shore EC05 motor

Article no: 710955
