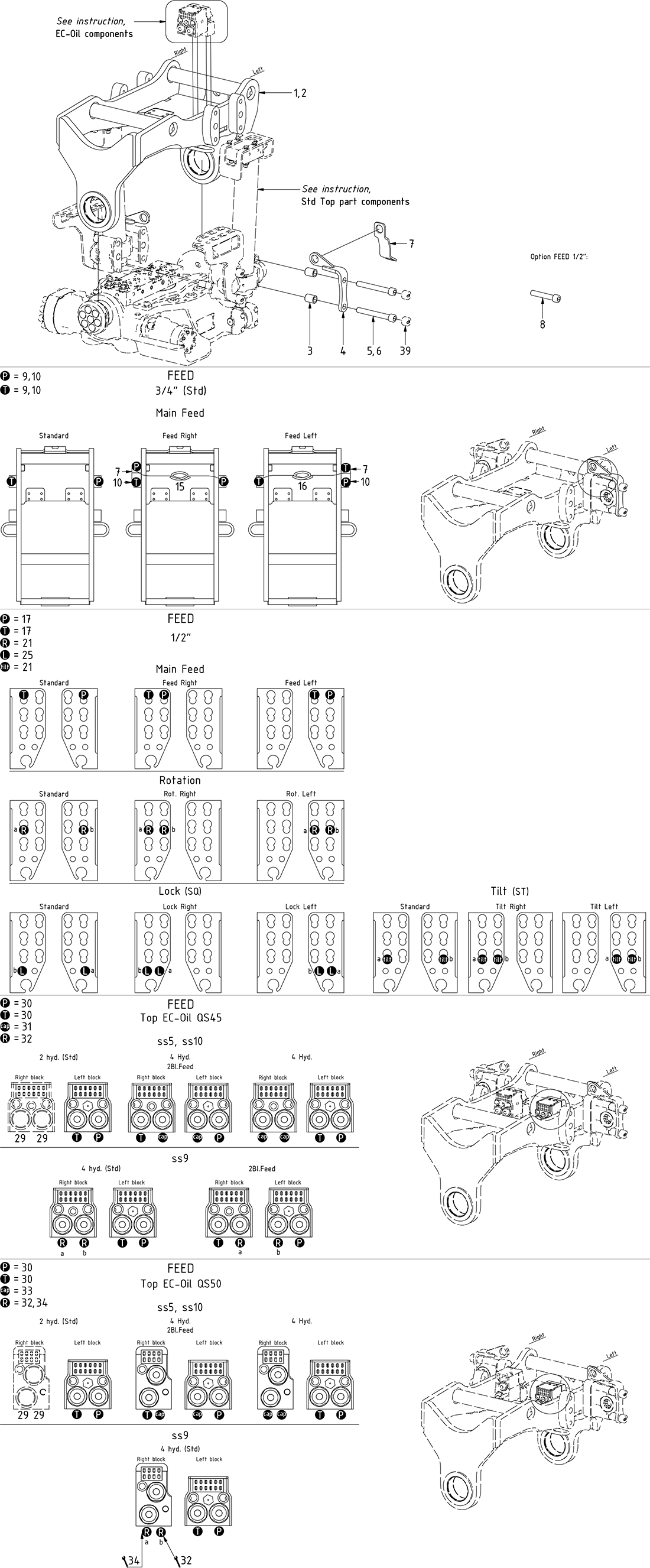

QS45/50 'ECHF'

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position26

Quantity in drawing2

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Nut bulkhead adapter 1270-04

Article no: 710250

Position28

Quantity in drawing2

Nut bulkhead adapter 1270-04

Article no: 710250

Adapter 401-06-06 90°

Article no: 710152

Position32

Quantity in drawing2

Adapter 401-06-06 90°

Article no: 710152

Adapter bulkhead 1260-12-12

Article no: 712210

Position12

Quantity in drawing2

Adapter bulkhead 1260-12-12

Article no: 712210

Plug VSTIR38ED 3/8"

Article no: 711504

Position29

Quantity in drawing2

Plug VSTIR38ED 3/8"

Article no: 711504

Adapter 136-06-06

Article no: 710106

Position36

Quantity in drawing2

Adapter 136-06-06

Article no: 710106

Seal washer GBR06 3/8"

Article no: 710703

Position35

Quantity in drawing2

Seal washer GBR06 3/8"

Article no: 710703

Adapter bulkhead 1260-08-08

Article no: 710244

Position19

Quantity in drawing2

Adapter bulkhead 1260-08-08

Article no: 710244

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position8

Quantity in drawing4

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

For FEED 1/2". Replaces POS.3-7 Torque: 333Nm

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position22

Quantity in drawing2

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position18

Quantity in drawing2

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Adapter bulkhead extended 1260-12-57

Article no: 712227

Position13

Quantity in drawing1

Adapter bulkhead extended 1260-12-57

Article no: 712227

Adapter bulkhead 1260-06-32

Article no: 710242

Position23

Quantity in drawing2

Adapter bulkhead 1260-06-32

Article no: 710242

Nut bulkhead adapter 1270-06

Article no: 710252

Position24

Quantity in drawing2

Nut bulkhead adapter 1270-06

Article no: 710252

Adapter bulkhead 1260-04-04

Article no: 710240

Position27

Quantity in drawing2

Adapter bulkhead 1260-04-04

Article no: 710240

Cable tie 7,8x360

Article no: 1021587

Position38

Quantity in drawing1

Cable tie 7,8x360

Article no: 1021587

Protective cover 0301550600

Article no: 711626

Position37

Quantity in drawing2

Protective cover 0301550600

Article no: 711626

Not for SX

Adapter 401-08-06 90°

Article no: 7000233

Position30

Quantity in drawing2

Adapter 401-08-06 90°

Article no: 7000233

Nut bulkhead adapter 1270-08

Article no: 710254

Position20

Quantity in drawing2

Nut bulkhead adapter 1270-08

Article no: 710254

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Position5

Quantity in drawing4

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Torque: 333Nm

Spacer Hose Bracket 32mm

Article no: 1028040

Position3

Quantity in drawing4

Spacer Hose Bracket 32mm

Article no: 1028040

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Position6

Quantity in drawing4

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

For option Shimmed Tilt cylinder Torque: 333Nm

Screw cover M16

Article no: 611302

Position39

Quantity in drawing8

Screw cover M16

Article no: 611302

Part of make up

Hose

Article no: 743012

Position16

Quantity in drawing1

Hose

Article no: 743012

Nut bulkhead adapter 1270-12

Article no: 712211

Position14

Quantity in drawing2

Nut bulkhead adapter 1270-12

Article no: 712211

Top part QS50 EC214

Article no: 1029762

Position2

Quantity in drawing1

Top part QS50 EC214

Article no: 1029762

Top part QS45 EC214S

Article no: 1064198

Position1

Quantity in drawing1

Top part QS45 EC214S

Article no: 1064198

Hose bracket ECHF all R/L

Article no: 1028319

Position7

Quantity in drawing1

Hose bracket ECHF all R/L

Article no: 1028319

Only for Feed Right/Left

Washer NL1"-DPE 27,9x39x3,4

Article no: 611095

Position11

Quantity in drawing2

Washer NL1"-DPE 27,9x39x3,4

Article no: 611095

Hose bracket feed ECHF

Article no: 1027200

Position4

Quantity in drawing2

Hose bracket feed ECHF

Article no: 1027200
