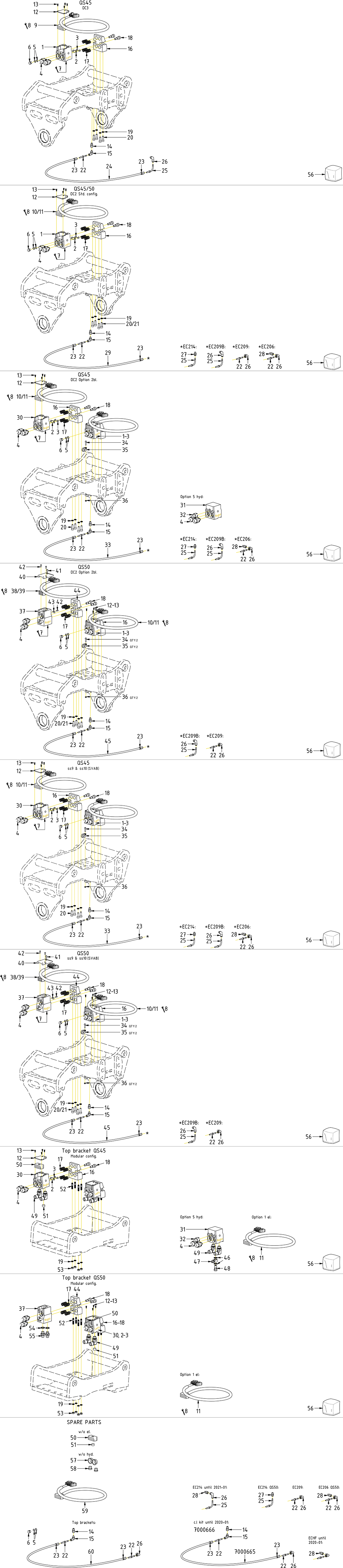

Top ECO45/50 W

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

Position20

Quantity in drawing4

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

Torque: 40Nm

Rubber Steel Clamp Ø16

Article no: 6000009

Position35

Quantity in drawing1

Rubber Steel Clamp Ø16

Article no: 6000009

Face downwards

Banjo bolt 4451-04

Article no: 710271

Position48

Quantity in drawing1

Banjo bolt 4451-04

Article no: 710271

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Position36

Quantity in drawing1

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Pipe Plug DIN 906 M16x1,5

Article no: 711529

Position51

Quantity in drawing1

Pipe Plug DIN 906 M16x1,5

Article no: 711529

Plug VSTIR38ED 3/8"

Article no: 711504

Position58

Quantity in drawing2

Plug VSTIR38ED 3/8"

Article no: 711504

Adapter 136-06-06

Article no: 710106

Position55

Quantity in drawing2

Adapter 136-06-06

Article no: 710106

Screw MKFT M4x12 A4 DIN 966

Article no: 6000121

Position13

Quantity in drawing4

Screw MKFT M4x12 A4 DIN 966

Article no: 6000121

Tube sleeve straight Push-In-30mm

Article no: 790175

Position22

Quantity in drawing1

Tube sleeve straight Push-In-30mm

Article no: 790175

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

Position3

Quantity in drawing2

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

Push-in Coupling R1/8" PGE06KR lubrication kit

Article no: 790172

Position27

Quantity in drawing1

Push-in Coupling R1/8" PGE06KR lubrication kit

Article no: 790172

Loxeal 58-12

Seal washer GBR04 1/4"

Article no: 710702

Position46

Quantity in drawing2

Seal washer GBR04 1/4"

Article no: 710702

Seal washer GBR06 3/8"

Article no: 710703

Position54

Quantity in drawing2

Seal washer GBR06 3/8"

Article no: 710703

Tube sleeve 90° Push-In

Article no: 7000318

Position25

Quantity in drawing1

Tube sleeve 90° Push-In

Article no: 7000318

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position19

Quantity in drawing4

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Extender 18mm M8x1

Article no: 7000688

Position14

Quantity in drawing1

Extender 18mm M8x1

Article no: 7000688

Loxeal 58-12

Screw MC6S 5x20 12.9 untreated ISO4762

Article no: 610400

Position34

Quantity in drawing1

Screw MC6S 5x20 12.9 untreated ISO4762

Article no: 610400

Coupling ECO45/50 3/8" male - top bracket V2

Article no: 1028873

Position4

Quantity in drawing2

Coupling ECO45/50 3/8" male - top bracket V2

Article no: 1028873

Torque: 60Nm

Washer copper 14x10x0,9

Article no: 6000065

Position5

Quantity in drawing2

Washer copper 14x10x0,9

Article no: 6000065

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Position6

Quantity in drawing1

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Loxeal 58-12. Torque: 30Nm

Stud bolt M8x30 10.9 DIN939

Article no: 611185

Position52

Quantity in drawing4

Stud bolt M8x30 10.9 DIN939

Article no: 611185

Nut steel M8 10. untreated DIN 934

Article no: 611187

Position53

Quantity in drawing4

Nut steel M8 10. untreated DIN 934

Article no: 611187

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

Position23

Quantity in drawing2

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

Hose Bulk - HT 8,3x4

Article no: 7001303

Position24

Quantity in drawing1

Hose Bulk - HT 8,3x4

Article no: 7001303

EC209B: 845mm

Protection Plug TECO 45/50 hydraulic

Article no: 7000152

Position57

Quantity in drawing2

Protection Plug TECO 45/50 hydraulic

Article no: 7000152

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

Position26

Quantity in drawing1

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

Loxeal 58-12

Screw MC6S 6x12 12.9 untreated ISO4762

Article no: 610412

Position41

Quantity in drawing1

Screw MC6S 6x12 12.9 untreated ISO4762

Article no: 610412

Loxeal 55-02

Transport Protection ECO45/50 TECO

Article no: 1035199

Position56

Quantity in drawing1

Transport Protection ECO45/50 TECO

Article no: 1035199

Part of make up

Power plug ECO60 W Top QS60 QSM ECHF

Article no: 1042240

Position59

Quantity in drawing1

Power plug ECO60 W Top QS60 QSM ECHF

Article no: 1042240

Used until 2021-08 Cable gland torque: 6Nm

Block ECO45 W-top bracket -3hy

Article no: 1054418

Position31

Quantity in drawing1

Block ECO45 W-top bracket -3hy

Article no: 1054418

(POS.4, 33 incl.)

Extender 25/17mm KR1/8" - R1/8"

Article no: 7000578

Position28

Quantity in drawing1

Extender 25/17mm KR1/8" - R1/8"

Article no: 7000578

Loxeal 58-12

Coupling ECO 1/4" male

Article no: 1053693

Position32

Quantity in drawing1

Coupling ECO 1/4" male

Article no: 1053693

Block ECO50 W-top bracket-2hy

Article no: 1048074

Position37

Quantity in drawing1

Block ECO50 W-top bracket-2hy

Article no: 1048074

(POS.4 incl.)

Power plug ECO50 W Top QS50 QSM Right

Article no: 8002006

Position38

Quantity in drawing1

Power plug ECO50 W Top QS50 QSM Right

Article no: 8002006

For EC209B

Power plug ECO50 W Top QS50 Right

Article no: 1045168

Position39

Quantity in drawing1

Power plug ECO50 W Top QS50 Right

Article no: 1045168

Cover block-power plug-ECO50 W-top bracket

Article no: 1041646

Position40

Quantity in drawing1

Cover block-power plug-ECO50 W-top bracket

Article no: 1041646

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

Position42

Quantity in drawing3

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

Loxeal 55-02

Clamp washer for cable-ECO50 W right-top bracket

Article no: 1045180

Position43

Quantity in drawing1

Clamp washer for cable-ECO50 W right-top bracket

Article no: 1045180

Attachment block ECO50 W right-top bracket

Article no: 1041645

Position44

Quantity in drawing1

Attachment block ECO50 W right-top bracket

Article no: 1041645

Adapter 831-04-04

Article no: 710149

Position47

Quantity in drawing1

Adapter 831-04-04

Article no: 710149

Adapter 401-08-06 90°

Article no: 7000233

Position49

Quantity in drawing2

Adapter 401-08-06 90°

Article no: 7000233

Power plug ECO W - Plug top bracket

Article no: 1042918

Position50

Quantity in drawing1

Power plug ECO W - Plug top bracket

Article no: 1042918

Block ECO45/50 W-top bracket-2hy 1cl V2

Article no: 1074024

Position1

Quantity in drawing1

Block ECO45/50 W-top bracket-2hy 1cl V2

Article no: 1074024

(POS.4-6 incl.)

Cable clamp ECO45/60/70/80 W-top bracket

Article no: 1074897

Position2

Quantity in drawing1

Cable clamp ECO45/60/70/80 W-top bracket

Article no: 1074897

Power plug ECO45/50 W Top QS45 DC3

Article no: 8002244

Position9

Quantity in drawing1

Power plug ECO45/50 W Top QS45 DC3

Article no: 8002244

Power plug ECO45/50 W Top QS45/50 QSM(209) ECHF

Article no: 8001089

Position10

Quantity in drawing1

Power plug ECO45/50 W Top QS45/50 QSM(209) ECHF

Article no: 8001089

For EC214, EC209B

Power plug ECO45/50 W Top EC206/EC209 6-ch

Article no: 1042241

Position11

Quantity in drawing1

Power plug ECO45/50 W Top EC206/EC209 6-ch

Article no: 1042241

For EC206, EC209, Top bracket

Cover plate Power plug-ECO45/50 W-top bracket

Article no: 1041099

Position12

Quantity in drawing1

Cover plate Power plug-ECO45/50 W-top bracket

Article no: 1041099

Attachment block ECO45 W-top bracket

Article no: 1041097

Position16

Quantity in drawing1

Attachment block ECO45 W-top bracket

Article no: 1041097

Push-in swivel 90° M8x1 hose kit Quick hitch lubrication ECO

Article no: 790173

Position15

Quantity in drawing1

Push-in swivel 90° M8x1 hose kit Quick hitch lubrication ECO

Article no: 790173

Loxeal 58-12

Spring - 18x35 - Top ECO45-80

Article no: 1024794

Position17

Quantity in drawing4

Spring - 18x35 - Top ECO45-80

Article no: 1024794

Screw-Shoulder screw Ø12x16/M10 12.9 ISO7379

Article no: 611708

Position18

Quantity in drawing2

Screw-Shoulder screw Ø12x16/M10 12.9 ISO7379

Article no: 611708

Loxeal 83-52

Screw K6S 8x25 10.9 untreated ISO 7380

Article no: 611814

Position21

Quantity in drawing4

Screw K6S 8x25 10.9 untreated ISO 7380

Article no: 611814

For EC209 (6-ch). Torque: 34Nm
