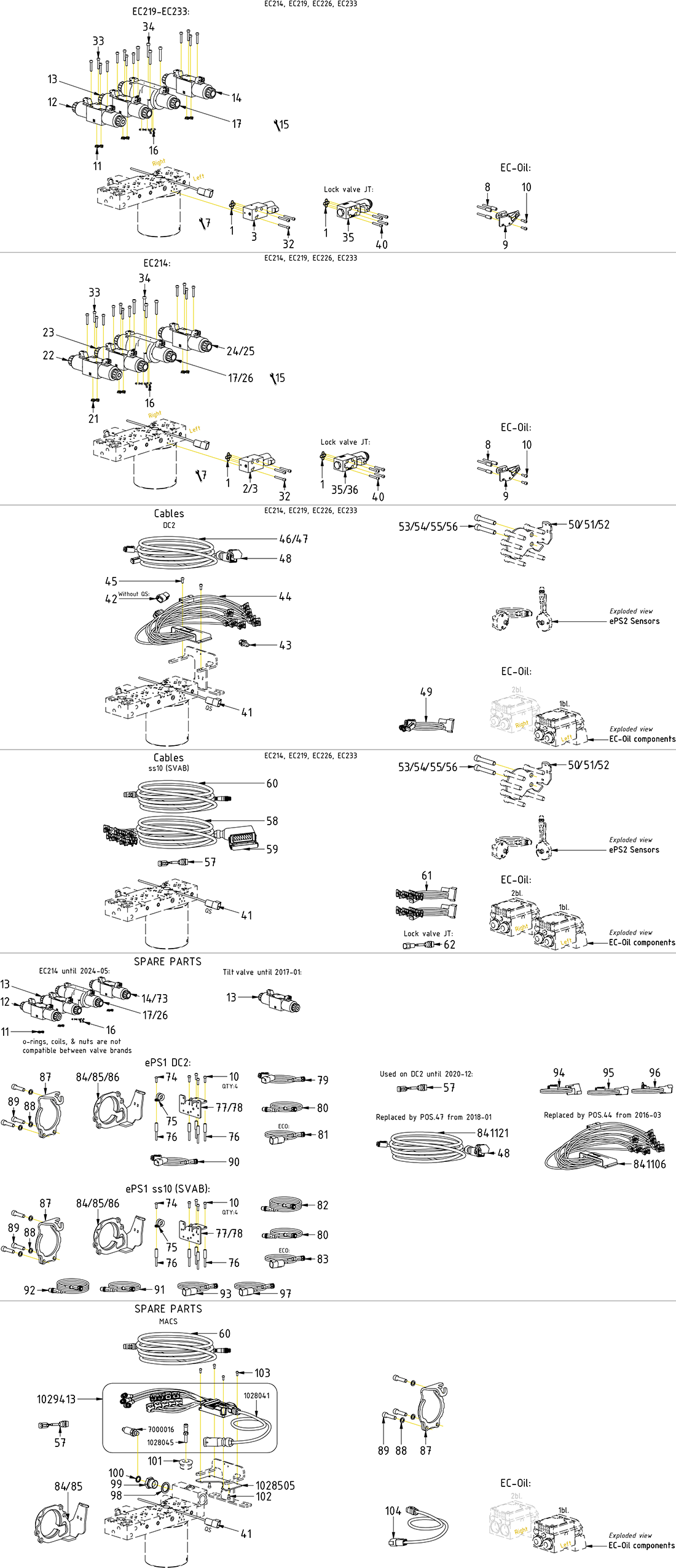

ss10 (DC2/SVAB) 'ECHF'

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position45

Quantity in drawing2

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Rubber Steel Clamp Ø16

Article no: 6000009

Position75

Quantity in drawing1

Rubber Steel Clamp Ø16

Article no: 6000009

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position21

Quantity in drawing12

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Nut bulkhead adapter 1270-04

Article no: 710250

Position6

Quantity in drawing1

Nut bulkhead adapter 1270-04

Article no: 710250

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position88

Quantity in drawing3

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position60

Quantity in drawing1

Adapter cable M12 8P-DTM 6S

Article no: 842148

For QS

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position74

Quantity in drawing1

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Position69

Quantity in drawing4

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Torque: 17Nm

Seal washer GBR04 1/4"

Article no: 710702

Position100

Quantity in drawing1

100

Seal washer GBR04 1/4"

Article no: 710702

Used as shim if required

Seal washer GBR12 3/4"

Article no: 710706

Position98

Quantity in drawing1

Seal washer GBR12 3/4"

Article no: 710706

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position33

Quantity in drawing12

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position10

Quantity in drawing2

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Torque: 9,7Nm

Screw MC6S 6x40 12.9 untreated ISO4762

Article no: 610418

Position34

Quantity in drawing4

Screw MC6S 6x40 12.9 untreated ISO4762

Article no: 610418

Torque: 17Nm

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position56

Quantity in drawing12

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

For EC233. Torque: 136Nm

Screw MC6S 10x40 12.9 untreated ISO4762

Article no: 610453

Position89

Quantity in drawing3

Screw MC6S 10x40 12.9 untreated ISO4762

Article no: 610453

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position63

Quantity in drawing1

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut & o-ring with chokevalve incl. Assemble with POS.37/38

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position64

Quantity in drawing1

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Not for HS08, Arden, MSWH050 O-ring incl.

Coil NG4 12V JT

Article no: 730313

Position38

Quantity in drawing1

Coil NG4 12V JT

Article no: 730313

Plug JT

Article no: 1045154

Position71

Quantity in drawing1

Plug JT

Article no: 1045154

Plug connector "9" & "10"

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Position47

Quantity in drawing1

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

For Lock valve JT

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position2

Quantity in drawing1

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

For QS, CW, ECPUP, ss SIQ (POS.1, 4, 6 incl.)

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position1

Quantity in drawing8

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position32

Quantity in drawing3

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position4

Quantity in drawing1

Coil NG4 IQS lock 12V DT

Article no: 1042065

Nut directional valve NG4

Article no: 1006785

Position39

Quantity in drawing1

Nut directional valve NG4

Article no: 1006785

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position40

Quantity in drawing4

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position48

Quantity in drawing1

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

Branch cable CAN DTM-DT/M12-ECO W ePS EC209B-EC233

Article no: 8001847

Position49

Quantity in drawing1

Branch cable CAN DTM-DT/M12-ECO W ePS EC209B-EC233

Article no: 8001847

For EC-Oil. Instead of agg.cable

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Position79

Quantity in drawing1

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

Position83

Quantity in drawing1

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

For ECO w. ePS. Instead of POS.82

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position11

Quantity in drawing12

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Nut directional valve Argo Hytos

Article no: 730135

Position20

Quantity in drawing8

Nut directional valve Argo Hytos

Article no: 730135

QTY: 2 for EC214

Coil 12V NG6 JT on/off

Article no: 730117

Position27

Quantity in drawing2

Coil 12V NG6 JT on/off

Article no: 730117

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position102

Quantity in drawing2

102

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position53

Quantity in drawing8

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

For EC214. Torque: 136Nm

Directional valve NG4 lock 12V JT

Article no: 730312

Position36

Quantity in drawing1

Directional valve NG4 lock 12V JT

Article no: 730312

(POS.1, 38, 39 incl.)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

Position25

Quantity in drawing1

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

EC214 (POS.21, 30, 31 incl.)

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position23

Quantity in drawing1

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

EC214 (POS.21, 28, 31 incl.)

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position57

Quantity in drawing1

Adapter cable JT 2P-DT 2S

Article no: 1017478

(Previously also for DC2)

Protection plug for DTM06-6S

Article no: 8000090

Position42

Quantity in drawing1

Protection plug for DTM06-6S

Article no: 8000090

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

Position46

Quantity in drawing1

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position59

Quantity in drawing1

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

(Incl. with agg.cable)

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position61

Quantity in drawing2

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For EC-Oil. Instead of POS.57-60

Jumper JT 2P POS:1-2

Article no: 1018662

Position43

Quantity in drawing1

Jumper JT 2P POS:1-2

Article no: 1018662

Plug JT connector "1"

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position13

Quantity in drawing1

Directional valve NG6 prop 12V engcon JT

Article no: 730190

EC219-233 (POS.11, 18, 20 incl.)

Coil 12V NG6 prop JT

Article no: 730192

Position18

Quantity in drawing4

Coil 12V NG6 prop JT

Article no: 730192

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position73

Quantity in drawing1

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

(POS.11, 27, 20 incl.)

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Position82

Quantity in drawing1

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

Position103

Quantity in drawing4

103

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Position54

Quantity in drawing8

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

For EC219. Torque: 136Nm

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Position44

Quantity in drawing1

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position76

Quantity in drawing5

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Torque: 9,7Nm

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

Position3

Quantity in drawing1

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

For QS, CW, ECPUP, ss SIQ (POS.1, 5, 6 incl.)

Directional valve NG4 lock 24V JT

Article no: 730310

Position35

Quantity in drawing1

Directional valve NG4 lock 24V JT

Article no: 730310

(POS.1, 37, 39 incl.)

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

Position22

Quantity in drawing1

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

EC214 (POS.21, 28, 31 incl.)

Directional valve NG6 24V JT ATOS

Article no: 7001616

Position24

Quantity in drawing1

Directional valve NG6 24V JT ATOS

Article no: 7001616

EC214 (POS.21, 29, 31 incl.)

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Position80

Quantity in drawing1

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Adapter cable DTM 6P-M12 5S

Article no: 8002459

Position81

Quantity in drawing1

Adapter cable DTM 6P-M12 5S

Article no: 8002459

NB! Only compatible with 8002477

Breakout cable CAN DT-DC2 EC 0,15/0,98m

Article no: 842173

Position90

Quantity in drawing1

Breakout cable CAN DT-DC2 EC 0,15/0,98m

Article no: 842173

Replaced by POS.79 from 2019-10

Directional valve NG6 24V

Article no: 730103

Position14

Quantity in drawing1

Directional valve NG6 24V

Article no: 730103

EC219-233 (POS.11, 19, 20 incl.)

Resistor cable 120ohm M12 5S-M12 5S-0,95m

Article no: 842188

Position91

Quantity in drawing1

Resistor cable 120ohm M12 5S-M12 5S-0,95m

Article no: 842188

Replaced by POS.80 from 2019-10

Extension cable 5-pole M12-FULL 3m Robo hose

Article no: 842187

Position92

Quantity in drawing1

Extension cable 5-pole M12-FULL 3m Robo hose

Article no: 842187

Replaced by POS.82 from 2019-10

Cable ePS ECO W tiltrotator ss5/ss9/SVAB

Article no: 1042245

Position93

Quantity in drawing1

Cable ePS ECO W tiltrotator ss5/ss9/SVAB

Article no: 1042245

Replaced by POS.83 from 2019-10

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position84

Quantity in drawing1

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Adapter cable DTM 12P-DT 4S-ECO W DC3

Article no: 1042249

Position94

Quantity in drawing1

Adapter cable DTM 12P-DT 4S-ECO W DC3

Article no: 1042249

Used until 2018-08

Adapter cable DTM 6P-JT 2S-ECO DTM 1 & 6 Connected

Article no: 1042250

Position96

Quantity in drawing1

Adapter cable DTM 6P-JT 2S-ECO DTM 1 & 6 Connected

Article no: 1042250

Replaced by POS.95 from 2017-10

Cable ePS ECO tiltrotator ss5/ss9/SVAB

Article no: 1033021

Position97

Quantity in drawing1

Cable ePS ECO tiltrotator ss5/ss9/SVAB

Article no: 1033021

Replaced by POS.93 from 2017-10

Adapter cable DTM 12P-DT 6S-MACS ECO W

Article no: 1043277

Position104

Quantity in drawing1

104

Adapter cable DTM 12P-DT 6S-MACS ECO W

Article no: 1043277

For ECO. Instead of 1028041+POS.60

Coil NG4 24V JT

Article no: 730311

Position37

Quantity in drawing1

Coil NG4 24V JT

Article no: 730311

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

Position12

Quantity in drawing1

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

EC219-233 (POS.11, 18, 20 incl.)

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position50

Quantity in drawing1

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Coil 12V NG6 prop JT ATOS

Article no: 7001734

Position28

Quantity in drawing4

Coil 12V NG6 prop JT ATOS

Article no: 7001734

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Position30

Quantity in drawing2

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Position29

Quantity in drawing2

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Nut directional valve ATOS

Article no: 7001887

Position31

Quantity in drawing6

Nut directional valve ATOS

Article no: 7001887

Coil NG4 IQS lock 24V DT

Article no: 1042066

Position5

Quantity in drawing1

Coil NG4 IQS lock 24V DT

Article no: 1042066

Screw Valve Distance 5x39

Article no: 1047243

Position8

Quantity in drawing3

Screw Valve Distance 5x39

Article no: 1047243

Torque: 9,7Nm

Coil 24V NG6 JT on/off

Article no: 730118

Position19

Quantity in drawing4

Coil 24V NG6 JT on/off

Article no: 730118

QTY: 2 for EC214

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

Position78

Quantity in drawing1

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

For Trimble

Protection sensor -ePS,SVAB MACS-EC233

Article no: 1040940

Position85

Quantity in drawing1

Protection sensor -ePS,SVAB MACS-EC233

Article no: 1040940

Protection sensor -ePS V2-EC226

Article no: 1055677

Position86

Quantity in drawing1

Protection sensor -ePS V2-EC226

Article no: 1055677

Unit cable ss10 JT EC214-EC233-4,5m

Article no: 1015196

Position58

Quantity in drawing1

Unit cable ss10 JT EC214-EC233-4,5m

Article no: 1015196

Adapter plate NG10-NG6

Article no: 7000147

Position68

Quantity in drawing1

Adapter plate NG10-NG6

Article no: 7000147

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

Position77

Quantity in drawing1

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

For Topcon/LEICA/Novatron

End lock protection plate EC226S/EC326

Article no: 1063521

Position51

Quantity in drawing1

End lock protection plate EC226S/EC326

Article no: 1063521

End lock protection plate EC233/EC333

Article no: 1064168

Position52

Quantity in drawing1

End lock protection plate EC233/EC333

Article no: 1064168

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

Position55

Quantity in drawing8

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

For EC226. Torque: 217Nm

Protection sensor -ePS, SVAB MACS - EC226

Article no: 1016554

Position87

Quantity in drawing1

Protection sensor -ePS, SVAB MACS - EC226

Article no: 1016554

Replaced by POS.86 from 2020-07

Adapter cable JT 2S-DT 2P

Article no: 8001989

Position62

Quantity in drawing1

Adapter cable JT 2S-DT 2P

Article no: 8001989

For Left adapter cable

Screw MC6S 5x65 12.9 untreated ISO4762

Article no: 6104101

Position67

Quantity in drawing4

Screw MC6S 5x65 12.9 untreated ISO4762

Article no: 6104101

Torque: 9,7Nm

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

Position101

Quantity in drawing1

101

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

For EC219-EC233. (650412 for EC214)

Mounting plate-2x Deutsch NG4

Article no: 1059664

Position9

Quantity in drawing1

Mounting plate-2x Deutsch NG4

Article no: 1059664

Adapter 234-12-04

Article no: 7000115

Position99

Quantity in drawing1

Adapter 234-12-04

Article no: 7000115

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

Position16

Quantity in drawing5

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

Directional valve NG10 24V

Article no: 730339

Position17

Quantity in drawing1

Directional valve NG10 24V

Article no: 730339

(POS.16, 19, 20 incl.)

Directional valve NG10 12V

Article no: 730340

Position26

Quantity in drawing1

Directional valve NG10 12V

Article no: 730340

EC214 (POS.16, 27, 20 incl.)
