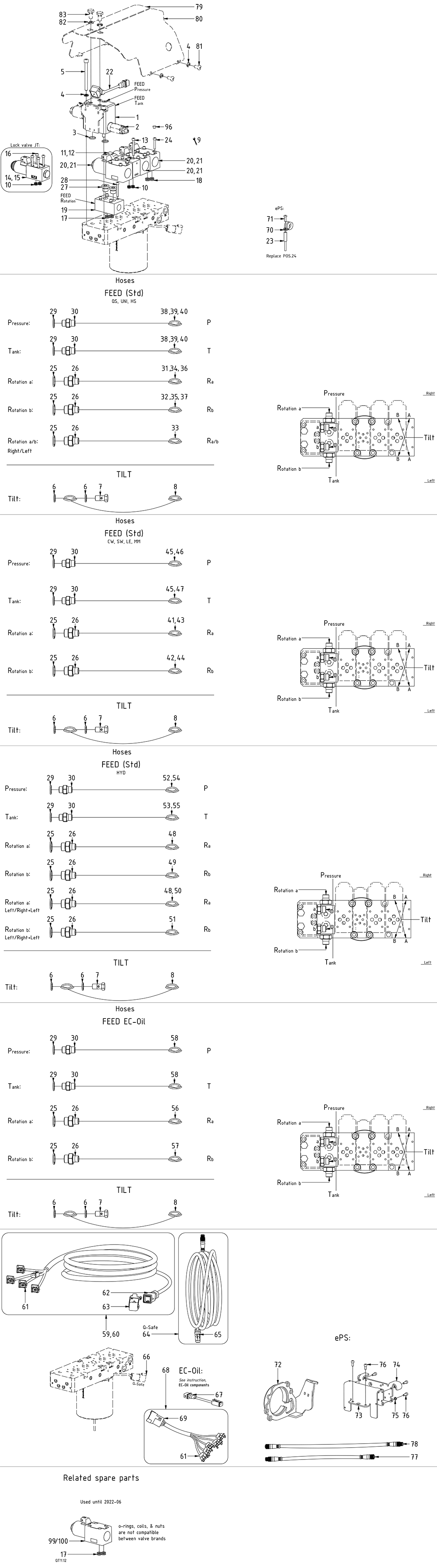

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position75

Quantity in drawing4

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position76

Quantity in drawing6

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Rubber Steel Clamp Ø16

Article no: 6000009

Position70

Quantity in drawing1

Rubber Steel Clamp Ø16

Article no: 6000009

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position18

Quantity in drawing12

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Banjo bolt 4451-04

Article no: 710271

Position7

Quantity in drawing4

Banjo bolt 4451-04

Article no: 710271

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position82

Quantity in drawing6

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position64

Quantity in drawing1

Adapter cable M12 8P-DTM 6S

Article no: 842148

For Q-Safe

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position71

Quantity in drawing1

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

Plug VSTIR38ED 3/8"

Article no: 711504

Position27

Quantity in drawing2

Plug VSTIR38ED 3/8"

Article no: 711504

Adapter 136-06-06

Article no: 710106

Position30

Quantity in drawing2

Adapter 136-06-06

Article no: 710106

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position89

Quantity in drawing1

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Seal washer GBR08 1/2"

Article no: 710704

Position25

Quantity in drawing2

Seal washer GBR08 1/2"

Article no: 710704

Seal washer GBR04 1/4"

Article no: 710702

Position6

Quantity in drawing8

Seal washer GBR04 1/4"

Article no: 710702

Seal washer GBR06 3/8"

Article no: 710703

Position29

Quantity in drawing2

Seal washer GBR06 3/8"

Article no: 710703

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position4

Quantity in drawing8

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of make up

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position24

Quantity in drawing12

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position83

Quantity in drawing2

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Position81

Quantity in drawing4

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Cable tie 4,8x371

Article no: 1021586

Position98

Quantity in drawing1

Cable tie 4,8x371

Article no: 1021586

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position84

Quantity in drawing1

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut (POS.87) and o-ring with chokenozzle included. Assemble with POS.85/86

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position88

Quantity in drawing1

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Not for HS08 O-ring included

Coil NG4 12V JT

Article no: 730313

Position85

Quantity in drawing1

Coil NG4 12V JT

Article no: 730313

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position10

Quantity in drawing4

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position28

Quantity in drawing4

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

Position11

Quantity in drawing1

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

QS, CW, ECPUP, ss SIQ (POS.10 included)

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Position13

Quantity in drawing3

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Torque: 9,7Nm

Nut directional valve NG4

Article no: 1006785

Position87

Quantity in drawing1

Nut directional valve NG4

Article no: 1006785

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position16

Quantity in drawing4

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position63

Quantity in drawing1

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position17

Quantity in drawing4

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Directional valve closed NG6 12V JT

Article no: 730112

Position99

Quantity in drawing1

Directional valve closed NG6 12V JT

Article no: 730112

Replaced by POS.20 (ATOS)

Cable tie 7,8x360

Article no: 1021587

Position97

Quantity in drawing1

Cable tie 7,8x360

Article no: 1021587

Directional valve NG4 lock 12V JT

Article no: 730312

Position14

Quantity in drawing1

Directional valve NG4 lock 12V JT

Article no: 730312

(POS.10 included)

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position67

Quantity in drawing1

Adapter cable JT 2P-DT 2S

Article no: 1017478

For EC-Oil

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Position61

Quantity in drawing5

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Deutsch DTM06-6S connector device

Article no: 8000053

Position65

Quantity in drawing1

Deutsch DTM06-6S connector device

Article no: 8000053

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Position62

Quantity in drawing1

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Deutsch DTM04-12PA connector device

Article no: 8000177

Position69

Quantity in drawing1

Deutsch DTM04-12PA connector device

Article no: 8000177

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position68

Quantity in drawing2

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For EC-Oil. Replace POS.59 & 64

Plug plastic - valve screw hole

Article no: 790156

Position96

Quantity in drawing12

Plug plastic - valve screw hole

Article no: 790156

Directional valve closed NG6 12V JT ATOS

Article no: 7001619

Position20

Quantity in drawing3

Directional valve closed NG6 12V JT ATOS

Article no: 7001619

(POS.18 included)

Adapter cable JT 2P-SQR 4S

Article no: 302971

Position22

Quantity in drawing1

Adapter cable JT 2P-SQR 4S

Article no: 302971

Unit cable ss9-2 DT EC206-EC233-3,5m

Article no: 8001823

Position59

Quantity in drawing1

Unit cable ss9-2 DT EC206-EC233-3,5m

Article no: 8001823

Unit cable ss9-2 JT EC206-EC233-3,5m

Article no: 1032909

Position60

Quantity in drawing1

Unit cable ss9-2 JT EC206-EC233-3,5m

Article no: 1032909

For Lock valve JT. Replace POS.59

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Position78

Quantity in drawing1

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Valve-Double pressure relief EC206,209&ECHF

Article no: 730287

Position2

Quantity in drawing1

Valve-Double pressure relief EC206,209&ECHF

Article no: 730287

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position23

Quantity in drawing1

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Torque: 9,7Nm

Hose Tilt Long

Article no: 7000791

Position8

Quantity in drawing4

Hose Tilt Long

Article no: 7000791

Directional valve NG4 lock 24V JT

Article no: 730310

Position15

Quantity in drawing1

Directional valve NG4 lock 24V JT

Article no: 730310

(POS.10 included)

Hose feed - EC209 - valve block UNI/HS08

Article no: 742855

Position40

Quantity in drawing2

Hose feed - EC209 - valve block UNI/HS08

Article no: 742855

(Same for Feed Right/Left)

Hose feed - EC209 - Top part QS45/50

Article no: 7000012

Position38

Quantity in drawing2

Hose feed - EC209 - Top part QS45/50

Article no: 7000012

QTY: 1 for Feed Right/Left

Hose feed - EC209 - valve block

Article no: 742814

Position39

Quantity in drawing1

Hose feed - EC209 - valve block

Article no: 742814

Feed Right: Mount on a-side Feed Left: Mount on b-side

Hose

Article no: 7000650

Position54

Quantity in drawing1

Hose

Article no: 7000650

Feed Right: Replace POS.52

Hose

Article no: 7000608

Position55

Quantity in drawing1

Hose

Article no: 7000608

Feed Right & Feed Right+Left: Replace POS.53

Hose

Article no: 7000406

Position45

Quantity in drawing2

Hose

Article no: 7000406

Hose feed - EC209 - QS45 TECO14 short

Article no: 742851

Position58

Quantity in drawing2

Hose feed - EC209 - QS45 TECO14 short

Article no: 742851

Mounting plate-ePS-Tilt sensor except Trimble-EC209

Article no: 1039019

Position74

Quantity in drawing1

Mounting plate-ePS-Tilt sensor except Trimble-EC209

Article no: 1039019

(Trimble directly on POS.73)

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Position77

Quantity in drawing1

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Cut cable protection: 130mm

O-ring 15,3x2,4 NBR 70 shore EC209

Article no: 712402

Position3

Quantity in drawing2

O-ring 15,3x2,4 NBR 70 shore EC209

Article no: 712402

Attachment Tiltrotator module DC2 & ePS EC209

Article no: 1038301

Position73

Quantity in drawing1

Attachment Tiltrotator module DC2 & ePS EC209

Article no: 1038301

Directional valve NG4 IQS lock 24V DT ss9 Coil A

Article no: 1042188

Position12

Quantity in drawing1

Directional valve NG4 IQS lock 24V DT ss9 Coil A

Article no: 1042188

QS, CW, ECPUP, ss SIQ (POS.10 included)

Connection block 2x 1/2" / 2x 3/8" NG6

Article no: 405670

Position19

Quantity in drawing1

Connection block 2x 1/2" / 2x 3/8" NG6

Article no: 405670

Directional valve closed NG6 24V JT ATOS

Article no: 7001618

Position21

Quantity in drawing3

Directional valve closed NG6 24V JT ATOS

Article no: 7001618

(POS.18 included)

Adapter 135-06-08

Article no: 710122

Position26

Quantity in drawing2

Adapter 135-06-08

Article no: 710122

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position72

Quantity in drawing1

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Protective cover valve block EC209 left

Article no: 1016516

Position80

Quantity in drawing1

Protective cover valve block EC209 left

Article no: 1016516

Protective cover valve block EC209 right

Article no: 1016515

Position79

Quantity in drawing1

Protective cover valve block EC209 right

Article no: 1016515

Hose

Article no: 7000496

Position32

Quantity in drawing1

Hose

Article no: 7000496

Hose

Article no: 7000487

Position31

Quantity in drawing1

Hose

Article no: 7000487

Hose

Article no: 7000488

Position33

Quantity in drawing1

Hose

Article no: 7000488

Replaces "a" for Rot. Left Replaces "b" for Rot. Right

Hose

Article no: 7000039

Position34

Quantity in drawing1

Hose

Article no: 7000039

Hose

Article no: 7000040

Position35

Quantity in drawing1

Hose

Article no: 7000040

Hose

Article no: 7000041

Position90

Quantity in drawing1

Hose

Article no: 7000041

For UNI top parts

Coil NG4 24V JT

Article no: 730311

Position86

Quantity in drawing1

Coil NG4 24V JT

Article no: 730311

Hose

Article no: 7000489

Position91

Quantity in drawing1

Hose

Article no: 7000489

For other top parts

Dumper block 12V EC209 complete

Article no: 1019709

Position1

Quantity in drawing1

Dumper block 12V EC209 complete

Article no: 1019709

(Dump & POS.2 included)

Directional valve closed NG6 24V JT

Article no: 730110

Position100

Quantity in drawing1

100

Directional valve closed NG6 24V JT

Article no: 730110

Replaced by POS.21 (ATOS)

Adapter 236-06-06

Article no: 710131

Position92

Quantity in drawing1

Adapter 236-06-06

Article no: 710131

Hose

Article no: 7000707

Position42

Quantity in drawing1

Hose

Article no: 7000707

Hose

Article no: 7000407

Position41

Quantity in drawing1

Hose

Article no: 7000407

Hose

Article no: 7000600

Position48

Quantity in drawing1

Hose

Article no: 7000600

(same for Rot. Right+Left)

Hose

Article no: 7000609

Position51

Quantity in drawing1

Hose

Article no: 7000609

Rot. Left & Rot. Right+Left: Replace POS.49

Hose

Article no: 7001526

Position56

Quantity in drawing1

Hose

Article no: 7001526

Hose

Article no: 7001527

Position57

Quantity in drawing1

Hose

Article no: 7001527
