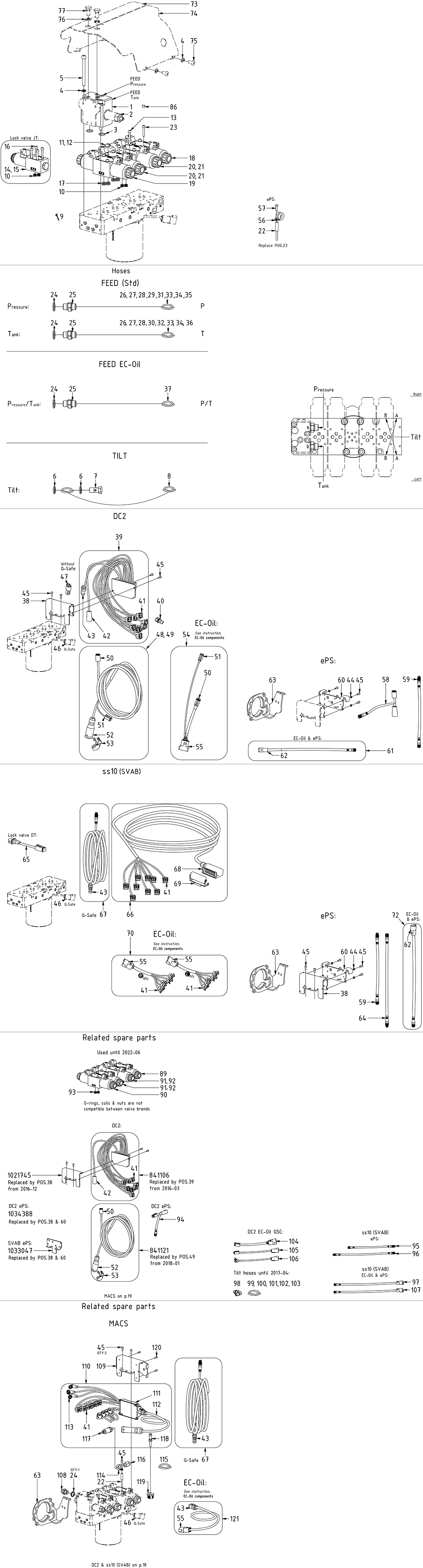

ss10 (DC2/SVAB)

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position44

Quantity in drawing4

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position45

Quantity in drawing4

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

QTY depends on config (4-8)

Rubber Steel Clamp Ø14

Article no: 613009

Position114

Quantity in drawing1

114

Rubber Steel Clamp Ø14

Article no: 613009

Rubber Steel Clamp Ø16

Article no: 6000009

Position56

Quantity in drawing1

Rubber Steel Clamp Ø16

Article no: 6000009

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position17

Quantity in drawing16

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Banjo bolt 4451-04

Article no: 710271

Position7

Quantity in drawing4

Banjo bolt 4451-04

Article no: 710271

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position76

Quantity in drawing2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position67

Quantity in drawing1

Adapter cable M12 8P-DTM 6S

Article no: 842148

For Q-Safe

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position57

Quantity in drawing1

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

Adapter 236-04-04

Article no: 1013885

Position116

Quantity in drawing1

116

Adapter 236-04-04

Article no: 1013885

Adapter 136-06-06

Article no: 710106

Position25

Quantity in drawing2

Adapter 136-06-06

Article no: 710106

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position83

Quantity in drawing1

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Seal washer GBR04 1/4"

Article no: 710702

Position6

Quantity in drawing8

Seal washer GBR04 1/4"

Article no: 710702

Seal washer GBR06 3/8"

Article no: 710703

Position24

Quantity in drawing2

Seal washer GBR06 3/8"

Article no: 710703

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position4

Quantity in drawing8

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of make up

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position23

Quantity in drawing16

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position77

Quantity in drawing2

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Position75

Quantity in drawing4

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Cable tie 4,8x371

Article no: 1021586

Position88

Quantity in drawing1

Cable tie 4,8x371

Article no: 1021586

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position78

Quantity in drawing1

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut (POS.81) and o-ring with chokenozzle included. Assemble with POS.79/80

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position82

Quantity in drawing1

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

O-ring included

Coil NG4 12V JT

Article no: 730313

Position79

Quantity in drawing1

Coil NG4 12V JT

Article no: 730313

Plug JT

Article no: 1045154

Position71

Quantity in drawing1

Plug JT

Article no: 1045154

Plug JT connector "1" on Right

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Position49

Quantity in drawing1

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

For Lock valve JT. Replace POS.48

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position11

Quantity in drawing1

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

QS, CW, ECPUP, ss SIQ (POS.10 included)

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position10

Quantity in drawing4

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position13

Quantity in drawing3

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

Nut directional valve NG4

Article no: 1006785

Position81

Quantity in drawing1

Nut directional valve NG4

Article no: 1006785

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position16

Quantity in drawing4

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm

Adapter 401-04-04 90°

Article no: 710151

Position98

Quantity in drawing4

Adapter 401-04-04 90°

Article no: 710151

Replaced by Banjos from 2017-04

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position53

Quantity in drawing1

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Position58

Quantity in drawing1

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

Position72

Quantity in drawing1

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

For EC-Oil ePS. Replace POS.64

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position93

Quantity in drawing1

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Used until 2022-06

Adapter 135-04-06

Article no: 710118

Position108

Quantity in drawing1

108

Adapter 135-04-06

Article no: 710118

Cable tie 7,8x360

Article no: 1021587

Position87

Quantity in drawing1

Cable tie 7,8x360

Article no: 1021587

Directional valve NG4 lock 12V JT

Article no: 730312

Position14

Quantity in drawing1

Directional valve NG4 lock 12V JT

Article no: 730312

(POS.10 included)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

Position20

Quantity in drawing2

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

(POS.17 included)

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position19

Quantity in drawing1

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

(POS.17 included)

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position65

Quantity in drawing1

Adapter cable JT 2P-DT 2S

Article no: 1017478

(Previously also for DC2)

Deutsch DT04-4P connector device

Article no: 820108

Position42

Quantity in drawing1

Deutsch DT04-4P connector device

Article no: 820108

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Position41

Quantity in drawing9

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Deutsch DTM06-6S connector device

Article no: 8000053

Position43

Quantity in drawing1

Deutsch DTM06-6S connector device

Article no: 8000053

Protection plug for DTM06-6S

Article no: 8000090

Position47

Quantity in drawing1

Protection plug for DTM06-6S

Article no: 8000090

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

Position48

Quantity in drawing1

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

Deutsch DT06-4S connector device

Article no: 820218

Position50

Quantity in drawing1

Deutsch DT06-4S connector device

Article no: 820218

Deutsch DT06-2S connector device

Article no: 820219

Position51

Quantity in drawing1

Deutsch DT06-2S connector device

Article no: 820219

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Position52

Quantity in drawing4

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Adapter cable DTM 12P-DT 4S/2S

Article no: 1048529

Position54

Quantity in drawing1

Adapter cable DTM 12P-DT 4S/2S

Article no: 1048529

For EC-Oil. Replace POS.48

Deutsch DTM04-12PA connector device

Article no: 8000177

Position55

Quantity in drawing1

Deutsch DTM04-12PA connector device

Article no: 8000177

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

Position66

Quantity in drawing1

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

ILME 66.16 16P MZO 25 L20 connector device

Article no: 810203

Position68

Quantity in drawing1

ILME 66.16 16P MZO 25 L20 connector device

Article no: 810203

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position69

Quantity in drawing1

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position70

Quantity in drawing2

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For EC-Oil. Replace POS.66-67

Plug plastic - valve screw hole

Article no: 790156

Position86

Quantity in drawing16

Plug plastic - valve screw hole

Article no: 790156

Jumper JT 2P POS:1-2

Article no: 1018662

Position40

Quantity in drawing1

Jumper JT 2P POS:1-2

Article no: 1018662

Plug JT connector "1"

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position90

Quantity in drawing1

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Replaced by POS.19 (ATOS)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position91

Quantity in drawing1

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Replaced by POS.20 (ATOS)

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Position64

Quantity in drawing1

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

Position120

Quantity in drawing4

120

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Position39

Quantity in drawing1

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position22

Quantity in drawing1

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Torque: 9,7Nm

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Position119

Quantity in drawing1

119

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Part of rotator frame assembly

Hose Tilt Long

Article no: 7000791

Position8

Quantity in drawing4

Hose Tilt Long

Article no: 7000791

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

Position12

Quantity in drawing1

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

QS, CW, ECPUP, ss SIQ (POS.10 included)

Directional valve NG4 lock 24V JT

Article no: 730310

Position15

Quantity in drawing1

Directional valve NG4 lock 24V JT

Article no: 730310

(POS.10 included)

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

Position18

Quantity in drawing1

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

(POS.17 included)

Directional valve NG6 24V JT ATOS

Article no: 7001616

Position21

Quantity in drawing2

Directional valve NG6 24V JT ATOS

Article no: 7001616

(POS.17 included)

Hose feed - EC209 - valve block UNI/HS08

Article no: 742855

Position26

Quantity in drawing2

Hose feed - EC209 - valve block UNI/HS08

Article no: 742855

(Same for Feed Right/Left)

Hose feed - EC209 - Top part QS45/50

Article no: 7000012

Position27

Quantity in drawing2

Hose feed - EC209 - Top part QS45/50

Article no: 7000012

QTY: 1 for Feed Right/Left

Hose feed - EC209 - valve block

Article no: 742814

Position28

Quantity in drawing1

Hose feed - EC209 - valve block

Article no: 742814

Feed Right: Mount on a-side Feed Left: Mount on b-side

Hose

Article no: 7000650

Position31

Quantity in drawing1

Hose

Article no: 7000650

Feed Right: Replace POS.29

Hose

Article no: 7000608

Position32

Quantity in drawing1

Hose

Article no: 7000608

Feed Right & Feed Right+Left: Replace POS.30

Hose

Article no: 7000406

Position34

Quantity in drawing2

Hose

Article no: 7000406

Hose feed - EC209 - QS45 TECO14 short

Article no: 742851

Position37

Quantity in drawing2

Hose feed - EC209 - QS45 TECO14 short

Article no: 742851

Mounting plate-ePS-Tilt sensor except Trimble-EC209

Article no: 1039019

Position60

Quantity in drawing1

Mounting plate-ePS-Tilt sensor except Trimble-EC209

Article no: 1039019

(Trimble directly on POS.38)

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Position59

Quantity in drawing1

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Cut cable protection: 130mm

Block-Pressure reduction-EC209 complete

Article no: 1019712

Position1

Quantity in drawing1

Block-Pressure reduction-EC209 complete

Article no: 1019712

(POS.2 included)

Valve-Pressure reducer-SP4A-B3 EC209

Article no: 730288

Position2

Quantity in drawing1

Valve-Pressure reducer-SP4A-B3 EC209

Article no: 730288

O-ring 15,3x2,4 NBR 70 shore EC209

Article no: 712402

Position3

Quantity in drawing2

O-ring 15,3x2,4 NBR 70 shore EC209

Article no: 712402

Adapter cable DTM 6P-M12 5S

Article no: 8002459

Position61

Quantity in drawing1

Adapter cable DTM 6P-M12 5S

Article no: 8002459

NB! Only compatible with 8002477

Attachment Tiltrotator module DC2 & ePS EC209

Article no: 1038301

Position38

Quantity in drawing1

Attachment Tiltrotator module DC2 & ePS EC209

Article no: 1038301

Breakout cable CAN DT-DC2 EC 0,15/0,98m

Article no: 842173

Position94

Quantity in drawing1

Breakout cable CAN DT-DC2 EC 0,15/0,98m

Article no: 842173

Replaced by POS.58 from 2019-10

Directional valve NG6 24V

Article no: 730103

Position92

Quantity in drawing1

Directional valve NG6 24V

Article no: 730103

Replaced by POS.21 (ATOS)

Resistor cable 120ohm M12 5S-M12 5S-0,95m

Article no: 842188

Position95

Quantity in drawing1

Resistor cable 120ohm M12 5S-M12 5S-0,95m

Article no: 842188

Replaced by POS.59 from 2019-10

Extension cable 5-pole M12-FULL 3m Robo hose

Article no: 842187

Position96

Quantity in drawing1

Extension cable 5-pole M12-FULL 3m Robo hose

Article no: 842187

Replaced by POS.64 from 2019-10

Cable ePS ECO W tiltrotator ss5/ss9/SVAB

Article no: 1042245

Position97

Quantity in drawing1

Cable ePS ECO W tiltrotator ss5/ss9/SVAB

Article no: 1042245

Replaced by POS.72 from 2019-10

Deutsch DTM04-6P connector device

Article no: 8000054

Position62

Quantity in drawing1

Deutsch DTM04-6P connector device

Article no: 8000054

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position63

Quantity in drawing1

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Protective cover valve block EC209 left

Article no: 1016516

Position74

Quantity in drawing1

Protective cover valve block EC209 left

Article no: 1016516

Protective cover valve block EC209 right

Article no: 1016515

Position73

Quantity in drawing1

Protective cover valve block EC209 right

Article no: 1016515

Hose tilt cylinder - EC209 - UNI (no Hose bracket)

Article no: 742854

Position99

Quantity in drawing4

Hose tilt cylinder - EC209 - UNI (no Hose bracket)

Article no: 742854

Used with POS.98

Hose tilt cylinder - EC209 - QS - long

Article no: 742852

Position100

Quantity in drawing2

100

Hose tilt cylinder - EC209 - QS - long

Article no: 742852

Used with POS.98

Hose tilt cylinder - EC209 - QS - short

Article no: 742853

Position101

Quantity in drawing2

101

Hose tilt cylinder - EC209 - QS - short

Article no: 742853

Used with POS.98

Hose

Article no: 742812

Position102

Quantity in drawing2

102

Hose

Article no: 742812

Used with POS.98

Hose tilt

Article no: 742815

Position103

Quantity in drawing2

103

Hose tilt

Article no: 742815

Used with POS.98

Adapter cable DTM 12P-DT 4S-ECO W DC3

Article no: 1042249

Position105

Quantity in drawing1

105

Adapter cable DTM 12P-DT 4S-ECO W DC3

Article no: 1042249

Replaced by POS.54 from 2018-08

Adapter cable DTM 6P-JT 2S-ECO DTM 1 & 6 Connected

Article no: 1042250

Position106

Quantity in drawing1

106

Adapter cable DTM 6P-JT 2S-ECO DTM 1 & 6 Connected

Article no: 1042250

Replaced by POS.105 from 2017-10

Cable ePS ECO tiltrotator ss5/ss9/SVAB

Article no: 1033021

Position107

Quantity in drawing1

107

Cable ePS ECO tiltrotator ss5/ss9/SVAB

Article no: 1033021

Replaced by POS.97 from 2017-10

Adapter cable DTM 12P-DT 6S-MACS ECO W

Article no: 1043277

Position121

Quantity in drawing1

121

Adapter cable DTM 12P-DT 6S-MACS ECO W

Article no: 1043277

For EC-Oil. Replace POS.67 & 112

Hose

Article no: 7000041

Position84

Quantity in drawing1

Hose

Article no: 7000041

For UNI top parts

Coil NG4 24V JT

Article no: 730311

Position80

Quantity in drawing1

Coil NG4 24V JT

Article no: 730311

Hose

Article no: 7000489

Position85

Quantity in drawing1

Hose

Article no: 7000489

For other top parts

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

Position89

Quantity in drawing1

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

Replaced by POS.18 (ATOS)
