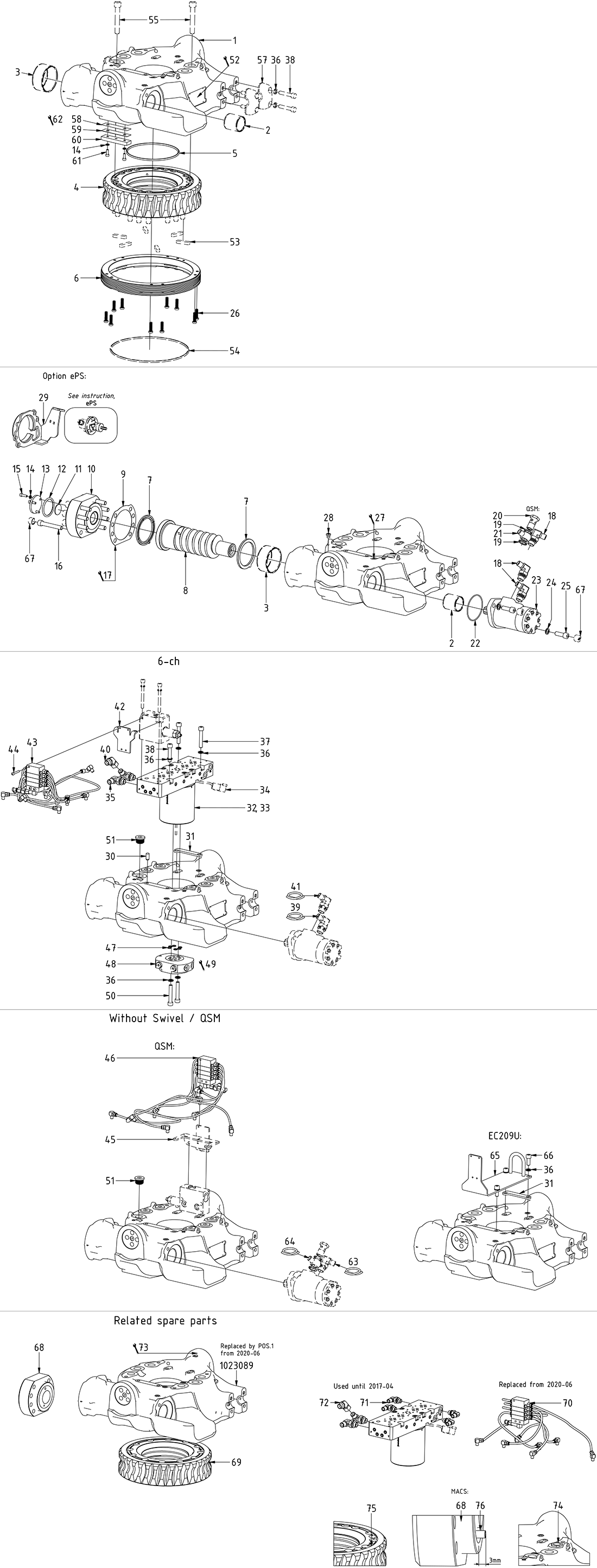

Main components

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position61

Quantity in drawing2

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Adapter 401-06-06 90°

Article no: 710152

Position35

Quantity in drawing2

Adapter 401-06-06 90°

Article no: 710152

Assemble before connecting valve block to rotator frame

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position36

Quantity in drawing13

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 11 for EC209U QTY: 8 part of top part assembly

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position24

Quantity in drawing2

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position25

Quantity in drawing2

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Torque: 136Nm

Screw MC6S 10x25 12.9 ZFSHL ISO4762

Article no: 6000195

Position66

Quantity in drawing3

Screw MC6S 10x25 12.9 ZFSHL ISO4762

Article no: 6000195

Seal washer GBR08 1/2"

Article no: 710704

Position19

Quantity in drawing2

Seal washer GBR08 1/2"

Article no: 710704

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position38

Quantity in drawing9

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

QTY: 8 part of top part assembly Torque: 79Nm

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position56

Quantity in drawing2

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position14

Quantity in drawing5

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Plug VSTIR18ED 1/8"

Article no: 711503

Position28

Quantity in drawing4

Plug VSTIR18ED 1/8"

Article no: 711503

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Position53

Quantity in drawing6

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Part of quick hitch assembly

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position16

Quantity in drawing8

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Torque: 136Nm

Screw MC6S 10x60 12.9 ZFSHL ISO4762

Article no: 611503

Position37

Quantity in drawing2

Screw MC6S 10x60 12.9 ZFSHL ISO4762

Article no: 611503

Torque: 79Nm

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Position50

Quantity in drawing2

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

T-Swivel union - M10x1 with plug

Article no: 7001870

Position224

Quantity in drawing2

224

T-Swivel union - M10x1 with plug

Article no: 7001870

Adapter 401-04-04 90°

Article no: 710151

Position71

Quantity in drawing4

Adapter 401-04-04 90°

Article no: 710151

Assemble before connecting valveblock to rotator frame

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position47

Quantity in drawing6

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position57

Quantity in drawing4

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Part of top part assembly

Adapter 401-06-08 90°

Article no: 710157

Position18

Quantity in drawing2

Adapter 401-06-08 90°

Article no: 710157

QTY: 1 for QSM Assemble before motor

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Position55

Quantity in drawing18

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Part of quick hitch assembly Torque: 217Nm

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Position22

Quantity in drawing1

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

Position58

Quantity in drawing1

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

Position59

Quantity in drawing1

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

Plate break support - EC209/214/219

Article no: 1055258

Position60

Quantity in drawing1

Plate break support - EC209/214/219

Article no: 1055258

Screw cover M12

Article no: 611301

Position67

Quantity in drawing10

Screw cover M12

Article no: 611301

Part of make up

Adapter 030045-06-06

Article no: 710211

Position72

Quantity in drawing1

Adapter 030045-06-06

Article no: 710211

Replaced by POS.40 from 2017-04

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Position51

Quantity in drawing6

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position29

Quantity in drawing1

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Spacer 5mm valve block EC209 V2 frame

Article no: 1058993

Position31

Quantity in drawing1

Spacer 5mm valve block EC209 V2 frame

Article no: 1058993

Valve block-swivel 5v & 6-ch for Slip ring-EC209

Article no: 1025501

Position32

Quantity in drawing1

Valve block-swivel 5v & 6-ch for Slip ring-EC209

Article no: 1025501

See "Valve blocks & Swivels"

Valve block-swivel 5v & 6-ch Slip ring-DTM-EC209

Article no: 1030480

Position33

Quantity in drawing1

Valve block-swivel 5v & 6-ch Slip ring-DTM-EC209

Article no: 1030480

(POS.34 included) See "Valve blocks & Swivels"

Slip ring-5V/6CH-swivel - DTM

Article no: 1032566

Position34

Quantity in drawing1

Slip ring-5V/6CH-swivel - DTM

Article no: 1032566

Hose motor - EC209 - long

Article no: 742804

Position39

Quantity in drawing1

Hose motor - EC209 - long

Article no: 742804

Adapter 408-06-06

Article no: 7000501

Position40

Quantity in drawing1

Adapter 408-06-06

Article no: 7000501

Hose motor - EC209 - short

Article no: 742805

Position41

Quantity in drawing1

Hose motor - EC209 - short

Article no: 742805

Attachment central lubrication EC209

Article no: 1021695

Position42

Quantity in drawing1

Attachment central lubrication EC209

Article no: 1021695

Screw K6S 5x35 10.9 untreated ISO7380

Article no: 6000231

Position44

Quantity in drawing3

Screw K6S 5x35 10.9 untreated ISO7380

Article no: 6000231

Lubrication kit EC209 V2

Article no: 1059026

Position43

Quantity in drawing1

Lubrication kit EC209 V2

Article no: 1059026

See "Central lubrication"

Attachment central lubrication & DC2-QSM45/50

Article no: 1055574

Position45

Quantity in drawing1

Attachment central lubrication & DC2-QSM45/50

Article no: 1055574

Part of control system assembly

Lubrication kit EC209 QSM

Article no: 1056598

Position46

Quantity in drawing1

Lubrication kit EC209 QSM

Article no: 1056598

See "Central lubrication"

Connection block 6-ch EC209-for Slip ring

Article no: 1025502

Position48

Quantity in drawing1

Connection block 6-ch EC209-for Slip ring

Article no: 1025502

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

Position54

Quantity in drawing1

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

Part of quick hitch assembly

O-ring 160x5 NBR 90 shore EC209 worm wheel

Article no: 7001660

Position5

Quantity in drawing1

O-ring 160x5 NBR 90 shore EC209 worm wheel

Article no: 7001660

Bearing ring EC209 V2

Article no: 1077029

Position6

Quantity in drawing1

Bearing ring EC209 V2

Article no: 1077029

Worm screw EC209

Article no: 1016453

Position8

Quantity in drawing1

Worm screw EC209

Article no: 1016453

Axial washer with ear EC209/214/219

Article no: 1079941

Position7

Quantity in drawing2

Axial washer with ear EC209/214/219

Article no: 1079941

Face groove toward worm screw

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

Position9

Quantity in drawing1

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

(1016421, 1016422, 1016423 included)

End lock EC209/EC214/EC219 ePS

Article no: 1016557

Position10

Quantity in drawing1

End lock EC209/EC214/EC219 ePS

Article no: 1016557

Spacer-end lock EC209/EC214/EC219

Article no: 1065370

Position11

Quantity in drawing1

Spacer-end lock EC209/EC214/EC219

Article no: 1065370

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

Position12

Quantity in drawing1

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

Cover End lock None ePS

Article no: 1041613

Position13

Quantity in drawing1

Cover End lock None ePS

Article no: 1041613

Hose

Article no: 7001306

Position63

Quantity in drawing1

Hose

Article no: 7001306

Part of quick hitch assembly

Hose

Article no: 7001307

Position64

Quantity in drawing1

Hose

Article no: 7001307

Part of quick hitch assembly

Attachment central lubrication EC209 w/o valve block-swivel

Article no: 1039502

Position65

Quantity in drawing1

Attachment central lubrication EC209 w/o valve block-swivel

Article no: 1039502

End lock EC209/EC214/EC219

Article no: 1016415

Position68

Quantity in drawing1

End lock EC209/EC214/EC219

Article no: 1016415

Replaced by POS.10 from 2022-01 MACS: Replaces 1028628 from 16-10

Lubrication kit EC209

Article no: 1021742

Position70

Quantity in drawing1

Lubrication kit EC209

Article no: 1021742

Replaced by POS.43 from 2020-06

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Position75

Quantity in drawing1

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Loctite 415. Harden 1 minute

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Position76

Quantity in drawing1

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Distance 3mm. Nut torque: 3Nm

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

Position15

Quantity in drawing3

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

Adapter 830-08-06

Article no: 710193

Position21

Quantity in drawing1

Adapter 830-08-06

Article no: 710193

Cylindrical pin CPK Ø10x24 m6

Article no: 1020539

Position30

Quantity in drawing1

Cylindrical pin CPK Ø10x24 m6

Article no: 1020539

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Position26

Quantity in drawing10

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Torque: 34Nm. Tighten in cross pattern

Rotator frame 209 V2 EngconYellow complete

Article no: 1056657

Position1

Quantity in drawing1

Rotator frame 209 V2 EngconYellow complete

Article no: 1056657

(POS.2-3 included)

Bushing WB802 45/50x50

Article no: 630102

Position2

Quantity in drawing1

Bushing WB802 45/50x50

Article no: 630102

Worm wheel EC209 18 bolt

Article no: 1054242

Position4

Quantity in drawing1

Worm wheel EC209 18 bolt

Article no: 1054242

Bushing WB802 80/85x40

Article no: 630103

Position3

Quantity in drawing1

Bushing WB802 80/85x40

Article no: 630103

Banjo bolt 4451-08

Article no: 710274

Position20

Quantity in drawing1

Banjo bolt 4451-08

Article no: 710274

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Position23

Quantity in drawing1

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112
