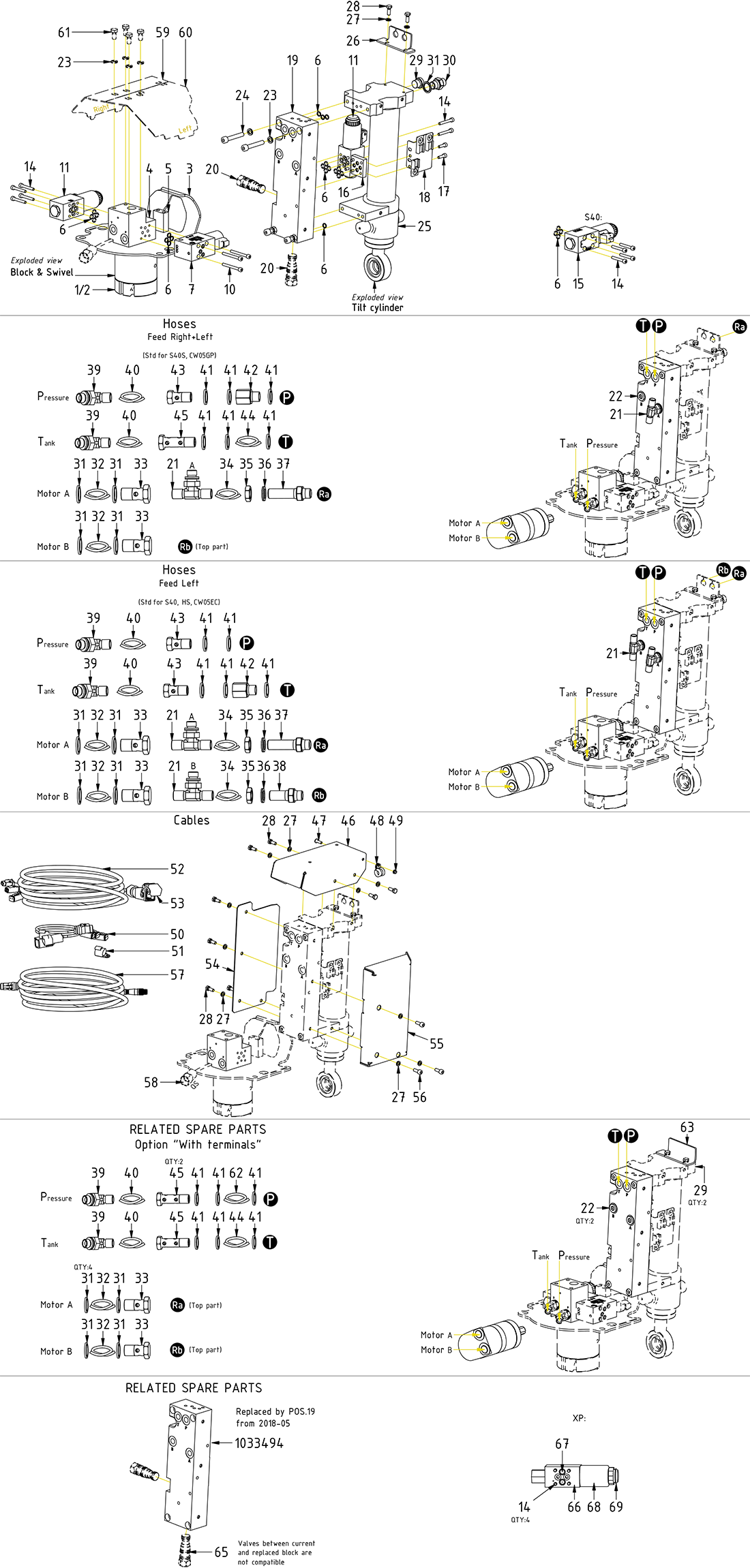

ss9IQ

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Screw M6S 6x16 10.9 FZB

Article no: 610109

Position28

Quantity in drawing10

Screw M6S 6x16 10.9 FZB

Article no: 610109

Banjo bolt 4451-06

Article no: 710272

Position33

Quantity in drawing2

Banjo bolt 4451-06

Article no: 710272

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position61

Quantity in drawing4

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Part of make up

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position6

Quantity in drawing20

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Hose feed T

Article no: 7000584

Position44

Quantity in drawing1

Hose feed T

Article no: 7000584

Banjo bolt 4450-04-00 extended

Article no: 712214

Position45

Quantity in drawing1

Banjo bolt 4450-04-00 extended

Article no: 712214

Adapter cable DTM 2P/4P/6P-3xDT 2S/DTM 6S-Joint

Article no: 8001373

Position50

Quantity in drawing1

Adapter cable DTM 2P/4P/6P-3xDT 2S/DTM 6S-Joint

Article no: 8001373

Mounting plate-3x Deutsch NG4

Article no: 1069580

Position18

Quantity in drawing1

Mounting plate-3x Deutsch NG4

Article no: 1069580

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position14

Quantity in drawing8

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm. QTY: 12 for S40

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

Position20

Quantity in drawing2

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

(Only compatible with current block)

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position24

Quantity in drawing4

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position53

Quantity in drawing1

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

Adapter bulkhead 1260-04-04

Article no: 710240

Position38

Quantity in drawing1

Adapter bulkhead 1260-04-04

Article no: 710240

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Position46

Quantity in drawing1

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

Position19

Quantity in drawing1

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

(POS.20 incl.)

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Position55

Quantity in drawing1

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Position54

Quantity in drawing1

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Position63

Quantity in drawing1

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Hose bracket EC02B,EC204,EC204B-tilt cylinder-ss9/ss0

Article no: 1033484

Position26

Quantity in drawing1

Hose bracket EC02B,EC204,EC204B-tilt cylinder-ss9/ss0

Article no: 1033484

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position57

Quantity in drawing1

Adapter cable M12 8P-DTM 6S

Article no: 842148

For QS

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position47

Quantity in drawing1

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Adapter 236-04-04

Article no: 1013885

Position42

Quantity in drawing1

Adapter 236-04-04

Article no: 1013885

Plug VSTIR38ED 3/8"

Article no: 711504

Position29

Quantity in drawing1

Plug VSTIR38ED 3/8"

Article no: 711504

Adapter 136-06-06

Article no: 710106

Position30

Quantity in drawing1

Adapter 136-06-06

Article no: 710106

QTY: 2 for Feed Left

Valve plate -EC204 V2

Article no: 1031620

Position3

Quantity in drawing1

Valve plate -EC204 V2

Article no: 1031620

Valve block EC204

Article no: 1027945

Position4

Quantity in drawing1

Valve block EC204

Article no: 1027945

Attachment greasedistributor BEKA EC204

Article no: 1031608

Position5

Quantity in drawing1

Attachment greasedistributor BEKA EC204

Article no: 1031608

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

Position7

Quantity in drawing1

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

For CW, ss SIQ, EC204 with sensors (POS.6, 8-9 incl.)

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position8

Quantity in drawing1

Coil NG4 IQS lock 12V DT

Article no: 1042065

Directional valve closed NG4 12V DT

Article no: 7000148

Position11

Quantity in drawing2

Directional valve closed NG4 12V DT

Article no: 7000148

(POS.6, 12-13 incl.)

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Position10

Quantity in drawing3

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Torque: 9,7Nm

Coil 12V NG4 On/Off DT

Article no: 7000897

Position12

Quantity in drawing3

Coil 12V NG4 On/Off DT

Article no: 7000897

Directional valve NG4 lock 12V DT

Article no: 7000102

Position15

Quantity in drawing3

Directional valve NG4 lock 12V DT

Article no: 7000102

For S40. (POS.6, 12-13 incl.)

Nut directional valve NG4

Article no: 1006785

Position13

Quantity in drawing3

Nut directional valve NG4

Article no: 1006785

Hose

Article no: 7001172

Position62

Quantity in drawing1

Hose

Article no: 7001172

Overcenter RJV cylinder block EC02 / EC204

Article no: 790142

Position65

Quantity in drawing2

Overcenter RJV cylinder block EC02 / EC204

Article no: 790142

Used until 2018-05

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position66

Quantity in drawing1

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut (POS.69) and o-ring with choke- valve incl.

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position67

Quantity in drawing1

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

O-ring incl.

Coil NG4 12V JT

Article no: 730313

Position68

Quantity in drawing2

Coil NG4 12V JT

Article no: 730313

Cover plate UNI NG4

Article no: 730152

Position16

Quantity in drawing1

Cover plate UNI NG4

Article no: 730152

Adapter 403-04-04

Article no: 7000106

Position21

Quantity in drawing1

Adapter 403-04-04

Article no: 7000106

QTY: 2 for Feed Left

Hose Hydraulic motor

Article no: 7000107

Position32

Quantity in drawing2

Hose Hydraulic motor

Article no: 7000107

Hose

Article no: 7000109

Position34

Quantity in drawing1

Hose

Article no: 7000109

QTY: 2 for Feed Left

Hose feed (Block) - EC204

Article no: 7000108

Position40

Quantity in drawing2

Hose feed (Block) - EC204

Article no: 7000108

Unit cable ss9-2 DTM EC02B-EC204-2,5m

Article no: 1036466

Position52

Quantity in drawing1

Unit cable ss9-2 DTM EC02B-EC204-2,5m

Article no: 1036466

Deutsch Dust protection to DT06-2S

Article no: 8000086

Position51

Quantity in drawing1

Deutsch Dust protection to DT06-2S

Article no: 8000086

Plug DT "4"

Protective cover valve block EC204 QS40 left

Article no: 1062218

Position60

Quantity in drawing1

Protective cover valve block EC204 QS40 left

Article no: 1062218

Part of make up

Protective cover valve block EC204 QS40 right

Article no: 1062212

Position59

Quantity in drawing1

Protective cover valve block EC204 QS40 right

Article no: 1062212

Part of make up

Swivel EC204-QS40 complete with slip ring

Article no: 1062975

Position1

Quantity in drawing1

Swivel EC204-QS40 complete with slip ring

Article no: 1062975

For EC204 with sensors

Swivel EC204 with connection block complete

Article no: 1028504

Position2

Quantity in drawing1

Swivel EC204 with connection block complete

Article no: 1028504

Seal washer GBR04 1/4"

Article no: 710702

Position41

Quantity in drawing6

Seal washer GBR04 1/4"

Article no: 710702

QTY: 5 for Feed Left

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position23

Quantity in drawing8

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of make up

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position27

Quantity in drawing13

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position56

Quantity in drawing3

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Plug Din 908 1/4"

Article no: 711505

Position22

Quantity in drawing1

Plug Din 908 1/4"

Article no: 711505

Rubber Steel Clamp Ø10

Article no: 6000003

Position48

Quantity in drawing1

Rubber Steel Clamp Ø10

Article no: 6000003

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position17

Quantity in drawing4

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Seal washer GBR06 3/8"

Article no: 710703

Position31

Quantity in drawing5

Seal washer GBR06 3/8"

Article no: 710703

QTY: 6 for Feed Left

Adapter bulkhead extended 1260-04-40

Article no: 710261

Position37

Quantity in drawing1

Adapter bulkhead extended 1260-04-40

Article no: 710261

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position36

Quantity in drawing1

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

QTY: 2 for Feed Left

Nut bulkhead adapter 1270-04

Article no: 710250

Position9

Quantity in drawing1

Nut bulkhead adapter 1270-04

Article no: 710250

Adapter 402-04-04 45°

Article no: 7000104

Position39

Quantity in drawing2

Adapter 402-04-04 45°

Article no: 7000104

Banjo bolt 4451-04

Article no: 710271

Position43

Quantity in drawing1

Banjo bolt 4451-04

Article no: 710271

QTY: 2 for Feed Left

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Position49

Quantity in drawing1

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Tilt cylinder EC204

Article no: 1029849

Position25

Quantity in drawing1

Tilt cylinder EC204

Article no: 1029849

Part of top part
