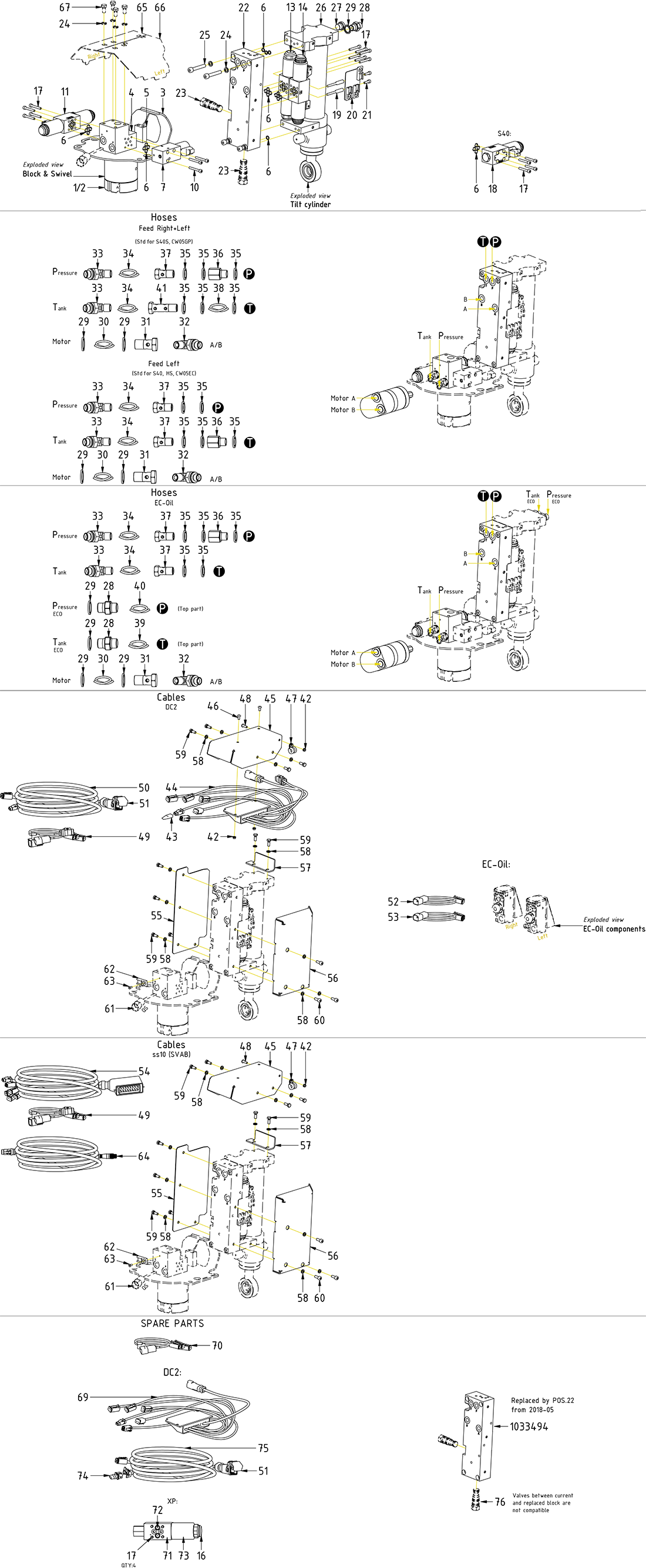

ss10 (DC2/SVAB)

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Screw M6S 6x16 10.9 FZB

Article no: 610109

Position59

Quantity in drawing10

Screw M6S 6x16 10.9 FZB

Article no: 610109

Banjo bolt 4451-06

Article no: 710272

Position31

Quantity in drawing2

Banjo bolt 4451-06

Article no: 710272

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position67

Quantity in drawing4

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Part of make up

Directional valve NG4 12V DT

Article no: 7000099

Position11

Quantity in drawing1

Directional valve NG4 12V DT

Article no: 7000099

(POS.6, 12, 16 incl.)

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position7

Quantity in drawing1

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

For CW, ss SIQ, EC204 with sensors (POS.6, 8-9 incl.)

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position6

Quantity in drawing20

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Directional valve NG4 Prop tilt 12V DT

Article no: 7000100

Position13

Quantity in drawing1

Directional valve NG4 Prop tilt 12V DT

Article no: 7000100

(POS.6, 15-16 incl.)

Directional valve NG4 Prop rotation 12V DT

Article no: 7000103

Position14

Quantity in drawing1

Directional valve NG4 Prop rotation 12V DT

Article no: 7000103

(POS.6, 15-16 incl.)

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position10

Quantity in drawing3

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

Adapter 401-04-04 90°

Article no: 710151

Position32

Quantity in drawing2

Adapter 401-04-04 90°

Article no: 710151

Hose feed T

Article no: 7000584

Position38

Quantity in drawing1

Hose feed T

Article no: 7000584

Banjo bolt 4450-04-00 extended

Article no: 712214

Position41

Quantity in drawing1

Banjo bolt 4450-04-00 extended

Article no: 712214

Jumper DTM 2P POS:1-2

Article no: 8001229

Position43

Quantity in drawing1

Jumper DTM 2P POS:1-2

Article no: 8001229

Plug DTM connector "1"

Electronics Module TM2-EC02B/EC204 DC2 QS

Article no: 8001385

Position44

Quantity in drawing1

Electronics Module TM2-EC02B/EC204 DC2 QS

Article no: 8001385

Adapter cable DTM 2P/4P/6P-3xDT 2S/DTM 6S-Joint

Article no: 8001373

Position49

Quantity in drawing1

Adapter cable DTM 2P/4P/6P-3xDT 2S/DTM 6S-Joint

Article no: 8001373

Unit cable DC2 DTM EC02B-EC204-3,7m

Article no: 8000763

Position50

Quantity in drawing1

Unit cable DC2 DTM EC02B-EC204-3,7m

Article no: 8000763

Screw Valve Distance NG6 5x35

Article no: 1054687

Position19

Quantity in drawing2

Screw Valve Distance NG6 5x35

Article no: 1054687

Torque: 9,7Nm

Mounting plate-3x Deutsch NG4

Article no: 1069580

Position20

Quantity in drawing1

Mounting plate-3x Deutsch NG4

Article no: 1069580

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position17

Quantity in drawing10

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm. QTY: 14 for S40

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

Position23

Quantity in drawing2

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

(Only compatible with current block)

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position25

Quantity in drawing4

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position51

Quantity in drawing1

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Position45

Quantity in drawing1

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

Position22

Quantity in drawing1

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

(POS.23 incl.)

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Position56

Quantity in drawing1

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Position55

Quantity in drawing1

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Position57

Quantity in drawing1

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Screw MF6S 4x10 10.9 untreated ISO10642

Article no: 610605

Position63

Quantity in drawing1

Screw MF6S 4x10 10.9 untreated ISO10642

Article no: 610605

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position64

Quantity in drawing1

Adapter cable M12 8P-DTM 6S

Article no: 842148

For QS

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position48

Quantity in drawing1

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Adapter 236-04-04

Article no: 1013885

Position36

Quantity in drawing1

Adapter 236-04-04

Article no: 1013885

Plug VSTIR38ED 3/8"

Article no: 711504

Position27

Quantity in drawing1

Plug VSTIR38ED 3/8"

Article no: 711504

Adapter 136-06-06

Article no: 710106

Position28

Quantity in drawing1

Adapter 136-06-06

Article no: 710106

QTY: 2 for Feed Left and for ECO

Valve plate -EC204 V2

Article no: 1031620

Position3

Quantity in drawing1

Valve plate -EC204 V2

Article no: 1031620

Valve block EC204

Article no: 1027945

Position4

Quantity in drawing1

Valve block EC204

Article no: 1027945

Attachment greasedistributor BEKA EC204

Article no: 1031608

Position5

Quantity in drawing1

Attachment greasedistributor BEKA EC204

Article no: 1031608

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position8

Quantity in drawing1

Coil NG4 IQS lock 12V DT

Article no: 1042065

Coil 12V NG4 On/Off DT

Article no: 7000897

Position12

Quantity in drawing2

Coil 12V NG4 On/Off DT

Article no: 7000897

Directional valve NG4 lock 12V DT

Article no: 7000102

Position18

Quantity in drawing1

Directional valve NG4 lock 12V DT

Article no: 7000102

For S40. (POS.6, 12, 16 incl.)

Nut directional valve NG4

Article no: 1006785

Position16

Quantity in drawing6

Nut directional valve NG4

Article no: 1006785

Hose

Article no: 7001172

Position68

Quantity in drawing1

Hose

Article no: 7001172

Overcenter RJV cylinder block EC02 / EC204

Article no: 790142

Position76

Quantity in drawing2

Overcenter RJV cylinder block EC02 / EC204

Article no: 790142

Used until 2018-05

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position71

Quantity in drawing1

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut (POS.16) and o-ring with choke- valve incl.

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position72

Quantity in drawing1

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

O-ring incl.

Coil NG4 12V JT

Article no: 730313

Position73

Quantity in drawing2

Coil NG4 12V JT

Article no: 730313

Hose Hydraulic motor

Article no: 7000107

Position30

Quantity in drawing2

Hose Hydraulic motor

Article no: 7000107

Hose feed (Block) - EC204

Article no: 7000108

Position34

Quantity in drawing2

Hose feed (Block) - EC204

Article no: 7000108

Protective cover valve block EC204 QS40 left

Article no: 1062218

Position66

Quantity in drawing1

Protective cover valve block EC204 QS40 left

Article no: 1062218

Part of make up

Protective cover valve block EC204 QS40 right

Article no: 1062212

Position65

Quantity in drawing1

Protective cover valve block EC204 QS40 right

Article no: 1062212

Part of make up

Swivel EC204-QS40 complete with slip ring

Article no: 1062975

Position1

Quantity in drawing1

Swivel EC204-QS40 complete with slip ring

Article no: 1062975

For EC204 with sensors

Swivel EC204 with connection block complete

Article no: 1028504

Position2

Quantity in drawing1

Swivel EC204 with connection block complete

Article no: 1028504

Plug JT

Article no: 1045154

Position74

Quantity in drawing1

Plug JT

Article no: 1045154

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Position75

Quantity in drawing1

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Replaced by POS.50 from 2019-05

Hose feed T

Article no: 7001791

Position39

Quantity in drawing1

Hose feed T

Article no: 7001791

Hose feed P

Article no: 7001790

Position40

Quantity in drawing1

Hose feed P

Article no: 7001790

Extension cable 4-pole DT-FULL 1,1m Robo hose

Article no: 8001994

Position53

Quantity in drawing1

Extension cable 4-pole DT-FULL 1,1m Robo hose

Article no: 8001994

For EC-Oil. Instead of agg.cable

Adapter cable DT 4P-DT 2S

Article no: 1057843

Position52

Quantity in drawing1

Adapter cable DT 4P-DT 2S

Article no: 1057843

For EC-Oil

Unit cable ss10 DTM ILME 10P EC02B-EC204-2,5m

Article no: 1033198

Position54

Quantity in drawing1

Unit cable ss10 DTM ILME 10P EC02B-EC204-2,5m

Article no: 1033198

Electronics Module TM2-EC204 DC2

Article no: 1033055

Position69

Quantity in drawing1

Electronics Module TM2-EC204 DC2

Article no: 1033055

Replaced by POS.44 from 2022-11

Adapter cable DTM 4P/2P-3xDT 2S-Joint

Article no: 1032718

Position70

Quantity in drawing1

Adapter cable DTM 4P/2P-3xDT 2S-Joint

Article no: 1032718

Used until 2023-02

Nut UNF 1/2" low

Article no: 6000169

Position9

Quantity in drawing1

Nut UNF 1/2" low

Article no: 6000169

Coil NG4 12V

Article no: 7000205

Position15

Quantity in drawing4

Coil NG4 12V

Article no: 7000205

Seal washer GBR04 1/4"

Article no: 710702

Position35

Quantity in drawing6

Seal washer GBR04 1/4"

Article no: 710702

QTY: 5 for Feed Left and for ECO

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position24

Quantity in drawing8

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of make up

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position58

Quantity in drawing13

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Screw K6S 5x10 10.9 FZB ISO7380

Article no: 6000408

Position46

Quantity in drawing2

Screw K6S 5x10 10.9 FZB ISO7380

Article no: 6000408

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position60

Quantity in drawing3

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Holder Deutsch DT/DTM connector

Article no: 810662

Position62

Quantity in drawing1

Holder Deutsch DT/DTM connector

Article no: 810662

Rubber Steel Clamp Ø10

Article no: 6000003

Position47

Quantity in drawing1

Rubber Steel Clamp Ø10

Article no: 6000003

Use with agg.cable

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position21

Quantity in drawing2

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Seal washer GBR06 3/8"

Article no: 710703

Position29

Quantity in drawing5

Seal washer GBR06 3/8"

Article no: 710703

QTY: 6 for Feed Left and for ECO

Adapter 402-04-04 45°

Article no: 7000104

Position33

Quantity in drawing2

Adapter 402-04-04 45°

Article no: 7000104

Banjo bolt 4451-04

Article no: 710271

Position37

Quantity in drawing1

Banjo bolt 4451-04

Article no: 710271

QTY: 2 for Feed Left and for ECO

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Position42

Quantity in drawing3

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Tilt cylinder EC204

Article no: 1029849

Position26

Quantity in drawing1

Tilt cylinder EC204

Article no: 1029849

Part of top part
