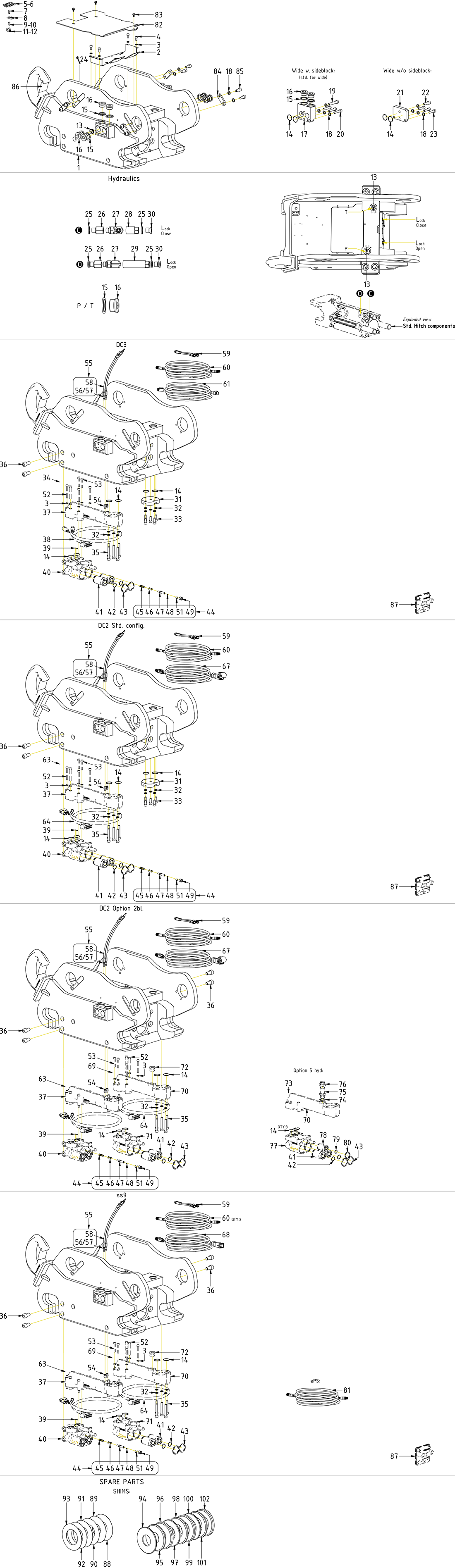

S70 (from 2024)

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Screw MC6S 8x50H 12.9 Geomet ISO4762

Article no: 611597

Position53

Quantity in drawing2

Screw MC6S 8x50H 12.9 Geomet ISO4762

Article no: 611597

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position85

Quantity in drawing8

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

O-ring 4,48x1,78 NBR 90 shore

Article no: 7001849

Position39

Quantity in drawing2

O-ring 4,48x1,78 NBR 90 shore

Article no: 7001849

Hose kit - Machine hitch - Lubrication ECO W

Article no: 7000514

Position55

Quantity in drawing1

Hose kit - Machine hitch - Lubrication ECO W

Article no: 7000514

(POS.56-58 incl.)

Tube sleeve 45° Push-In 15mm

Article no: 7001980

Position57

Quantity in drawing2

Tube sleeve 45° Push-In 15mm

Article no: 7001980

Depends on the specific hitch model

Push-in Coupling R1/8" PGE06KR lubrication kit

Article no: 790172

Position54

Quantity in drawing2

Push-in Coupling R1/8" PGE06KR lubrication kit

Article no: 790172

Hose - 3m - For hose kit - lubricant ECO

Article no: 790176

Position58

Quantity in drawing1

Hose - 3m - For hose kit - lubricant ECO

Article no: 790176

Deutsch Dust protection to DT04-4P

Article no: 8002372

Position62

Quantity in drawing1

Deutsch Dust protection to DT04-4P

Article no: 8002372

Protection Plug DTM06-6S

Article no: 8000620

Position65

Quantity in drawing1

Protection Plug DTM06-6S

Article no: 8000620

Protection Plug DTM06-12SA

Article no: 8002058

Position66

Quantity in drawing1

Protection Plug DTM06-12SA

Article no: 8002058

Lock plate-UNI axle-S60/S70/S80

Article no: 1067225

Position84

Quantity in drawing4

Lock plate-UNI axle-S60/S70/S80

Article no: 1067225

Assemble with slight play

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position18

Quantity in drawing8

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

QTY: 16 for Wide

Block ECO70 W-S70-QH -3hy right (assembly)

Article no: 1074951

Position73

Quantity in drawing1

Block ECO70 W-S70-QH -3hy right (assembly)

Article no: 1074951

(POS.3,14,41,43, 52-53,70, 74-78,80)

Adapter bulkhead 1260-12-12

Article no: 712210

Position75

Quantity in drawing1

Adapter bulkhead 1260-12-12

Article no: 712210

Plug VSTIR34ED 3/4"

Article no: 711532

Position72

Quantity in drawing1

Plug VSTIR34ED 3/4"

Article no: 711532

Protective cover 0301551200

Article no: 711629

Position76

Quantity in drawing1

Protective cover 0301551200

Article no: 711629

Cover plate S70

Article no: 1074714

Position82

Quantity in drawing1

Cover plate S70

Article no: 1074714

Coupling ECO 1/2" female V3

Article no: 1054580

Position78

Quantity in drawing1

Coupling ECO 1/2" female V3

Article no: 1054580

Torque: 60Nm. (POS.79 incl.)

Locktab kit Pejo RC-208-10-15

Article no: 405177

Position86

Quantity in drawing1

Locktab kit Pejo RC-208-10-15

Article no: 405177

Lifting hook spare part

Protection-ECO70 W-Quick hitch

Article no: 1047858

Position87

Quantity in drawing1

Protection-ECO70 W-Quick hitch

Article no: 1047858

Part of make up

Shim Ø156/66 x 1

Article no: 1077560

Position89

Quantity in drawing1

Shim Ø156/66 x 1

Article no: 1077560

Shim Ø156/66 x 0,5

Article no: 1077559

Position88

Quantity in drawing1

Shim Ø156/66 x 0,5

Article no: 1077559

Shim Ø156/81 x 0,5

Article no: 1077561

Position90

Quantity in drawing1

Shim Ø156/81 x 0,5

Article no: 1077561

Pipe Plug DIN 906 3/4"

Article no: 7000261

Position13

Quantity in drawing2

Pipe Plug DIN 906 3/4"

Article no: 7000261

For EC-Oil 2bl. See position on p.3

O-ring 31,47x1,78 NBR 90

Article no: 7001901

Position14

Quantity in drawing6

O-ring 31,47x1,78 NBR 90

Article no: 7001901

QTY depends on config.

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position9

Quantity in drawing1

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

For DC2 1bl

Seal washer GBR16 1"

Article no: 710707

Position15

Quantity in drawing10

Seal washer GBR16 1"

Article no: 710707

QTY depends on config.

Plug Din 908 G1A

Article no: 7001902

Position16

Quantity in drawing10

Plug Din 908 G1A

Article no: 7001902

QTY depends on config.

Side block S70 - for hose connection

Article no: 1073421

Position17

Quantity in drawing2

Side block S70 - for hose connection

Article no: 1073421

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Position19

Quantity in drawing2

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Screw MC6S 10x45 12.9 ZFSHL ISO4762

Article no: 612021

Position20

Quantity in drawing6

Screw MC6S 10x45 12.9 ZFSHL ISO4762

Article no: 612021

Cover plate S70 - without side-block

Article no: 1073393

Position21

Quantity in drawing2

Cover plate S70 - without side-block

Article no: 1073393

Screw MC6S 10x70 12.9 ZFSHL ISO4762

Article no: 6000110

Position35

Quantity in drawing5

Screw MC6S 10x70 12.9 ZFSHL ISO4762

Article no: 6000110

Torque: 79Nm

Screw MC6S 16x30 12.9 ZFSHL ISO4762

Article no: 6000201

Position36

Quantity in drawing2

Screw MC6S 16x30 12.9 ZFSHL ISO4762

Article no: 6000201

Add Loxeal 83-52. Torque: 333Nm

Power plug 12P ECO70/80 W S-QH - DC3

Article no: 8002100

Position38

Quantity in drawing1

Power plug 12P ECO70/80 W S-QH - DC3

Article no: 8002100

Coupling ECO 3/4" female V3

Article no: 1050579

Position41

Quantity in drawing2

Coupling ECO 3/4" female V3

Article no: 1050579

Torque: 60Nm. (POS.42 incl.)

Flat seal for ECO 3/4" V3

Article no: 1050580

Position42

Quantity in drawing2

Flat seal for ECO 3/4" V3

Article no: 1050580

Dirt protection block/coupling ECO 3/4"

Article no: 1028275

Position43

Quantity in drawing2

Dirt protection block/coupling ECO 3/4"

Article no: 1028275

Screw MC6S 8x70 12.9 ZFSHL ISO4762

Article no: 6000286

Position52

Quantity in drawing4

Screw MC6S 8x70 12.9 ZFSHL ISO4762

Article no: 6000286

Block ECO70 W-S70-QH -2hy 1cl 1el left (assembly)

Article no: 1074950

Position63

Quantity in drawing1

Block ECO70 W-S70-QH -2hy 1cl 1el left (assembly)

Article no: 1074950

(POS.3,14,37,39-41,43-44,52-54,64)

Power plug ECO60/80W S-quick hitch DC2

Article no: 8002197

Position64

Quantity in drawing1

Power plug ECO60/80W S-quick hitch DC2

Article no: 8002197

Cable gland torque: 6Nm

Block ECO70 W-S70 -2hy 1el right (assembly)

Article no: 1074953

Position69

Quantity in drawing1

Block ECO70 W-S70 -2hy 1el right (assembly)

Article no: 1074953

(POS.3,14,41,43,52-54,64,70-72 incl.)

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position22

Quantity in drawing2

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Adapter 236-04-04

Article no: 1013885

Position26

Quantity in drawing2

Adapter 236-04-04

Article no: 1013885

Cover plate S70 - without ECO-block

Article no: 1073694

Position31

Quantity in drawing1

Cover plate S70 - without ECO-block

Article no: 1073694

Screw MC6S 10x25 12.9 ZFSHL ISO4762

Article no: 6000195

Position33

Quantity in drawing5

Screw MC6S 10x25 12.9 ZFSHL ISO4762

Article no: 6000195

Torque: 79Nm

Block ECO70 W-S70-QH-2hy 1cl 1el left (assembly/DC3)

Article no: 1077192

Position34

Quantity in drawing1

Block ECO70 W-S70-QH-2hy 1cl 1el left (assembly/DC3)

Article no: 1077192

(POS.3, 14, 37-41,43-44,52-54 incl.)

Shim Ø156/81 x 1

Article no: 1077564

Position91

Quantity in drawing1

Shim Ø156/81 x 1

Article no: 1077564

Shim Ø156/91 x 0,5

Article no: 1077565

Position92

Quantity in drawing1

Shim Ø156/91 x 0,5

Article no: 1077565

Shim Ø156/91 x 1

Article no: 1077566

Position93

Quantity in drawing1

Shim Ø156/91 x 1

Article no: 1077566

Shim chamfered Ø156/66 x 10

Article no: 1075281

Position95

Quantity in drawing1

Shim chamfered Ø156/66 x 10

Article no: 1075281

Shim chamfered Ø156/66 x 5

Article no: 1075285

Position94

Quantity in drawing1

Shim chamfered Ø156/66 x 5

Article no: 1075285

Shim chamfered Ø156/81 x 5

Article no: 1075286

Position97

Quantity in drawing1

Shim chamfered Ø156/81 x 5

Article no: 1075286

Shim chamfered Ø156/66 x 15

Article no: 1075288

Position96

Quantity in drawing1

Shim chamfered Ø156/66 x 15

Article no: 1075288

Shim chamfered Ø156/81 x 10

Article no: 1075282

Position98

Quantity in drawing1

Shim chamfered Ø156/81 x 10

Article no: 1075282

Shim chamfered Ø156/81 x 15

Article no: 1075289

Position99

Quantity in drawing1

Shim chamfered Ø156/81 x 15

Article no: 1075289

Shim chamfered Ø156/91 x 5

Article no: 1075287

Position100

Quantity in drawing1

100

Shim chamfered Ø156/91 x 5

Article no: 1075287

Shim chamfered Ø156/91 x 10

Article no: 1075283

Position101

Quantity in drawing1

101

Shim chamfered Ø156/91 x 10

Article no: 1075283

Shim chamfered Ø156/91 x 15

Article no: 1075290

Position102

Quantity in drawing1

102

Shim chamfered Ø156/91 x 15

Article no: 1075290

Connection plate S70 bolted

Article no: 1074887

Position2

Quantity in drawing1

Connection plate S70 bolted

Article no: 1074887

Seal washer GBR04 1/4"

Article no: 710702

Position25

Quantity in drawing4

Seal washer GBR04 1/4"

Article no: 710702

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position3

Quantity in drawing10

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Adapter ORFS 067005-04-04

Article no: 7000247

Position27

Quantity in drawing2

Adapter ORFS 067005-04-04

Article no: 7000247

Adapter tube-lock long S45/S60/S70/S80

Article no: 1071216

Position29

Quantity in drawing1

Adapter tube-lock long S45/S60/S70/S80

Article no: 1071216

Loxeal 83-52

Rubber Steel Clamp Ø6

Article no: 6000027

Position11

Quantity in drawing1

Rubber Steel Clamp Ø6

Article no: 6000027

Screw K6S 5x10 10.9 FZB ISO7380

Article no: 6000408

Position10

Quantity in drawing3

Screw K6S 5x10 10.9 FZB ISO7380

Article no: 6000408

QTY: 1 for DC2 1bl

Strain relief plate ZL60 4x

Article no: 8000703

Position5

Quantity in drawing1

Strain relief plate ZL60 4x

Article no: 8000703

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

Position7

Quantity in drawing6

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

Holder Deutsch DT/DTM connector

Article no: 810662

Position8

Quantity in drawing2

Holder Deutsch DT/DTM connector

Article no: 810662

Adapter cable M12 8P-2xM12 5S

Article no: 8002139

Position59

Quantity in drawing1

Adapter cable M12 8P-2xM12 5S

Article no: 8002139

Attach to QS sensors

Extension cable 6/8-pole M12-4,4m Robo hose

Article no: 8002249

Position60

Quantity in drawing1

Extension cable 6/8-pole M12-4,4m Robo hose

Article no: 8002249

Attach to Y-split

Plug Din 908 1/4"

Article no: 711505

Position30

Quantity in drawing2

Plug Din 908 1/4"

Article no: 711505

Rubber Steel Clamp Ø10

Article no: 6000003

Position12

Quantity in drawing2

Rubber Steel Clamp Ø10

Article no: 6000003

Adapter tube-lock short S40/S45/S60/S70/S80

Article no: 1071217

Position28

Quantity in drawing1

Adapter tube-lock short S40/S45/S60/S70/S80

Article no: 1071217

Loxeal 83-52

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position32

Quantity in drawing10

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Central lubrication kit ECO W V2

Article no: 1050794

Position44

Quantity in drawing1

Central lubrication kit ECO W V2

Article no: 1050794

(POS.45-51 incl.)

Spring 6058

Article no: 1024113

Position45

Quantity in drawing1

Spring 6058

Article no: 1024113

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

Position46

Quantity in drawing2

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

(O-ring incl. with seal ring)

Grease piston for ECO block

Article no: 1024111

Position47

Quantity in drawing1

Grease piston for ECO block

Article no: 1024111

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

Position48

Quantity in drawing1

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

Nut greasepiston V2

Article no: 1047688

Position49

Quantity in drawing1

Nut greasepiston V2

Article no: 1047688

Wrap with thread sealing tape

O-ring 14x2 70 shore

Article no: 7000767

Position51

Quantity in drawing1

O-ring 14x2 70 shore

Article no: 7000767

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Position50

Quantity in drawing1

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Located inside nut

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Position56

Quantity in drawing2

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Depends on the specific hitch model

Unit cable DC3 EC206B-EC233-3,5m

Article no: 8002371

Position61

Quantity in drawing1

Unit cable DC3 EC206B-EC233-3,5m

Article no: 8002371

Attach to 4P

Unit cable ss9-2 ECO W (Q)S60-(Q)S80-3,5m

Article no: 1036846

Position68

Quantity in drawing1

Unit cable ss9-2 ECO W (Q)S60-(Q)S80-3,5m

Article no: 1036846

Attach to Left 12P

Seal washer GBR12 3/4"

Article no: 710706

Position74

Quantity in drawing1

Seal washer GBR12 3/4"

Article no: 710706

Flat seal for ECO 1/2" V3

Article no: 1050018

Position79

Quantity in drawing1

Flat seal for ECO 1/2" V3

Article no: 1050018

Dirt protection block/coupling ECO 1/2"

Article no: 1028229

Position80

Quantity in drawing1

Dirt protection block/coupling ECO 1/2"

Article no: 1028229

Unit cable ePS ss9, ss10, DC2 ECO W S45-S80-3m

Article no: 8002458

Position81

Quantity in drawing1

Unit cable ePS ss9, ss10, DC2 ECO W S45-S80-3m

Article no: 8002458

Screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Ribbed flange

Article no: 6000120

Position83

Quantity in drawing3

Screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Ribbed flange

Article no: 6000120

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Position4

Quantity in drawing4

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Unit cable DC2 ECO W (Q)S60-(Q)S80-3,5m

Article no: 1048528

Position67

Quantity in drawing1

Unit cable DC2 ECO W (Q)S60-(Q)S80-3,5m

Article no: 1048528

Attach to Left 12P

Screw MC6S 10x35 12.9 ZFSHL ISO4762

Article no: 612019

Position23

Quantity in drawing6

Screw MC6S 10x35 12.9 ZFSHL ISO4762

Article no: 612019

Strain relief plate ZL87 6x

Article no: 8000704

Position6

Quantity in drawing1

Strain relief plate ZL87 6x

Article no: 8000704
