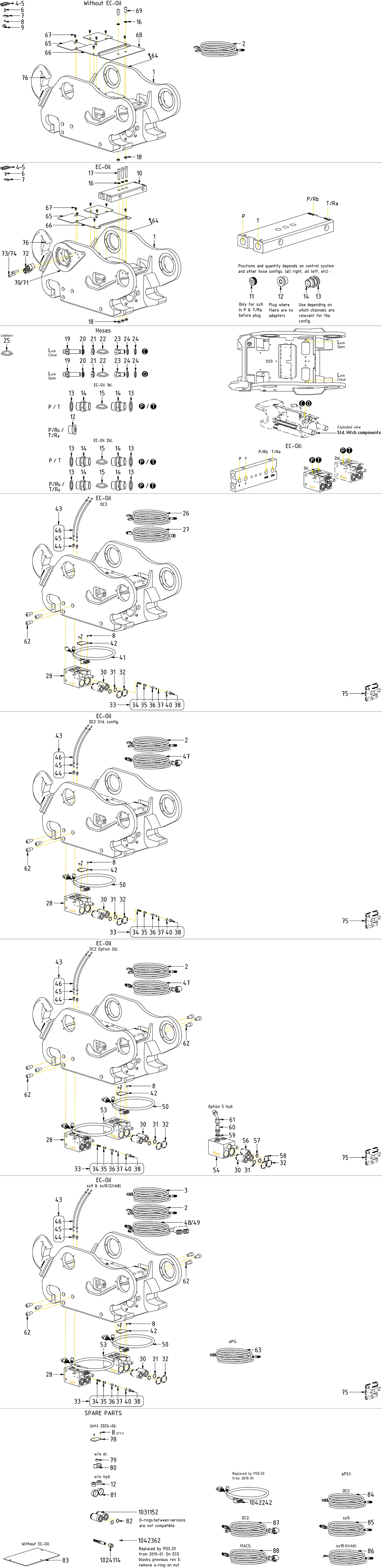

QS70

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Rubber Steel Clamp Ø6

Article no: 6000027

Position9

Quantity in drawing1

Rubber Steel Clamp Ø6

Article no: 6000027

Strain relief plate ZL60 4x

Article no: 8000703

Position4

Quantity in drawing1

Strain relief plate ZL60 4x

Article no: 8000703

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

Position6

Quantity in drawing10

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

Holder Deutsch DT/DTM connector

Article no: 810662

Position7

Quantity in drawing6

Holder Deutsch DT/DTM connector

Article no: 810662

Adapter bulkhead extended 1260-04-40

Article no: 710261

Position19

Quantity in drawing2

Adapter bulkhead extended 1260-04-40

Article no: 710261

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position20

Quantity in drawing2

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Nut bulkhead adapter 1270-04

Article no: 710250

Position21

Quantity in drawing2

Nut bulkhead adapter 1270-04

Article no: 710250

Nut M6LM 6. FZB M12

Article no: 610924

Position18

Quantity in drawing3

Nut M6LM 6. FZB M12

Article no: 610924

QTY: 2 without EC-Oil

Block ECO70 W -QH-2hy 1cl-V3

Article no: 1074023

Position28

Quantity in drawing1

Block ECO70 W -QH-2hy 1cl-V3

Article no: 1074023

(POS.29-30, 32-33 incl.)

Block ECO70 W QH with dowelpins V2

Article no: 1074020

Position29

Quantity in drawing1

Block ECO70 W QH with dowelpins V2

Article no: 1074020

Banjo bolt 4451-04

Article no: 710271

Position23

Quantity in drawing2

Banjo bolt 4451-04

Article no: 710271

Cover plate Power plug-ECO60/70 W-quick hitch

Article no: 1041139

Position78

Quantity in drawing1

Cover plate Power plug-ECO60/70 W-quick hitch

Article no: 1041139

Used for block w/o cable slot

Unit cable 3rd PTY DC2/DC3 ECO W QS/S45-QS/S80-3m

Article no: 8002477

Position84

Quantity in drawing1

Unit cable 3rd PTY DC2/DC3 ECO W QS/S45-QS/S80-3m

Article no: 8002477

Attach to 6P (DC2 ePS1) NB! Only compatible with 8002459

Cable ECO W-machine-DC2-DTM(12+6)-QS/QSC-3,5m

Article no: 1042248

Position87

Quantity in drawing1

Cable ECO W-machine-DC2-DTM(12+6)-QS/QSC-3,5m

Article no: 1042248

Replaced by POS.47 from 2018-08 Attach to 6P and 12P

Adapter 489-08-08

Article no: 710166

Position61

Quantity in drawing1

Adapter 489-08-08

Article no: 710166

Pipe Plug DIN 906 M22x1,5

Article no: 7000457

Position11

Quantity in drawing2

Pipe Plug DIN 906 M22x1,5

Article no: 7000457

Hose

Article no: 7000499

Position15

Quantity in drawing2

Hose

Article no: 7000499

(QTY: 4 for 2bl.)

Adapter 136-12-12

Article no: 710126

Position14

Quantity in drawing6

Adapter 136-12-12

Article no: 710126

QTY depends on config.

Hose

Article no: 7000936

Position22

Quantity in drawing2

Hose

Article no: 7000936

Cover plate ECO60/70/80 W - QH

Article no: 1074691

Position42

Quantity in drawing1

Cover plate ECO60/70/80 W - QH

Article no: 1074691

Power plug ECO60-80 W-quick hitch -DTM

Article no: 1042243

Position50

Quantity in drawing1

Power plug ECO60-80 W-quick hitch -DTM

Article no: 1042243

Cable gland torque: 6Nm

Unit cable 3rd PTY ss10 ECO W QS45-QS80-3m

Article no: 1047111

Position86

Quantity in drawing1

Unit cable 3rd PTY ss10 ECO W QS45-QS80-3m

Article no: 1047111

L.Bl: WH>11. R.Bl: BR>1, BL>2, GR>11

Unit cable MACS ECO W QS60-QS70-3,5m

Article no: 1043276

Position88

Quantity in drawing1

Unit cable MACS ECO W QS60-QS70-3,5m

Article no: 1043276

Attach to 12P

Connection block QS70,QS80 ECO feed V1

Article no: 1037805

Position10

Quantity in drawing1

Connection block QS70,QS80 ECO feed V1

Article no: 1037805

Unit cable ePS ss0-ss10 ECO W QS45-QS80-3m

Article no: 1042246

Position63

Quantity in drawing1

Unit cable ePS ss0-ss10 ECO W QS45-QS80-3m

Article no: 1042246

Attach to Right 6P

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position3

Quantity in drawing1

Adapter cable M12 8P-DTM 6S

Article no: 842148

Attach to Left 6P

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position16

Quantity in drawing3

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

QTY: 2 without EC-Oil

Plug VSTIR34ED 3/4"

Article no: 711532

Position12

Quantity in drawing2

Plug VSTIR34ED 3/4"

Article no: 711532

QTY depends on config.

Coupling ECO 1/2" female V3

Article no: 1054580

Position56

Quantity in drawing1

Coupling ECO 1/2" female V3

Article no: 1054580

Torque: 60Nm. (POS.57 incl.)

Locktab kit Pejo RC-208-10-15

Article no: 405177

Position76

Quantity in drawing1

Locktab kit Pejo RC-208-10-15

Article no: 405177

Lifting hook spare part

Protection-ECO70 W-Quick hitch

Article no: 1047858

Position75

Quantity in drawing1

Protection-ECO70 W-Quick hitch

Article no: 1047858

Part of make up

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Position17

Quantity in drawing3

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Screw MC6S 10x45 12.9 ZFSHL ISO4762

Article no: 612021

Position73

Quantity in drawing4

Screw MC6S 10x45 12.9 ZFSHL ISO4762

Article no: 612021

With inserts

Screw MC6S 16x30 12.9 ZFSHL ISO4762

Article no: 6000201

Position62

Quantity in drawing3

Screw MC6S 16x30 12.9 ZFSHL ISO4762

Article no: 6000201

Loxeal 83-52

Power plug 12P ECO70/80 W S-QH - DC3

Article no: 8002100

Position41

Quantity in drawing1

Power plug 12P ECO70/80 W S-QH - DC3

Article no: 8002100

Cable gland torque: 6Nm

Coupling ECO 3/4" female V3

Article no: 1050579

Position30

Quantity in drawing2

Coupling ECO 3/4" female V3

Article no: 1050579

Torque: 60Nm. (POS.31 incl.)

Flat seal for ECO 3/4" V3

Article no: 1050580

Position31

Quantity in drawing2

Flat seal for ECO 3/4" V3

Article no: 1050580

Dirt protection block/coupling ECO 3/4"

Article no: 1028275

Position32

Quantity in drawing2

Dirt protection block/coupling ECO 3/4"

Article no: 1028275

Power plug ECO W-male-housing

Article no: 1041814

Position80

Quantity in drawing1

Power plug ECO W-male-housing

Article no: 1041814

Pipe Plug DIN 906 M16x1,5

Article no: 711529

Position79

Quantity in drawing1

Pipe Plug DIN 906 M16x1,5

Article no: 711529

Unit cable 3rd PTY ss9-2 ECO W QS45-QS80-3m

Article no: 1047113

Position85

Quantity in drawing1

Unit cable 3rd PTY ss9-2 ECO W QS45-QS80-3m

Article no: 1047113

Attach to Right 12P

Tube sleeve straight Push-In-30mm

Article no: 790175

Position45

Quantity in drawing2

Tube sleeve straight Push-In-30mm

Article no: 790175

Adapter cable M12 8P-DTM 3S-QLM 3,4m

Article no: 8000863

Position26

Quantity in drawing1

Adapter cable M12 8P-DTM 3S-QLM 3,4m

Article no: 8000863

Attach to QS sensors

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

Position8

Quantity in drawing4

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

QTY depends on config.

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position69

Quantity in drawing2

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Seal washer GBR08 1/2"

Article no: 710704

Position59

Quantity in drawing1

Seal washer GBR08 1/2"

Article no: 710704

Hose kit - Machine hitch - Lubrication ECO W

Article no: 7000514

Position43

Quantity in drawing1

Hose kit - Machine hitch - Lubrication ECO W

Article no: 7000514

(POS.44-46 incl.)

Hose - 3m - For hose kit - lubricant ECO

Article no: 790176

Position46

Quantity in drawing1

Hose - 3m - For hose kit - lubricant ECO

Article no: 790176

Protection Plug DTM06-6S

Article no: 8000620

Position51

Quantity in drawing1

Protection Plug DTM06-6S

Article no: 8000620

QTY depends on config.

Protection Plug DTM06-12SA

Article no: 8002058

Position52

Quantity in drawing1

Protection Plug DTM06-12SA

Article no: 8002058

QTY depends on config.

Seal washer GBR04 1/4"

Article no: 710702

Position24

Quantity in drawing4

Seal washer GBR04 1/4"

Article no: 710702

Seal washer GBR12 3/4"

Article no: 710706

Position13

Quantity in drawing6

Seal washer GBR12 3/4"

Article no: 710706

QTY depends on config.

Screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Ribbed flange

Article no: 6000120

Position67

Quantity in drawing7

Screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Ribbed flange

Article no: 6000120

Flat seal for ECO 1/2" V3

Article no: 1050018

Position57

Quantity in drawing1

Flat seal for ECO 1/2" V3

Article no: 1050018

Dirt protection block/coupling ECO 1/2"

Article no: 1028229

Position58

Quantity in drawing1

Dirt protection block/coupling ECO 1/2"

Article no: 1028229

Adapter bulkhead 1260-08-08

Article no: 710244

Position60

Quantity in drawing1

Adapter bulkhead 1260-08-08

Article no: 710244

Unit cable ss9-2 ECO W (Q)S60-(Q)S80-3,5m

Article no: 1036846

Position48

Quantity in drawing1

Unit cable ss9-2 ECO W (Q)S60-(Q)S80-3,5m

Article no: 1036846

Attach to Left 12P

Unit cable ss10 ECO W QS60-QS80-3,5m

Article no: 1029500

Position49

Quantity in drawing1

Unit cable ss10 ECO W QS60-QS80-3,5m

Article no: 1029500

Attach to both 12P

Adapter cable M12 8P-2xDTM 3S-QLM 4,5m

Article no: 842149

Position2

Quantity in drawing1

Adapter cable M12 8P-2xDTM 3S-QLM 4,5m

Article no: 842149

Attach to QS sensors

Unit cable DC2 ECO W (Q)S60-(Q)S80-3,5m

Article no: 1048528

Position47

Quantity in drawing1

Unit cable DC2 ECO W (Q)S60-(Q)S80-3,5m

Article no: 1048528

Attach to Left 12P

Strain relief plate ZL87 6x

Article no: 8000704

Position5

Quantity in drawing1

Strain relief plate ZL87 6x

Article no: 8000704

Cover QS70 small

Article no: 1040068

Position65

Quantity in drawing2

Cover QS70 small

Article no: 1040068

Cover QS70 middle

Article no: 1052582

Position68

Quantity in drawing1

Cover QS70 middle

Article no: 1052582

Cover QS70 V2 ECO

Article no: 1052640

Position66

Quantity in drawing1

Cover QS70 V2 ECO

Article no: 1052640

Mounting plate-Hose Holder QS70 UNI Ø100

Article no: 1049927

Position71

Quantity in drawing2

Mounting plate-Hose Holder QS70 UNI Ø100

Article no: 1049927

With inserts

Mounting plate-Hose Holder QS70 UNI Ø116

Article no: 1040757

Position70

Quantity in drawing2

Mounting plate-Hose Holder QS70 UNI Ø116

Article no: 1040757

With inserts

Tube clamp TSLK4030 ALU

Article no: 7000928

Position72

Quantity in drawing2

Tube clamp TSLK4030 ALU

Article no: 7000928

With inserts and with welded

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

Position74

Quantity in drawing4

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

With welded

Protection Plug HECO70 hydraulic

Article no: 7000156

Position81

Quantity in drawing2

Protection Plug HECO70 hydraulic

Article no: 7000156

O-ring 21,95x1,78 PU/90 - ECO70 3/4"

Article no: 1024735

Position82

Quantity in drawing2

O-ring 21,95x1,78 PU/90 - ECO70 3/4"

Article no: 1024735

Used until 2020-03 Separate seal kit: 7000047

Cover QS70

Article no: 1040065

Position83

Quantity in drawing1

Cover QS70

Article no: 1040065

Replaced by POS.66 & POS.68 between 2019-04 - 2019-10

Block ECO70 W-quick hitch -3hy-V2

Article no: 1055720

Position54

Quantity in drawing1

Block ECO70 W-quick hitch -3hy-V2

Article no: 1055720

(POS.30, 32, 55-56, 58 incl.)

Block ECO70 W-for 3-hyd-quick hitch -with dowel pins

Article no: 1047971

Position55

Quantity in drawing1

Block ECO70 W-for 3-hyd-quick hitch -with dowel pins

Article no: 1047971

Central lubrication kit ECO W V2

Article no: 1050794

Position33

Quantity in drawing1

Central lubrication kit ECO W V2

Article no: 1050794

(POS.34-40 incl.)

Spring 6058

Article no: 1024113

Position34

Quantity in drawing1

Spring 6058

Article no: 1024113

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

Position35

Quantity in drawing2

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

(O-ring incl. with seal ring)

Grease piston for ECO block

Article no: 1024111

Position36

Quantity in drawing1

Grease piston for ECO block

Article no: 1024111

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

Position37

Quantity in drawing1

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

Nut greasepiston V2

Article no: 1047688

Position38

Quantity in drawing1

Nut greasepiston V2

Article no: 1047688

Wrap with thread sealing tape

O-ring 14x2 70 shore

Article no: 7000767

Position40

Quantity in drawing1

O-ring 14x2 70 shore

Article no: 7000767

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Position39

Quantity in drawing1

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Located inside nut

Push-In coupling straight Ø6mm M8x1

Article no: 790185

Position44

Quantity in drawing2

Push-In coupling straight Ø6mm M8x1

Article no: 790185
