Top ECO40 W

Pos

Article

Extra Info

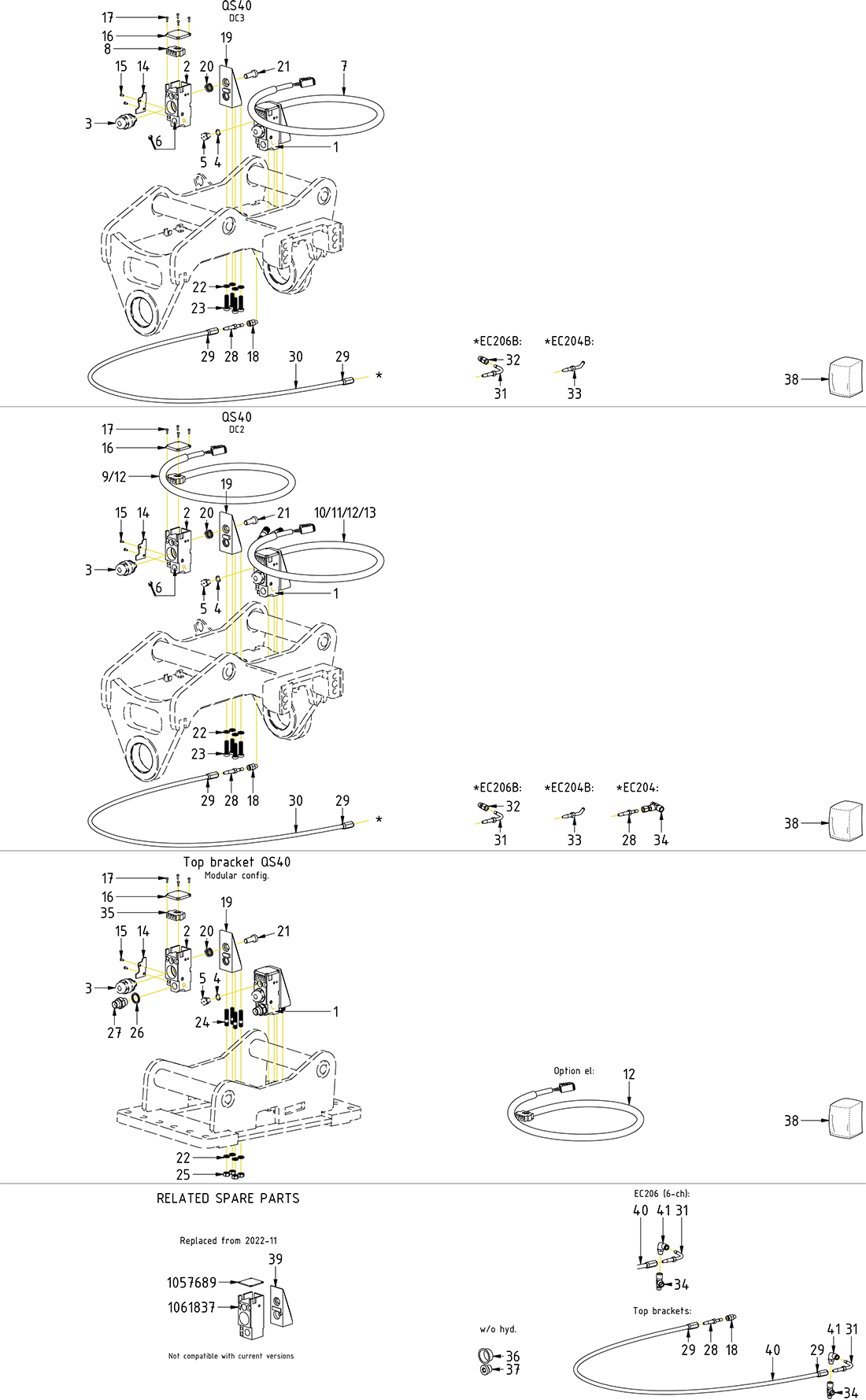

Quantity in drawing

Price (excl. VAT)

Attachment block ECO40 W-top bracket-with pin V2

Article no: 1069400

Position19

Quantity in drawing2

2.345,00 DKK

excl. VAT

Out of stock

Attachment block ECO40 W-top bracket-with pin V2

Article no: 1069400

2.345,00 DKK

Out of stock

Power plug 12P ECO40 W - Top - DC3

Article no: 8002540

Position7

Quantity in drawing1

1.543,00 DKK

excl. VAT

Few in stock (1)

Power plug 12P ECO40 W - Top - DC3

Article no: 8002540

1.543,00 DKK

Few in stock (1)

Adapter L 1/8" 1x ext / 2x int lubrication

Article no: 7001309

Position34

Quantity in drawing1

181,00 DKK

excl. VAT

Few in stock (2)

Adapter L 1/8" 1x ext / 2x int lubrication

Article no: 7001309

181,00 DKK

Few in stock (2)

Attachment block ECO40 W-top bracket-with pin

Article no: 1061832

Position39

Quantity in drawing1

2.787,00 DKK

excl. VAT

Out of stock

Attachment block ECO40 W-top bracket-with pin

Article no: 1061832

Replaced by POS.19 from 2022-11

2.787,00 DKK

Out of stock

Transport Protection ECO40 TECO

Article no: 1062517

Position38

Quantity in drawing1

301,70 DKK

excl. VAT

Few in stock (2)

Transport Protection ECO40 TECO

Article no: 1062517

Part of make up

301,70 DKK

Few in stock (2)

Power plug ECO40 W Top QS40-ePS-TS Left

Article no: 8002454

Position11

Quantity in drawing1

2.181,00 DKK

excl. VAT

Out of stock

Power plug ECO40 W Top QS40-ePS-TS Left

Article no: 8002454

For EC204B ePS2 (L.)

2.181,00 DKK

Out of stock

Side plate ECO40W-top bracket

Article no: 1079427

Position14

Quantity in drawing2

37,90 DKK

excl. VAT

Out of stock

Side plate ECO40W-top bracket

Article no: 1079427

37,90 DKK

Out of stock

Adapter coupling straight R1/8"

Article no: 7001721

Position32

Quantity in drawing1

50,90 DKK

excl. VAT

Out of stock

Adapter coupling straight R1/8"

Article no: 7001721

(Replaces the plug on motor block)

50,90 DKK

Out of stock

Screw MF6S 3x8 A4

Article no: 6000445

Position15

Quantity in drawing4

7,80 DKK

excl. VAT

Out of stock

Screw MF6S 3x8 A4

Article no: 6000445

7,80 DKK

Out of stock

Power plug ECO40 W Top QS40 Left

Article no: 8002699

Position10

Quantity in drawing1

1.224,00 DKK

excl. VAT

Out of stock

Power plug ECO40 W Top QS40 Left

Article no: 8002699

(L.)

1.224,00 DKK

Out of stock

Pressure spring Dy=18 Dt=2 L0=15 Lst max=8,5

Article no: 6000324

Position20

Quantity in drawing2

83,60 DKK

excl. VAT

Few in stock (2)

Pressure spring Dy=18 Dt=2 L0=15 Lst max=8,5

Article no: 6000324

83,60 DKK

Few in stock (2)

Power plug ECO40 W Top QS40 Right

Article no: 8002288

Position9

Quantity in drawing1

1.224,00 DKK

excl. VAT

Out of stock

Power plug ECO40 W Top QS40 Right

Article no: 8002288

(R.)

1.224,00 DKK

Out of stock

Power plug ECO40W-Plug top bracket

Article no: 1063916

Position8

Quantity in drawing1

939,70 DKK

excl. VAT

Few in stock (1)

Power plug ECO40W-Plug top bracket

Article no: 1063916

939,70 DKK

Few in stock (1)

Stud bolt M8x30 10.9 DIN939

Article no: 611185

Position24

Quantity in drawing8

48,30 DKK

excl. VAT

Few in stock (3)

Stud bolt M8x30 10.9 DIN939

Article no: 611185

Loxeal 83-52

48,30 DKK

Few in stock (3)

Nut steel M8 10. untreated DIN 934

Article no: 611187

Position25

Quantity in drawing8

7,80 DKK

excl. VAT

In stock

Nut steel M8 10. untreated DIN 934

Article no: 611187

7,80 DKK

In stock

Protection Plug TECO 45/50 hydraulic

Article no: 7000152

Position36

Quantity in drawing2

7,80 DKK

excl. VAT

Few in stock (4)

Protection Plug TECO 45/50 hydraulic

Article no: 7000152

7,80 DKK

Few in stock (4)

Tube sleeve 45° Push-In 15mm

Article no: 7001980

Position33

Quantity in drawing1

113,80 DKK

excl. VAT

Out of stock

Tube sleeve 45° Push-In 15mm

Article no: 7001980

113,80 DKK

Out of stock

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Position28

Quantity in drawing2

73,30 DKK

excl. VAT

Out of stock

Tube sleeve straight Push-In - 20mm

Article no: 7001521

73,30 DKK

Out of stock

Power plug ECO40 W Top QS40-ePS-TS

Article no: 8001885

Position13

Quantity in drawing1

2.138,00 DKK

excl. VAT

Few in stock (3)

Power plug ECO40 W Top QS40-ePS-TS

Article no: 8001885

For EC206B ePS2 (L.)

2.138,00 DKK

Few in stock (3)

Screw MC6S 2.5x8 8.8 FZB ISO4762

Article no: 6000325

Position17

Quantity in drawing8

7,80 DKK

excl. VAT

In stock

Screw MC6S 2.5x8 8.8 FZB ISO4762

Article no: 6000325

7,80 DKK

In stock

Block ECO40 W-top bracket 1hy 1cl V3

Article no: 1081403

Position1

Quantity in drawing1

8.034,00 DKK

excl. VAT

Out of stock

Block ECO40 W-top bracket 1hy 1cl V3

Article no: 1081403

(POS.3-5 incl.)

8.034,00 DKK

Out of stock

Screw MLC6S 10x25 8.8 FZB

Article no: 6000323

Position21

Quantity in drawing2

12,90 DKK

excl. VAT

In stock

Screw MLC6S 10x25 8.8 FZB

Article no: 6000323

Loxeal 83-52

12,90 DKK

In stock

Cover plate Power plug-ECO40W-top bracket V2

Article no: 1069398

Position16

Quantity in drawing2

215,50 DKK

excl. VAT

Few in stock (2)

Cover plate Power plug-ECO40W-top bracket V2

Article no: 1069398

215,50 DKK

Few in stock (2)

Block ECO40 W-top bracket 1hy V3

Article no: 1081402

Position2

Quantity in drawing1

7.681,00 DKK

excl. VAT

Out of stock

Block ECO40 W-top bracket 1hy V3

Article no: 1081402

(POS.3 incl.)

7.681,00 DKK

Out of stock

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

Position41

Quantity in drawing1

250,00 DKK

excl. VAT

In stock

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

250,00 DKK

In stock

Power plug ECO40 W Top QS40

Article no: 1057841

Position12

Quantity in drawing2

974,10 DKK

excl. VAT

Few in stock (1)

Power plug ECO40 W Top QS40

Article no: 1057841

QTY: 1 for EC206B ePS2 (R.)

974,10 DKK

Few in stock (1)

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Position5

Quantity in drawing1

301,70 DKK

excl. VAT

In stock

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Loxeal 58-12. Torque: 30Nm

301,70 DKK

In stock

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

Position29

Quantity in drawing2

76,70 DKK

excl. VAT

Out of stock

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

76,70 DKK

Out of stock

Washer copper 14x10x0,9

Article no: 6000065

Position4

Quantity in drawing1

12,10 DKK

excl. VAT

In stock

Washer copper 14x10x0,9

Article no: 6000065

12,10 DKK

In stock

Tube sleeve 90° Push-In

Article no: 7000318

Position31

Quantity in drawing1

139,70 DKK

excl. VAT

Out of stock

Tube sleeve 90° Push-In

Article no: 7000318

139,70 DKK

Out of stock

Hose Bulk - HT 8,3x4

Article no: 7001303

Position30

Quantity in drawing1

78,50 DKK

excl. VAT

Out of stock

Hose Bulk - HT 8,3x4

Article no: 7001303

EC206B: 1030mm. EC204B: 420mm. EC204: 380mm

78,50 DKK

Out of stock

Push-In coupling straight Ø6mm M8x1

Article no: 790185

Position18

Quantity in drawing1

156,00 DKK

excl. VAT

In stock

Push-In coupling straight Ø6mm M8x1

Article no: 790185

Loxeal 83-52

156,00 DKK

In stock

Adapter 136-06-06

Article no: 710106

Position27

Quantity in drawing2

22,40 DKK

excl. VAT

In stock

Adapter 136-06-06

Article no: 710106

22,40 DKK

In stock

Coupling ECO45/50 3/8" male - top bracket V2

Article no: 1028873

Position3

Quantity in drawing2

1.810,00 DKK

excl. VAT

In stock

Coupling ECO45/50 3/8" male - top bracket V2

Article no: 1028873

Torque: 60Nm

1.810,00 DKK

In stock

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Position23

Quantity in drawing8

12,10 DKK

excl. VAT

In stock

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Torque: 34Nm

12,10 DKK

In stock

Plug VSTIR38ED 3/8"

Article no: 711504

Position37

Quantity in drawing2

48,30 DKK

excl. VAT

Few in stock (4)

Plug VSTIR38ED 3/8"

Article no: 711504

48,30 DKK

Few in stock (4)

Seal washer GBR06 3/8"

Article no: 710703

Position26

Quantity in drawing2

7,80 DKK

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

7,80 DKK

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position22

Quantity in drawing8

16,40 DKK

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

16,40 DKK

In stock
