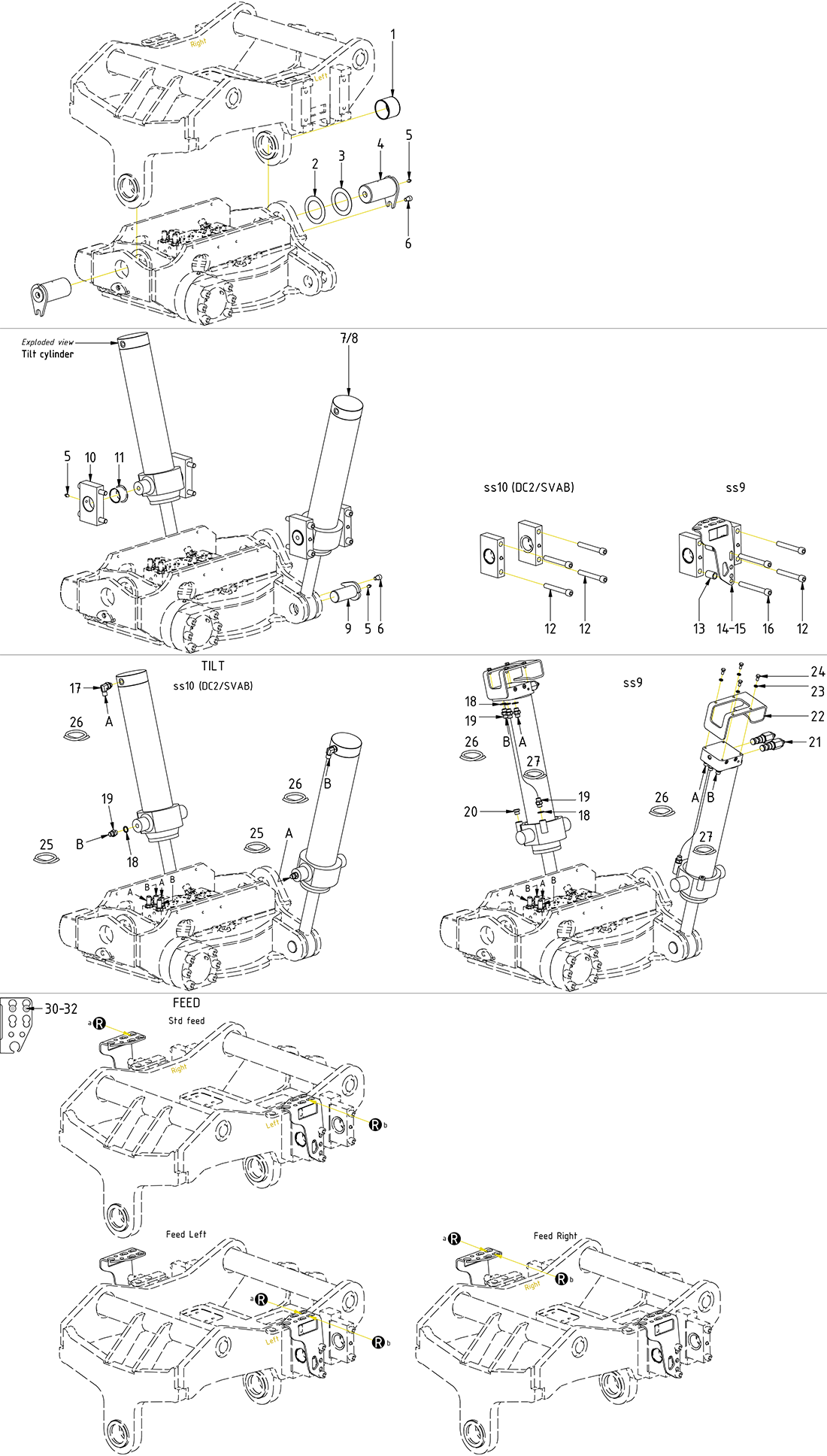

Std. Top components 'ECHF'

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Screw MC6S 12x16H 12.9 ZFSHL ISO4762

Article no: 610470

Position6

Quantity in drawing3

76,70 DKK

excl. VAT

In stock

Screw MC6S 12x16H 12.9 ZFSHL ISO4762

Article no: 610470

Loxeal

76,70 DKK

In stock

Yoke Bracket EC30 complete

Article no: 300288K

Position10

Quantity in drawing4

2.353,00 DKK

excl. VAT

Few in stock (4)

Yoke Bracket EC30 complete

Article no: 300288K

(POS.5, 11 incl.)

2.353,00 DKK

Few in stock (4)

Tilt cylinder EC30 Ø90/45 E.L as of 031001

Article no: 301630

Position7

Quantity in drawing2

12.840,00 DKK

excl. VAT

Few in stock (2)

Tilt cylinder EC30 Ø90/45 E.L as of 031001

Article no: 301630

12.840,00 DKK

Few in stock (2)

Shim tilt axle - EC30 - spring steel 71x106x0,5

Article no: 650503

Position2

Quantity in drawing1

88,80 DKK

excl. VAT

In stock

Shim tilt axle - EC30 - spring steel 71x106x0,5

Article no: 650503

Use as required

88,80 DKK

In stock

Tilt cylinder EC30 Ø90/45 for overcenter

Article no: 1014265

Position8

Quantity in drawing2

13.200,00 DKK

excl. VAT

Few in stock (3)

Tilt cylinder EC30 Ø90/45 for overcenter

Article no: 1014265

13.200,00 DKK

Few in stock (3)

Cylinder axle EC30 hardened

Article no: 302854

Position9

Quantity in drawing2

1.250,00 DKK

excl. VAT

Few in stock (2)

Cylinder axle EC30 hardened

Article no: 302854

1.250,00 DKK

Few in stock (2)

Shim tilt axle - EC30 - spring steel 71x106x1

Article no: 650504

Position3

Quantity in drawing1

92,20 DKK

excl. VAT

In stock

Shim tilt axle - EC30 - spring steel 71x106x1

Article no: 650504

Use as required

92,20 DKK

In stock

Hose bracket UNI left

Article no: 1005725

Position14

Quantity in drawing1

672,40 DKK

excl. VAT

Few in stock (2)

Hose bracket UNI left

Article no: 1005725

672,40 DKK

Few in stock (2)

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position24

Quantity in drawing8

7,80 DKK

excl. VAT

In stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

7,80 DKK

In stock

Hose bracket UNI right

Article no: 1005726

Position15

Quantity in drawing1

672,40 DKK

excl. VAT

Few in stock (1)

Hose bracket UNI right

Article no: 1005726

672,40 DKK

Few in stock (1)

Spacer Hose Bracket 39mm

Article no: 1005911

Position13

Quantity in drawing4

267,20 DKK

excl. VAT

In stock

Spacer Hose Bracket 39mm

Article no: 1005911

267,20 DKK

In stock

Bushing WB802/EB1 50/55/65x37,5 WF

Article no: 630403

Position11

Quantity in drawing4

612,10 DKK

excl. VAT

In stock

Bushing WB802/EB1 50/55/65x37,5 WF

Article no: 630403

612,10 DKK

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

Position32

Quantity in drawing2

21,60 DKK

excl. VAT

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

21,60 DKK

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position30

Quantity in drawing2

44,80 DKK

excl. VAT

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

44,80 DKK

In stock

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Position12

Quantity in drawing8

54,30 DKK

excl. VAT

In stock

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

QTY: 4 for ss9 Torque: 333Nm

54,30 DKK

In stock

Overcenter adjustable-EC219/226/233/20/30

Article no: 730277

Position21

Quantity in drawing4

3.060,00 DKK

excl. VAT

In stock

Overcenter adjustable-EC219/226/233/20/30

Article no: 730277

Torque: 60Nm

3.060,00 DKK

In stock

Tilt axle EC30 lubrication at both ends

Article no: 303134

Position4

Quantity in drawing2

3.621,00 DKK

excl. VAT

Out of stock

Tilt axle EC30 lubrication at both ends

Article no: 303134

3.621,00 DKK

Out of stock

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Position16

Quantity in drawing4

100,00 DKK

excl. VAT

In stock

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Torque: 333Nm

100,00 DKK

In stock

Lubrication nipple 1/8 straight

Article no: 711403

Position5

Quantity in drawing7

8,60 DKK

excl. VAT

Few in stock (1)

Lubrication nipple 1/8 straight

Article no: 711403

8,60 DKK

Few in stock (1)

Hose protection Tiltcyl EC20B/30/219/226/233/326/ Overcenter

Article no: 1014280

Position22

Quantity in drawing2

310,30 DKK

excl. VAT

In stock

Hose protection Tiltcyl EC20B/30/219/226/233/326/ Overcenter

Article no: 1014280

310,30 DKK

In stock

Adapter 401-06-06 90°

Article no: 710152

Position17

Quantity in drawing2

181,00 DKK

excl. VAT

Few in stock (5)

Adapter 401-06-06 90°

Article no: 710152

181,00 DKK

Few in stock (5)

Adapter bulkhead 1260-06-32

Article no: 710242

Position31

Quantity in drawing2

95,70 DKK

excl. VAT

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

95,70 DKK

In stock

Seal washer GBR06 3/8"

Article no: 710703

Position18

Quantity in drawing2

7,80 DKK

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

QTY: 8 for ss9

7,80 DKK

In stock

Adapter 136-06-06

Article no: 710106

Position19

Quantity in drawing2

22,40 DKK

excl. VAT

In stock

Adapter 136-06-06

Article no: 710106

QTY: 8 for ss9

22,40 DKK

In stock

Bushing tilt EC30 WB802/EB1 70/75x60

Article no: 630302

Position1

Quantity in drawing1

413,80 DKK

excl. VAT

In stock

Bushing tilt EC30 WB802/EB1 70/75x60

Article no: 630302

413,80 DKK

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position23

Quantity in drawing8

16,40 DKK

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

16,40 DKK

In stock

Plug VSTIR38ED 3/8"

Article no: 711504

Position20

Quantity in drawing2

48,30 DKK

excl. VAT

Few in stock (4)

Plug VSTIR38ED 3/8"

Article no: 711504

48,30 DKK

Few in stock (4)
