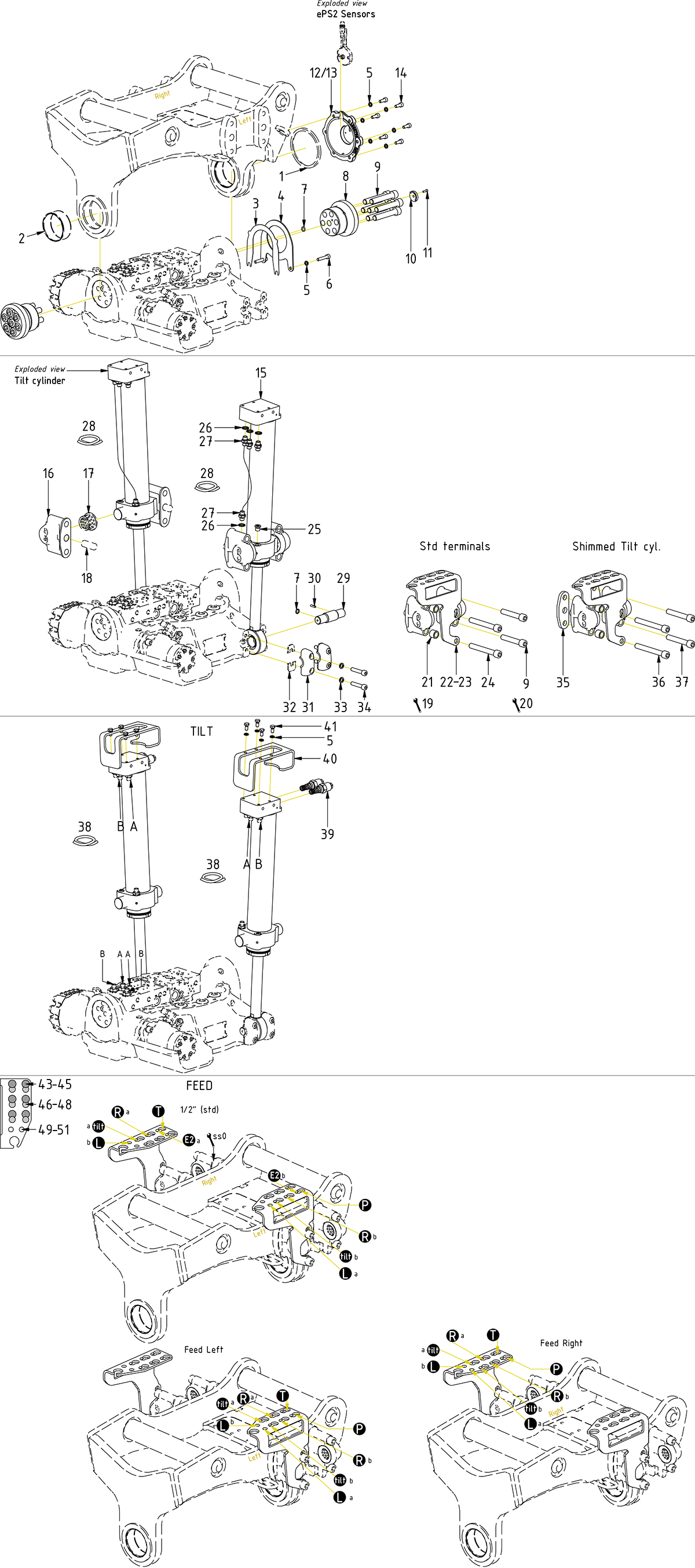

Std. Top components 'QSM'

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Position23

Quantity in drawing4

54,30 DKK

excl. VAT

In stock

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Torque: 333Nm

54,30 DKK

In stock

Hose Tilt Long - EC214

Article no: 743001

Position37

Quantity in drawing4

767,20 DKK

excl. VAT

Few in stock (3)

Hose Tilt Long - EC214

Article no: 743001

767,20 DKK

Few in stock (3)

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position30

Quantity in drawing4

1.147,00 DKK

excl. VAT

Few in stock (3)

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

(POS.31 incl.)

1.147,00 DKK

Few in stock (3)

Yoke Bracket tilt cylinder EC209, EC214 cast grease-free

Article no: 1023212

Position16

Quantity in drawing4

1.560,00 DKK

excl. VAT

In stock

Yoke Bracket tilt cylinder EC209, EC214 cast grease-free

Article no: 1023212

(POS.17-18 incl.)

1.560,00 DKK

In stock

Tilt cylinder EC214 for overcenter 730269

Article no: 1041414

Position15

Quantity in drawing2

17.500,00 DKK

excl. VAT

Out of stock

Tilt cylinder EC214 for overcenter 730269

Article no: 1041414

17.500,00 DKK

Out of stock

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Position31

Quantity in drawing4

18,10 DKK

excl. VAT

Few in stock (5)

Spacer clamping half rubber EC206,209,214

Article no: 1016465

18,10 DKK

Few in stock (5)

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position9

Quantity in drawing18

78,50 DKK

excl. VAT

In stock

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Torque: 333Nm

78,50 DKK

In stock

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position39

Quantity in drawing2

267,20 DKK

excl. VAT

In stock

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

267,20 DKK

In stock

Screw MC6S 4x14 8.8 FZB ISO4762

Article no: 610420

Position11

Quantity in drawing1

7,80 DKK

excl. VAT

In stock

Screw MC6S 4x14 8.8 FZB ISO4762

Article no: 610420

For EC214S

7,80 DKK

In stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position40

Quantity in drawing8

7,80 DKK

excl. VAT

In stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

7,80 DKK

In stock

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Position3

Quantity in drawing1

137,90 DKK

excl. VAT

In stock

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Use as required

137,90 DKK

In stock

Tilt axial washer EC214, EC219

Article no: 1016417

Position4

Quantity in drawing1

922,40 DKK

excl. VAT

In stock

Tilt axial washer EC214, EC219

Article no: 1016417

922,40 DKK

In stock

Seal PAK-110x125x7-L

Article no: 1064201

Position1

Quantity in drawing1

71,60 DKK

excl. VAT

Few in stock (5)

Seal PAK-110x125x7-L

Article no: 1064201

Face groove toward top part

71,60 DKK

Few in stock (5)

Nut bulkhead adapter 1270-08

Article no: 710254

Position44

Quantity in drawing2

21,60 DKK

excl. VAT

In stock

Nut bulkhead adapter 1270-08

Article no: 710254

21,60 DKK

In stock

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position42

Quantity in drawing2

67,20 DKK

excl. VAT

In stock

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

67,20 DKK

In stock

Protection Plate tilt axle EC214/EC219

Article no: 1064717

Position13

Quantity in drawing1

310,30 DKK

excl. VAT

Few in stock (1)

Protection Plate tilt axle EC214/EC219

Article no: 1064717

For EC214/EC214PS Face the groove downwards

310,30 DKK

Few in stock (1)

Cover Tilt Axle EC214S/EC219S Cast

Article no: 1065799

Position12

Quantity in drawing1

1.233,00 DKK

excl. VAT

Few in stock (2)

Cover Tilt Axle EC214S/EC219S Cast

Article no: 1065799

For EC214S

1.233,00 DKK

Few in stock (2)

Tilt axle EC214S/EC219S

Article no: 1064196

Position8

Quantity in drawing2

3.560,00 DKK

excl. VAT

Few in stock (3)

Tilt axle EC214S/EC219S

Article no: 1064196

3.560,00 DKK

Few in stock (3)

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Position18

Quantity in drawing4

267,20 DKK

excl. VAT

In stock

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

267,20 DKK

In stock

Magnet spacer tilt axle EC214S/EC219S

Article no: 1064202

Position10

Quantity in drawing1

123,30 DKK

excl. VAT

Few in stock (5)

Magnet spacer tilt axle EC214S/EC219S

Article no: 1064202

For EC214S

123,30 DKK

Few in stock (5)

Hose Tilt Short - EC214

Article no: 743002

Position27

Quantity in drawing2

482,80 DKK

excl. VAT

Out of stock

Hose Tilt Short - EC214

Article no: 743002

482,80 DKK

Out of stock

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position38

Quantity in drawing4

2.793,00 DKK

excl. VAT

In stock

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 45Nm

2.793,00 DKK

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

Position47

Quantity in drawing2

21,60 DKK

excl. VAT

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

21,60 DKK

In stock

Hose bracket EC214-EC333 10x Hoses right

Article no: 1047138

Position22

Quantity in drawing1

612,10 DKK

excl. VAT

In stock

Hose bracket EC214-EC333 10x Hoses right

Article no: 1047138

612,10 DKK

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

Position49

Quantity in drawing2

69,00 DKK

excl. VAT

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

69,00 DKK

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

Position50

Quantity in drawing2

21,60 DKK

excl. VAT

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

21,60 DKK

In stock

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

Position34

Quantity in drawing4

612,10 DKK

excl. VAT

In stock

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

For option Shimmed Tilt cyl.

612,10 DKK

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position45

Quantity in drawing2

44,80 DKK

excl. VAT

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

44,80 DKK

In stock

Hose bracket EC214-EC333 10x Hoses left

Article no: 1047137

Position21

Quantity in drawing1

612,10 DKK

excl. VAT

In stock

Hose bracket EC214-EC333 10x Hoses left

Article no: 1047137

612,10 DKK

In stock

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Position36

Quantity in drawing4

87,10 DKK

excl. VAT

In stock

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Torque: 333Nm

87,10 DKK

In stock

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Position35

Quantity in drawing4

110,30 DKK

excl. VAT

In stock

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Torque: 333Nm

110,30 DKK

In stock

Spacer Hose Bracket 20mm

Article no: 1023777

Position20

Quantity in drawing4

241,40 DKK

excl. VAT

In stock

Spacer Hose Bracket 20mm

Article no: 1023777

241,40 DKK

In stock

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position14

Quantity in drawing6

12,10 DKK

excl. VAT

In stock

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

12,10 DKK

In stock

Plug Din 908 1/4"

Article no: 711505

Position24

Quantity in drawing2

21,60 DKK

excl. VAT

In stock

Plug Din 908 1/4"

Article no: 711505

21,60 DKK

In stock

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Position6

Quantity in drawing2

16,40 DKK

excl. VAT

In stock

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

16,40 DKK

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position7

Quantity in drawing4

7,80 DKK

excl. VAT

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

7,80 DKK

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position25

Quantity in drawing8

7,80 DKK

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

7,80 DKK

In stock

Slotted pin RPE5x20

Article no: 640413

Position29

Quantity in drawing2

12,10 DKK

excl. VAT

In stock

Slotted pin RPE5x20

Article no: 640413

12,10 DKK

In stock

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Position17

Quantity in drawing4

637,90 DKK

excl. VAT

Few in stock (2)

Bushing BWG-F 35/45/55/5x30

Article no: 631003

637,90 DKK

Few in stock (2)

Bushing tilt EC214/EC219 WB802/EB1 85/90x35

Article no: 630321

Position2

Quantity in drawing2

741,40 DKK

excl. VAT

In stock

Bushing tilt EC214/EC219 WB802/EB1 85/90x35

Article no: 630321

(Incl. in Top part)

741,40 DKK

In stock

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Position28

Quantity in drawing2

1.491,00 DKK

excl. VAT

Few in stock (5)

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

1.491,00 DKK

Few in stock (5)

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position26

Quantity in drawing8

22,40 DKK

excl. VAT

Few in stock (3)

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

22,40 DKK

Few in stock (3)

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position48

Quantity in drawing2

28,50 DKK

excl. VAT

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

28,50 DKK

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

Position46

Quantity in drawing2

95,70 DKK

excl. VAT

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

95,70 DKK

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position33

Quantity in drawing8

31,00 DKK

excl. VAT

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

31,00 DKK

In stock

Adapter bulkhead 1260-08-08

Article no: 710244

Position43

Quantity in drawing2

109,50 DKK

excl. VAT

Few in stock (2)

Adapter bulkhead 1260-08-08

Article no: 710244

109,50 DKK

Few in stock (2)

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position32

Quantity in drawing8

17,20 DKK

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

17,20 DKK

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position5

Quantity in drawing16

16,40 DKK

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

16,40 DKK

In stock
