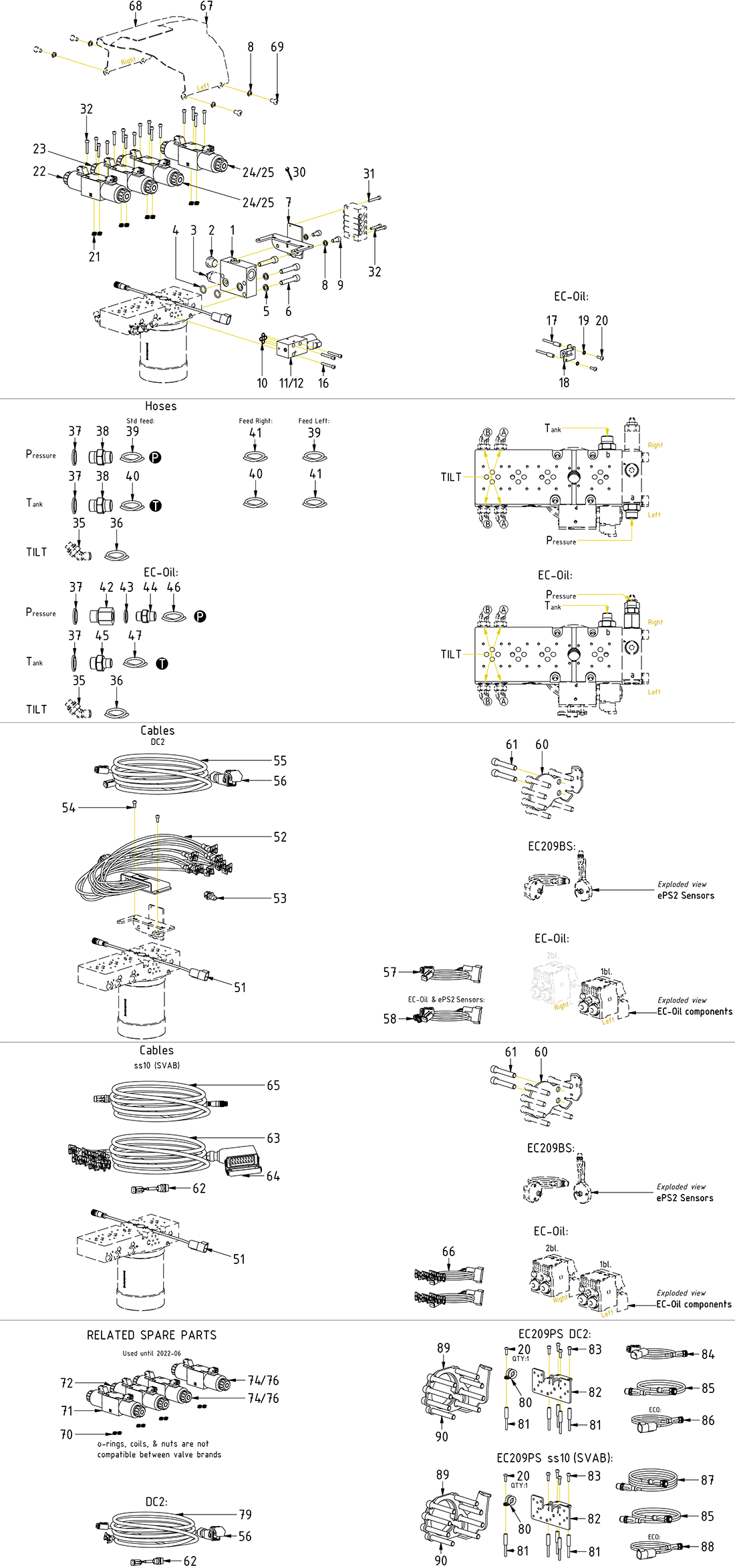

ss10 (DC2/SVAB)

Pos

Artikel

Ekstra info

Nummer på tegningen

Pris (ekskl. moms)

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position19

Nummer på tegningen2

Log ind for at se pris

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Log ind for at se pris

Protective cover valve block EC209/209B QSM

Article no: 1056632

Position67

Nummer på tegningen1

Log ind for at se pris

Protective cover valve block EC209/209B QSM

Article no: 1056632

Part of make up

Log ind for at se pris

Hose

Article no: 7001268

Position47

Nummer på tegningen1

Log ind for at se pris

Hose

Article no: 7001268

Log ind for at se pris

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

Position12

Nummer på tegningen1

Log ind for at se pris

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

(POS.10, 14, 15 incl.)

Log ind for at se pris

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Position69

Nummer på tegningen4

Log ind for at se pris

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Part of make up

Log ind for at se pris

Hose

Article no: 7001265

Position39

Nummer på tegningen1

Log ind for at se pris

Hose

Article no: 7001265

Log ind for at se pris

Rubber Steel Clamp Ø16

Article no: 6000009

Position80

Nummer på tegningen1

Log ind for at se pris

Rubber Steel Clamp Ø16

Article no: 6000009

Log ind for at se pris

Directional valve NG6 24V JT ATOS

Article no: 7001616

Position25

Nummer på tegningen2

Log ind for at se pris

Directional valve NG6 24V JT ATOS

Article no: 7001616

(POS.21, 28, 29 incl.)

Log ind for at se pris

Hose

Article no: 7001586

Position41

Nummer på tegningen1

Log ind for at se pris

Hose

Article no: 7001586

Feed Right: Use this for "P" Feed Left: Use this for "T"

Log ind for at se pris

Valve-Pressure reducer-SP4A-B3 EC209

Article no: 730288

Position3

Nummer på tegningen1

Log ind for at se pris

Valve-Pressure reducer-SP4A-B3 EC209

Article no: 730288

Log ind for at se pris

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position60

Nummer på tegningen1

Log ind for at se pris

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Log ind for at se pris

Coil 24V NG6 JT on/off

Article no: 730118

Position77

Nummer på tegningen4

Log ind for at se pris

Coil 24V NG6 JT on/off

Article no: 730118

Used with POS.76

Log ind for at se pris

Jumper JT 2P POS:1-2

Article no: 1018662

Position53

Nummer på tegningen1

Log ind for at se pris

Jumper JT 2P POS:1-2

Article no: 1018662

Plug JT connector "1"

Log ind for at se pris

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position32

Nummer på tegningen18

Log ind for at se pris

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Log ind for at se pris

Screw Valve Distance 5x39

Article no: 1047243

Position17

Nummer på tegningen2

Log ind for at se pris

Screw Valve Distance 5x39

Article no: 1047243

Torque: 9,7Nm

Log ind for at se pris

Hose

Article no: 7001266

Position40

Nummer på tegningen1

Log ind for at se pris

Hose

Article no: 7001266

Log ind for at se pris

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position56

Nummer på tegningen1

Log ind for at se pris

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

Log ind for at se pris

Connection block P with pressure reducer QSM45/50

Article no: 1055945

Position1

Nummer på tegningen1

Log ind for at se pris

Connection block P with pressure reducer QSM45/50

Article no: 1055945

(POS.2-3 incl.)

Log ind for at se pris

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position66

Nummer på tegningen2

Log ind for at se pris

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For ECO45. Instead of POS.62-65

Log ind for at se pris

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position65

Nummer på tegningen1

Log ind for at se pris

Adapter cable M12 8P-DTM 6S

Article no: 842148

Log ind for at se pris

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position83

Nummer på tegningen4

Log ind for at se pris

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Log ind for at se pris

Adapter 235-08-06

Article no: 7000705

Position42

Nummer på tegningen1

Log ind for at se pris

Adapter 235-08-06

Article no: 7000705

Log ind for at se pris

Attachment central lubrication & DC2-QSM45/50

Article no: 1055574

Position7

Nummer på tegningen1

Log ind for at se pris

Attachment central lubrication & DC2-QSM45/50

Article no: 1055574

Log ind for at se pris

Coil 12V NG6 prop JT

Article no: 730192

Position73

Nummer på tegningen4

Log ind for at se pris

Coil 12V NG6 prop JT

Article no: 730192

Used with POS.71-72

Log ind for at se pris

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position20

Nummer på tegningen2

Log ind for at se pris

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

Log ind for at se pris

Protection plug for DTM06-6S

Article no: 8000090

Position59

Nummer på tegningen1

Log ind for at se pris

Protection plug for DTM06-6S

Article no: 8000090

Log ind for at se pris

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

Position22

Nummer på tegningen1

Log ind for at se pris

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

(POS.21, 26, 29 incl.)

Log ind for at se pris

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position64

Nummer på tegningen1

Log ind for at se pris

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

(Incl. with agg.cable)

Log ind for at se pris

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

Position71

Nummer på tegningen1

Log ind for at se pris

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

Replaced by POS.22 (ATOS)

Log ind for at se pris

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Position79

Nummer på tegningen1

Log ind for at se pris

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Replaced by POS.55 from 2020-12

Log ind for at se pris

Adapter 136-06-06

Article no: 710106

Position44

Nummer på tegningen1

Log ind for at se pris

Adapter 136-06-06

Article no: 710106

Log ind for at se pris

Hose

Article no: 7001267

Position46

Nummer på tegningen1

Log ind for at se pris

Hose

Article no: 7001267

Log ind for at se pris

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

Position88

Nummer på tegningen1

Log ind for at se pris

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

For ECO w. ePS. Instead of POS.87

Log ind for at se pris

Adapter cable DTM 6P-M12 5S

Article no: 8002459

Position86

Nummer på tegningen1

Log ind for at se pris

Adapter cable DTM 6P-M12 5S

Article no: 8002459

For EC-Oil w. ePS NB! Only compatible with 8002477

Log ind for at se pris

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position90

Nummer på tegningen8

Log ind for at se pris

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Torque: 136Nm

Log ind for at se pris

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position16

Nummer på tegningen3

Log ind for at se pris

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm. QTY: 1 when EC-Oil

Log ind for at se pris

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position62

Nummer på tegningen1

Log ind for at se pris

Adapter cable JT 2P-DT 2S

Article no: 1017478

(Previously also for DC2)

Log ind for at se pris

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

Position24

Nummer på tegningen2

Log ind for at se pris

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

(POS.21, 27, 29 incl.)

Log ind for at se pris

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Position27

Nummer på tegningen4

Log ind for at se pris

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Log ind for at se pris

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

Position55

Nummer på tegningen1

Log ind for at se pris

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

Log ind for at se pris

Adapter 136-08-08

Article no: 710108

Position38

Nummer på tegningen2

Log ind for at se pris

Adapter 136-08-08

Article no: 710108

Log ind for at se pris

Nut directional valve ATOS

Article no: 7001887

Position29

Nummer på tegningen8

Log ind for at se pris

Nut directional valve ATOS

Article no: 7001887

Log ind for at se pris

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position13

Nummer på tegningen1

Log ind for at se pris

Coil NG4 IQS lock 12V DT

Article no: 1042065

Log ind for at se pris

Coil NG4 IQS lock 24V DT

Article no: 1042066

Position14

Nummer på tegningen1

Log ind for at se pris

Coil NG4 IQS lock 24V DT

Article no: 1042066

Log ind for at se pris

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position72

Nummer på tegningen1

Log ind for at se pris

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Replaced by POS.23 (ATOS)

Log ind for at se pris

Mounting plate-ePS-Tilt sensor-EC209 QSM45

Article no: 1057538

Position82

Nummer på tegningen1

Log ind for at se pris

Mounting plate-ePS-Tilt sensor-EC209 QSM45

Article no: 1057538

Log ind for at se pris

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position81

Nummer på tegningen5

Log ind for at se pris

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Log ind for at se pris

Mounting plate-1x Deutsch NG4

Article no: 1058235

Position18

Nummer på tegningen1

Log ind for at se pris

Mounting plate-1x Deutsch NG4

Article no: 1058235

Log ind for at se pris

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position11

Nummer på tegningen1

Log ind for at se pris

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

(POS.10, 13, 15 incl.)

Log ind for at se pris

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position54

Nummer på tegningen2

Log ind for at se pris

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Log ind for at se pris

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position31

Nummer på tegningen1

Log ind for at se pris

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Log ind for at se pris

Hose Tilt Long

Article no: 7001308

Position36

Nummer på tegningen4

Log ind for at se pris

Hose Tilt Long

Article no: 7001308

Log ind for at se pris

Coil 12V NG6 prop JT ATOS

Article no: 7001734

Position26

Nummer på tegningen4

Log ind for at se pris

Coil 12V NG6 prop JT ATOS

Article no: 7001734

Log ind for at se pris

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Position28

Nummer på tegningen4

Log ind for at se pris

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Log ind for at se pris

Directional valve NG6 24V

Article no: 730103

Position76

Nummer på tegningen2

Log ind for at se pris

Directional valve NG6 24V

Article no: 730103

Replaced by POS.25 (ATOS)

Log ind for at se pris

Nut directional valve Argo Hytos

Article no: 730135

Position78

Nummer på tegningen8

Log ind for at se pris

Nut directional valve Argo Hytos

Article no: 730135

Log ind for at se pris

Coil 12V NG6 JT on/off

Article no: 730117

Position75

Nummer på tegningen4

Log ind for at se pris

Coil 12V NG6 JT on/off

Article no: 730117

Used with POS.74

Log ind for at se pris

Adapter 135-06-08

Article no: 710122

Position45

Nummer på tegningen1

Log ind for at se pris

Adapter 135-06-08

Article no: 710122

Log ind for at se pris

Protective cover valve block EC209/209B QSM - Lip

Article no: 1056633

Position68

Nummer på tegningen1

Log ind for at se pris

Protective cover valve block EC209/209B QSM - Lip

Article no: 1056633

Part of make up

Log ind for at se pris

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

Position4

Nummer på tegningen2

Log ind for at se pris

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

Log ind for at se pris

Screw MC6S 8x16H 12.9 untreated ISO4762

Article no: 610431

Position9

Nummer på tegningen2

Log ind for at se pris

Screw MC6S 8x16H 12.9 untreated ISO4762

Article no: 610431

Log ind for at se pris

Nut bulkhead adapter 1270-04

Article no: 710250

Position15

Nummer på tegningen1

Log ind for at se pris

Nut bulkhead adapter 1270-04

Article no: 710250

Log ind for at se pris

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position23

Nummer på tegningen1

Log ind for at se pris

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

(POS.21, 26, 29 incl.)

Log ind for at se pris

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position74

Nummer på tegningen2

Log ind for at se pris

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Replaced by POS.24 (ATOS)

Log ind for at se pris

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

Position63

Nummer på tegningen1

Log ind for at se pris

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

Log ind for at se pris

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position10

Nummer på tegningen4

Log ind for at se pris

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Log ind for at se pris

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position61

Nummer på tegningen8

Log ind for at se pris

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Torque: 136Nm

Log ind for at se pris

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position5

Nummer på tegningen3

Log ind for at se pris

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Log ind for at se pris

Plug VSTIR12ED 1/2"

Article no: 711500

Position2

Nummer på tegningen1

Log ind for at se pris

Plug VSTIR12ED 1/2"

Article no: 711500

Opposite side for EC-Oil

Log ind for at se pris

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position6

Nummer på tegningen3

Log ind for at se pris

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

Log ind for at se pris

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position8

Nummer på tegningen6

Log ind for at se pris

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of make up

Log ind for at se pris

Seal washer GBR08 1/2"

Article no: 710704

Position37

Nummer på tegningen3

Log ind for at se pris

Seal washer GBR08 1/2"

Article no: 710704

Log ind for at se pris

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Position52

Nummer på tegningen1

Log ind for at se pris

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Log ind for at se pris

Seal washer GBR06 3/8"

Article no: 710703

Position43

Nummer på tegningen1

Log ind for at se pris

Seal washer GBR06 3/8"

Article no: 710703

Log ind for at se pris

Adapter 402-04-04 45°

Article no: 7000104

Position35

Nummer på tegningen4

Log ind for at se pris

Adapter 402-04-04 45°

Article no: 7000104

Part of quick hitch assy.

Log ind for at se pris

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position70

Nummer på tegningen16

Log ind for at se pris

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Used until 2022-06

Log ind for at se pris

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Position84

Nummer på tegningen1

Log ind for at se pris

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Log ind for at se pris

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Position87

Nummer på tegningen1

Log ind for at se pris

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Log ind for at se pris

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Position85

Nummer på tegningen1

Log ind for at se pris

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Log ind for at se pris

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position89

Nummer på tegningen1

Log ind for at se pris

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Log ind for at se pris

Branch cable CAN DTM-DT/M12-ECO W ePS EC209B-EC233

Article no: 8001847

Position58

Nummer på tegningen1

Log ind for at se pris

Branch cable CAN DTM-DT/M12-ECO W ePS EC209B-EC233

Article no: 8001847

For EC-Oil & ePS2 Sensors Instead of agg.cable

Log ind for at se pris

Adapter cable DTM 12P-DT 4S/2S

Article no: 1048529

Position57

Nummer på tegningen1

Log ind for at se pris

Adapter cable DTM 12P-DT 4S/2S

Article no: 1048529

For EC-Oil. Instead of agg.cable

Log ind for at se pris

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position21

Nummer på tegningen16

Log ind for at se pris

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Log ind for at se pris
