Components

Electrical kits

Pos

Artikel

Ekstra info

Nummer på tegningen

Pris (ekskl. moms)

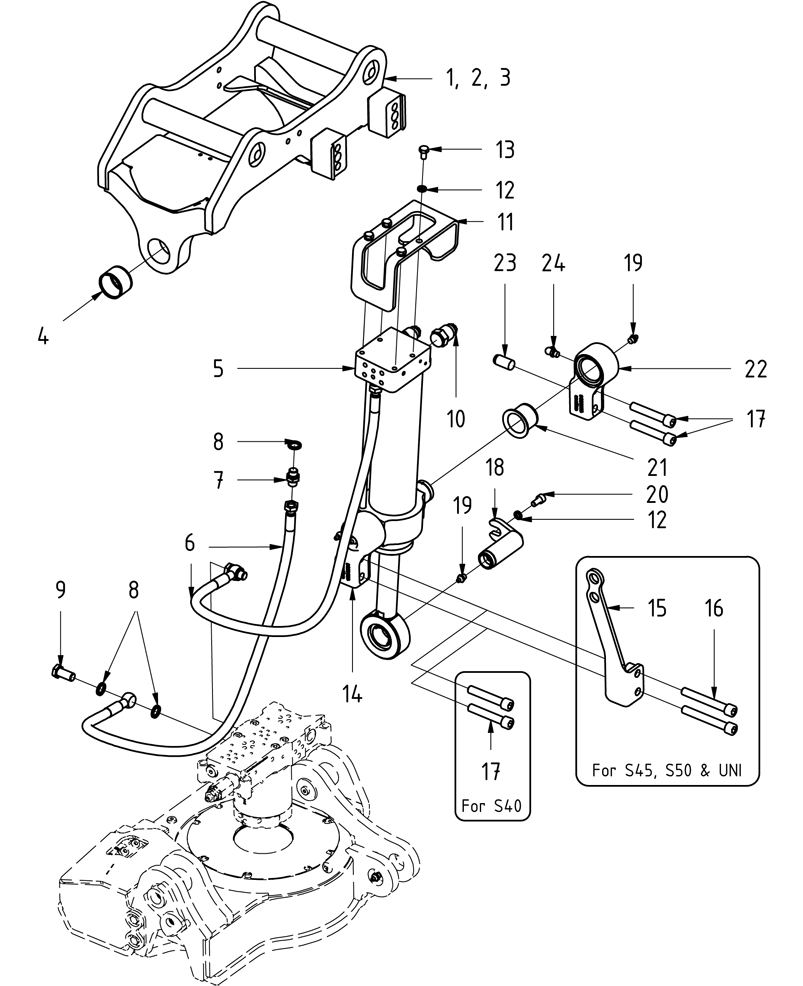

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position11

Nummer på tegningen1

Log in to see price

11

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

-

1

Log in to see price

Screw M6S 8x14 8.8 FZB ISO4017

Article no: 610188

Position13

Nummer på tegningen4

Log in to see price

13

Screw M6S 8x14 8.8 FZB ISO4017

Article no: 610188

-

4

Log in to see price

Yoke Bracket EC05B front complete cast

Article no: 1004131K

Position14

Nummer på tegningen1

Log in to see price

14

Yoke Bracket EC05B front complete cast

Article no: 1004131K

-

1

Log in to see price

Yoke Bracket EC05B rear complete cast

Article no: 1003904K

Position22

Nummer på tegningen1

Log in to see price

22

Yoke Bracket EC05B rear complete cast

Article no: 1003904K

-

1

Log in to see price

Cylindrical pin CPK Ø16x36 m6

Article no: 650215

Position23

Nummer på tegningen2

Log in to see price

23

Cylindrical pin CPK Ø16x36 m6

Article no: 650215

-

2

Log in to see price

Lubrication nipple M8 x1,25 90°

Article no: 711402

Position24

Nummer på tegningen2

Log in to see price

24

Lubrication nipple M8 x1,25 90°

Article no: 711402

-

2

Log in to see price

Top part S40 EC05B

Article no: 1002844

Position1

Nummer på tegningen1

Log in to see price

1

Top part S40 EC05B

Article no: 1002844

-

1

Log in to see price

Tilt cylinder EC05B for overcenter

Article no: 1001840

Position5

Nummer på tegningen1

Log in to see price

5

Tilt cylinder EC05B for overcenter

Article no: 1001840

See subheading Tilt cylinders for exploded view

1

Log in to see price

Bushing WB802 35/39/50x35WF

Article no: 630402

Position21

Nummer på tegningen2

Log in to see price

21

Bushing WB802 35/39/50x35WF

Article no: 630402

-

2

Log in to see price

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Position20

Nummer på tegningen1

Log in to see price

20

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

-

1

Log in to see price

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position7

Nummer på tegningen2

Log in to see price

7

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

-

2

Log in to see price

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position10

Nummer på tegningen2

Log in to see price

10

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

-

2

Log in to see price

Lubrication nipple 1/8 straight

Article no: 711403

Position19

Nummer på tegningen3

Log in to see price

19

Lubrication nipple 1/8 straight

Article no: 711403

-

3

Log in to see price

Bushing tilt EC05 WB802 40/44x30

Article no: 630307

Position4

Nummer på tegningen2

Log in to see price

4

Bushing tilt EC05 WB802 40/44x30

Article no: 630307

-

2

Log in to see price

Cylinder axle EC05, EC10, EC15 hardened

Article no: 404276

Position18

Nummer på tegningen1

Log in to see price

18

Cylinder axle EC05, EC10, EC15 hardened

Article no: 404276

(POS. 19 included)

1

Log in to see price

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position12

Nummer på tegningen5

Log in to see price

12

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

-

5

Log in to see price

Banjo bolt 4451-04

Article no: 710271

Position9

Nummer på tegningen2

Log in to see price

9

Banjo bolt 4451-04

Article no: 710271

-

2

Log in to see price

Seal washer GBR04 1/4"

Article no: 710702

Position8

Nummer på tegningen6

Log in to see price

8

Seal washer GBR04 1/4"

Article no: 710702

-

6

Log in to see price

Prices excl. VAT
